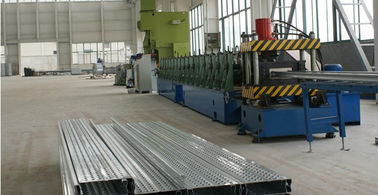

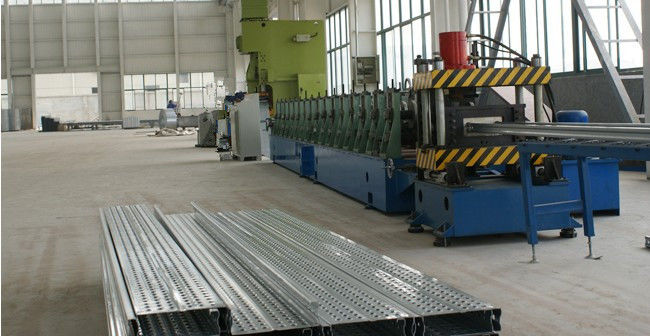

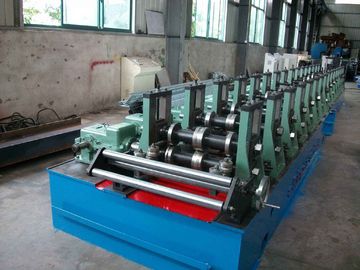

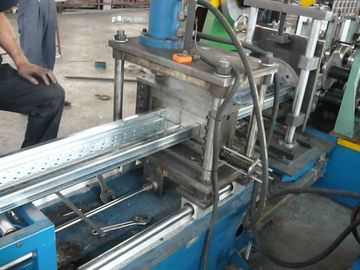

15KW Foot Plate Roll Forming Machine Custom Requirements Acceptable

15KW Foot Plate Roll Forming Machine Custom Requirements Acceptable

    • 15KW Foot Plate Roll Forming Machine Custom Requirements Acceptable
    • 15KW Foot Plate Roll Forming Machine Custom Requirements Acceptable
    • 15KW Foot Plate Roll Forming Machine Custom Requirements Acceptable
    • 15KW Foot Plate Roll Forming Machine Custom Requirements Acceptable

    Product Details:

    Place of Origin: Wuxi, China
    Brand Name: Beli
    Certification: CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: USD 38000-40000 / set
    Packaging Details: Nude Packing (roller surface covered plastic film)
    Delivery Time: 45 days
    Payment Terms: T/T, L/C
    Supply Ability: 20 sets/ Month
    Contact Now
    Detailed Product Description
    After-sales Service: Engineers Available To Service Machinery Overseas Warranty: 18 Months
    Voltage: 380V, 3 Phase, 50Hz Type: Cold Rolling Machine
    Condition: New
    High Light:

    roll forming machine

    ,

    roll forming equipment

    Foot Plate Roll Forming Machine





    Description:



    According to specific requirements of customers, we can manufacture foot plate roll forming machines with different specifications. Main components of this machine include decoiler, roll former, cutter, hydraulic pump station, product table, and control cabinet, etc.


    Technical Parameters
    Raw Material Carbon Steel, Galvanized Steel, Q235
    Material Thickness 1.5-2.0mm
    Material Width Depend on specific profile
    Diameter of Shaft 76mm
    Material of Shaft 45# steel
    Material of Rolls

    GCr15 Over quenching HRC 58-62°
    Main Power 15KW
    Forming Speed 15-20m/min
    Forming Station 20 stations
    Cutting Type Hydraulic cutting
    Cutting Blade

    Cr12 Mov





































    Tag:

    roll forming equipment,

    roll forming machine,

    custom roll former
