| Place of Origin: | Wuxi, China |
| Brand Name: | Beli |
| Certification: | CE |
| Model Number: | Roll Forming Machine |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD 18000-25000 / set |
| Packaging Details: | Nude Packing (roller surface covered plastic film) |
| Delivery Time: | 45 to 50 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 20 sets/ Month |
| After-sales Service: | Engineers Available To Service Machinery Overseas | Warranty: | 18 Months |
|---|---|---|---|
| Voltage: | 380V, 3 Phase, 50Hz | Type: | Cold Roll Forming Machine |
| Condition: | New | ||
| High Light: | metal roofing roll former,profile roll forming machine |
||

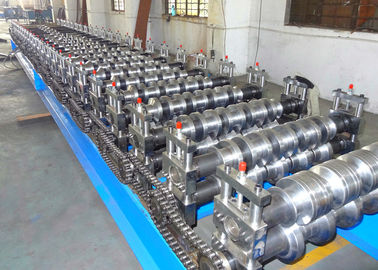

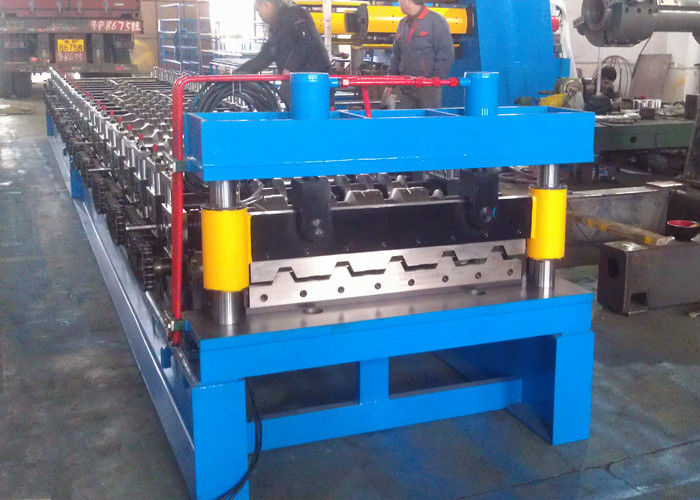

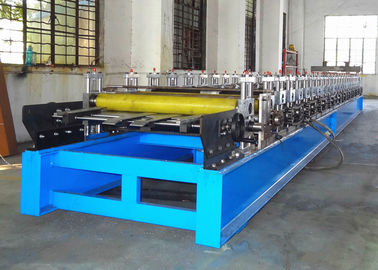

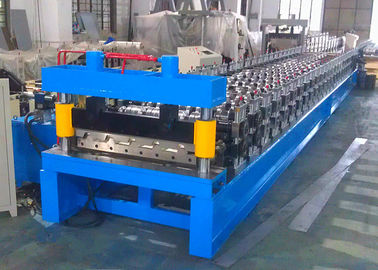

IBR Roofing Sheeting Roll Forming Machine is for producing IBR roofing sheeting which is widely used in South Africa.
Since it was first introduced to South Africa in 1958, IBR has enjoyed great popularity for use as side cladding or roofing material in commercial, industrial and residential buildings. IBR got its name from the abbreviation of “Inverted Box Rib”, which has become a household name in the South African building industry. Actually, IBR is a square fluted profile with an effective covering width of 686 mm or 890mm.
Believe Industry Company have several design of IBR Sheeting Machine for different requirements.
Profile Drawings of IBR Roofing Sheeting
Production Process: Uncoiling-- Feeding-- Roll Forming-- Cutting-- Collecting
Brief Specifications of IBR Sheeting Machine
| No. | Item | Technical Specifications |
| 1. | Applicable Material | Carbon Steel Coils, GI Coils, PPGI Coils |
| 2. | Material Thickness | 0.3-0.8mm |
| 3. | Material Width | Depend on specific profile |
| 4. | Diameter of Shaft | 76mm |
| 5. | Material of Shaft | 40Cr sold shafts, with heat treatment for great strength |
| 6. | Material of Rollers | No.45 steel go under heat treatment and with chrome plated |
| 7. | Main Power | 7.5KW |
| 8. | Forming Speed | 15-20m/min |
| 9. |
Forming Stations |
12-24 stations |
| 10. | Cutting Type | Hydraulic cutting, stop cutting |
| 11. | Material of Cutting Blade | Cr12 Mov, HRC58-62 |
686 IBR Roofing Sheet For Reference
