Place of Origin: | CHINA |
Brand Name: | BELI |
Certification: | CE |
Model Number: | BELIEVE INDUSTRY |
Minimum Order Quantity: | 1 |
---|---|
Price: | USD 28,000 to 35,000 per set |
Packaging Details: | Main machine part nude packing, PLC control system and hydraulic control system are wrapped with plastic film. |
Delivery Time: | 45 to 50 days |
Payment Terms: | T/T, L/C |
Supply Ability: | 50 sets per month |
Other Name: | Metal Roll Forming Machine With Double Layer | Application: | Can Producing 2 Roofing Profiles |
---|---|---|---|
Machine Features: | Save Floor Area, Save Cost | Control System: | PLC Control System |
Drive Motion: | Chain Drive | Power Supply: | 380V, 50Hz, 3Phase |
High Light: | roofing sheet roll forming machine,profile roll forming machine |

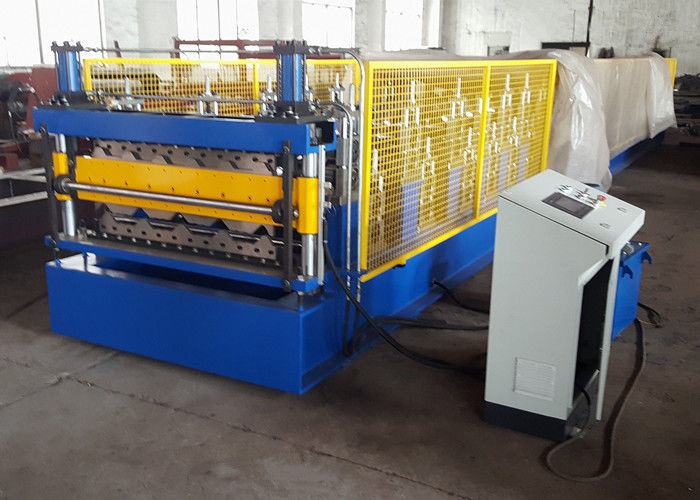

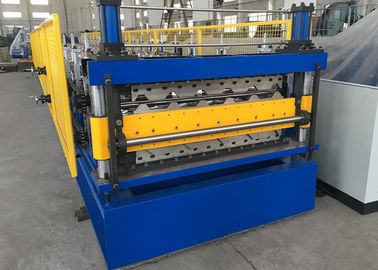

Double Layer Roll Forming Machine For Metal Roofing Sheets
Brief Description
This steel roofing sheet roll forming machine is delivery to Portuguesa. Adopting high quality steel base frame and thick wall panel type structure, this machine enjoys the advantages of great strength and stability. The safty protective cover ensures the safty when operating. We use electrical parts all from famous brands such as Siemens, Panasonic, Schneider, etc.
Machine Design | Rollformer Up Layer | Rollformer Down Layer |
Design A | Trapezoidal Roofing Profile A | Trapezoidal Roofing Profile B |
Design B | Trapezoidal Roofing Profile | Corrugated Roofing Profile |
Design C | Corrugated Roofing Profile A | Corrugated Roofing Profile B |
Design D | Tile Shape Roofing Profile | Trapezoidal Roofing Profile |
Design E | Tile Shape Roofing Profile | Corrugated Roofing Profile |
Advantages Of Double Layer Roofing Roll Forming Machine
Machine up layer and down layer share the same machine base, electric motor, hydraulic station. As usual, one single layer roof/wall cladding roll forming machine may cost about USD20,000 while one double layer roll forming machine usually cost USD30,000.
Generally, main roll forming machine are 8 to 10 meters in length and whole line is approx 12m to 15m in length including uncoiler and receiving tables. Some of our customers are small factories with limited flooring area, thus such a double layer machine is a good choice.
Machine Components And Whole Line Layout
No. | Main Machine Components | Quantity | |
1. | 5Ton Hydraulic Decoiler | 1 set | |
2. | Roll Forming Mill | Feeding Guide | 2 layers for producing 2 roofing profiles |

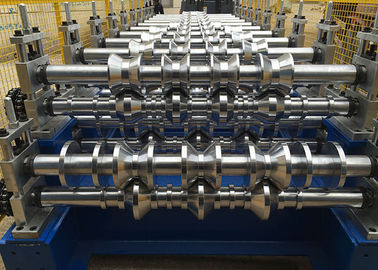

Roll Forming Unit | |||
Hydraulic Cutting Device | |||
3. | Product Output Support Tables | 2 sets | |
4. | PLC Control System | 1 set | |
5. | Hydraulic System | 1 set |
Work Process
Uncoiling--->feeding and guiding-->roll forming--->cutting--->final products
Main Technical Parameters Of Double Layer Roofing Machine
1. Applicable Material: GI coils, Gl coils, PPGI coils, PPGL coils
2. Material Thickness: 0.3-0.7mm
3. Main Motor Power: 7.5kw
4. Up Layer Forming Stations: 20 stations (final design will depend on profiles and material users require)
5. Down Layer Forming Stations: 20 stations
6. Forming Speed: 10-15/min
7. Hydraulic Power: 4kw for cutting
Believe Industry Company is professional in cold roll forming machine designing and manufacturing. We use advanced German roller design software COPRA to assist in machine designing. We keep improving our technology to offer our customers with best roll forming machine solutions.
Contact Person: Mr. Darren Mao
Tel: +86 186 16927760
Fax: 86-510-8827-9556
