Corrugated Metal Roof Roll Forming Machine For 914mm 1000mm Width Material

Corrugated Metal Roof Roll Forming Machine For 914mm 1000mm Width Material

    • Corrugated Metal Roof Roll Forming Machine For 914mm 1000mm Width Material
    • Corrugated Metal Roof Roll Forming Machine For 914mm 1000mm Width Material
    • Corrugated Metal Roof Roll Forming Machine For 914mm 1000mm Width Material
    • Corrugated Metal Roof Roll Forming Machine For 914mm 1000mm Width Material
    • Corrugated Metal Roof Roll Forming Machine For 914mm 1000mm Width Material
  • Corrugated Metal Roof Roll Forming Machine For 914mm 1000mm Width Material

    Product Details:

    Place of Origin: CHINA
    Brand Name: Believe Industry Company
    Certification: CE
    Model Number: BELI-ROOF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Packaging Details: Main roll forming machine nude packing, electric and hydraulic system wrapped with plastic flim
    Delivery Time: 45 to 50 days
    Payment Terms: T/T, L/C
    Supply Ability: 20 sets/ Month
    Contact Now
    Detailed Product Description
    Material Width: 1250mm, 1000mm, 914mm Material Strength: G550 Material
    Motor Power: 7.5kw Forming Steps: 22 Steps
    Drive Motion: Via Chain And Sprocket Power Supply: 380V 50Hz 3Phase; 415V 50Hz 3Phase
    High Light:

    roofing sheet roll forming machine

    ,

    profile roll forming machine



    Metal Corrugated Sheet Rollforming Machine With 914mm 1000mm Material Width



      Description

    This roll forming machine is made to produce corrugated sheets with 18mm height, 76mm/76.2mm pitch distance and 836/838 cover width. Main material can be roll formed are 0.2mm to 0.4mm high strength galvanized steel coils and 0.3mm to 0.7mm mild steel coils.

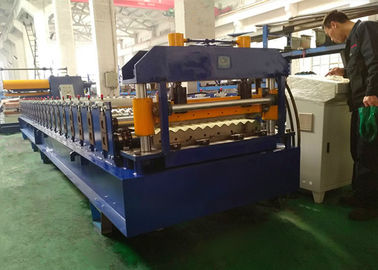

    Corrugated Metal Roof Roll Forming Machine For 914mm 1000mm Width Material



    With 1000mm feeding width, cover width of formed corrugate sheet is 836mm. With 914mm feeding width, cover width of final product is 762mm. Users no need to adjust the rollers for different material widths, only to adjust the enter guiding device to avoid deviation.





      Main Components Of Corrugated Sheet Rollforming Machine

    No.  Main Machine Parts  Description
    1.  5Ton Manually Uncoiler  Manually inner expansion, unpowered unwinding
    2.  Feeding and Guiding Device  Avoid material deviation when entering into the rollformer
    3.  Main Rollforming Unit  Electrically driven via chain and sprocket
    4.  Hydraulic Cutting Device  Hydraulically powered cutting, stop-cutting type
    5.  Final Product Receiving Tables  Unpowered receiving tables, roller-conveyor type
    6.  Electric Control System  Panasonic PLC control system
    7.  Hydraulic Station  Famous local brand



    Corrugated Metal Roof Roll Forming Machine For 914mm 1000mm Width Material



    Work Flow:

    1. Line Direction: left-->right

    2. Work Process: decoiling-->guiding-->roll forming-->cutting-->running out





    Main Technical Parameters

    1. Materials: Galvanized steel coils, PPGI coils, Color Steel Coils

    2. Material thickness: 0.2-0.7mm

    3. Main motor power: 5.5KW7.5KW

    4. Forming stations: 18 stations to 22 stations

    5. Forming speed: 10-15m/min

    6. Shaft material: 40Cr with 76mm in diameter, solid shafts with heat treatment and chrome plated

    7. Roller material: No.45 steel, heat treatment with chrome plated of 0.05mm thickness

    8. Hydraulic power: 4KW

    9. Cutting blade material: Cr12Mov





    BELIEVE INDUSTRY COMPANY manufacture rollformers for various roofing profiles:

    • Trapezoidal roofing profile
    • Deep corrugated profile
    • Tile-shape roof profile
    • Concealed fix roofing profile
    • Roof ridge caps
    • Metal valley
    • Customized profiles
