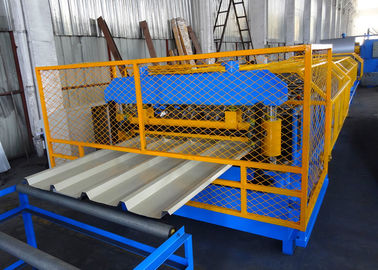

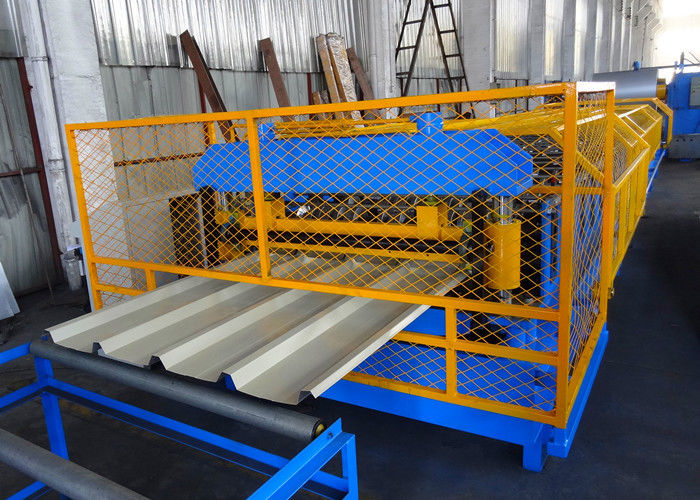

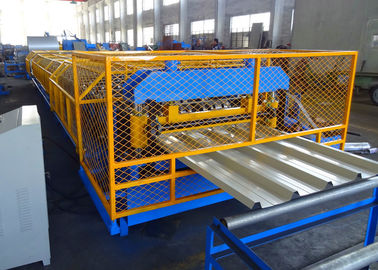

Trapezoidal Profile Metal Roof Roll Forming Machine 15 - 20 M/Min High Speed Type

Trapezoidal Profile Metal Roof Roll Forming Machine 15 - 20 M/Min High Speed Type

    • Trapezoidal Profile Metal Roof Roll Forming Machine 15 - 20 M/Min High Speed Type
    • Trapezoidal Profile Metal Roof Roll Forming Machine 15 - 20 M/Min High Speed Type
    • Trapezoidal Profile Metal Roof Roll Forming Machine 15 - 20 M/Min High Speed Type
    • Trapezoidal Profile Metal Roof Roll Forming Machine 15 - 20 M/Min High Speed Type
  • Trapezoidal Profile Metal Roof Roll Forming Machine 15 - 20 M/Min High Speed Type

    Product Details:

    Place of Origin: CHINA
    Brand Name: Believe Industry Company
    Certification: CE
    Model Number: BELI-762

    Payment & Shipping Terms:

    Packaging Details: Nude Packing (roller surface covered plastic film)
    Delivery Time: 50 to 60 days
    Payment Terms: T/T, L/C
    Supply Ability: 20 sets per month
    Contact Now
    Detailed Product Description
    Machine Name: Metal Roofing Sheet Manufacturing Machinery Applicable Material: GI Coils, PPGI Coils
    Material Thickness: 0.3mm To 0.7mm Machine Speed: 15-20m/min
    Power Supply: 380V / 50Hz / 3Phase Machine Warranty: 24 Months
    High Light:

    metal roofing roll former

    ,

    profile roll forming machine

    Trapezoidal Profile Metal Roofing Roll Forming Machine to Portuguesa


      Brief Description

    Used to produce metal roofing sheets with trapezoidal profiles as required, also known as box profile rollformer. Material can be roll formed are 0.3mm to 0.7mm thick galvanized steel coils with width of 1040mm.


    Machine Features

    • Machine Base: H beam steel welded machine base
    • Roller Stand: high grade steel plate welded on the machine base to form a integrate machine structure
    • Drive: chain drive
    • Protective cover: main roll forming part and cutting part are covered with safety protective mesh
    • Operate language on touch screen: English and Portuguese as required



      Components And Layout  Of Trapezoidal Sheet Rollforming Line

    No.  Main Parts Description Quantity

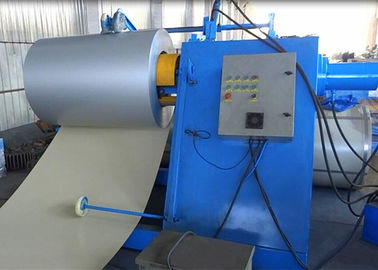

    1.  5Ton Hydraulic Decoiler single mandrel decoiler with press arm 1 unit

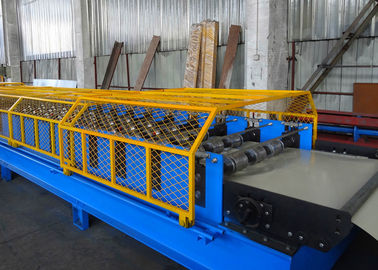

    2.  Roll Forming Mill with chain drive system 1 unit
    3.  Product Support Table 6m unpowered receiving table 1 unit
    4.  Electric Control Cabinet Panasonic PLC 1 unit
    5.  Hydraulic Station one for uncoiler, one for cutting device 2 units



    Trapezoidal Profile Metal Roof Roll Forming Machine 15 - 20 M/Min High Speed Type



    Work Flow: coils unwinding-->material infeeding-->guiding-->roll forming-->cutting-->end product





      Machine Specifications

    1. Roller Stations: 21 stations

    2. Forming Power: 7.5kw

    3. Forming Speed: 15-20m/min not including cutting

    4. Hydraulic Power: 4kw

    5. Rolling Transmission: electric driven, speed controlled by inverter

    6. Cutting: hydraulic

    7. Cutting Length Tolerance: ±2mm / 6m

    8. Machine Weight: 8.0-10.0tons depends on roofing profiles

    9. Machine Dimensions: 10m * 2.0m * 1.5m (Length * Width * Height)





      Profile Drawing Of The Trapezoidal Sheet

    Trapezoidal Profile Metal Roof Roll Forming Machine 15 - 20 M/Min High Speed Type

    Trapezoidal Profile Metal Roof Roll Forming Machine 15 - 20 M/Min High Speed Type
