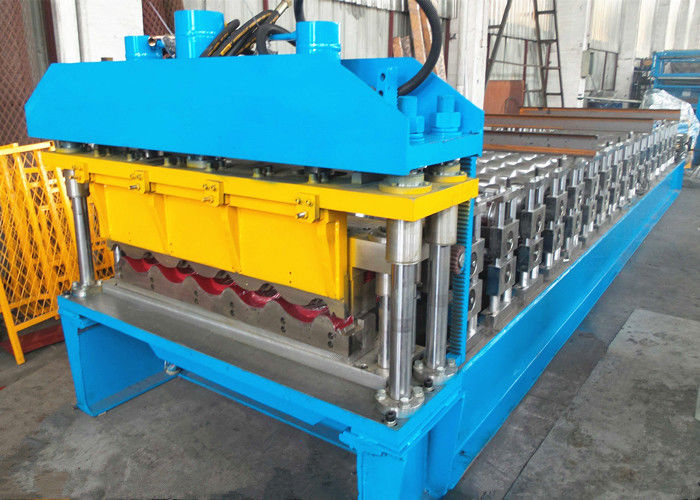

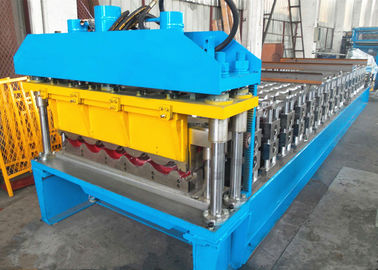

Metal Roof Tile CNC Roll Forming Machine For 0.3 - 0.8mm Thickness Coils

Metal Roof Tile CNC Roll Forming Machine For 0.3-0.8mm Thickness

  Description

Used to producing metal tile shape roof cladding panels, this roof tile roll forming line is highly automatic combining cold roll forming, punching press, cutting and automatic control technology together. Whole line speed can reach up to 6-8m/min.

Controlled by PLC control system, this machine is of high automation and easy operation. Only 1 or 2 workers can well take responsibility for the whole production line. Users only need to input production quantity, cutting length and other required data on the touch screen, then the machine will start to work automatically.

Whole Line Work Process and Main Components

Coil loading on the decoiler--coil unwinding--entering into the feeding guide--roll forming to required profile--pressing tile steps--cutting to desired length--final product output

  Machine Advantages

• High Automation With Easy Operation
• High Quality Of Final Product

Be accordance with the dimensional requirement of profile drawing clients' offered; exact accuracy of cutting length; good quality of finished product surface as required.

• Improved Design of Punching and Cutting Device

Integrated design of punching and cutting unit replaces former design of two separated parts. Improved machine design with compact conformation looks more simple and elegent. With the reduction of whole machine length, floor area occupying is reduced.

• Strong Structure With Long Lifetime

Strict quality on every procedure of manufacturing from raw material selecting, processing and machine testing. Machine manifacturing conform to national standard of cold roll forming industry.

  Material Information and Technical Specifications

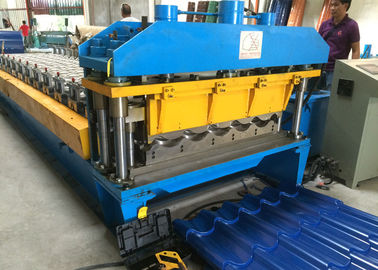

  Profile Drawing and End Product Sample
