| Place of Origin: | CHINA |
| Brand Name: | BELIEVE INDUSTRY |
| Certification: | CE |
| Model Number: | BELI-MR1000 |
| Packaging Details: | Nude packing and fastened inside of the container. Electric and hydraulic parts are wrapped with plastic film. |
|---|---|
| Delivery Time: | 55 to 60 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50 sets per month |
| Application: | For Producing Steel Roofing Sheets | Raw Material: | Color Steel Coils, PPGI Coils |
|---|---|---|---|
| Stacking Type: | Automatic Stacker | Forming Power: | 7.5KW |
| Forming Stations: | 18 Stations | Cutting Power: | 4KW |
| High Light: | metal roofing roll former,profile roll forming machine |
||

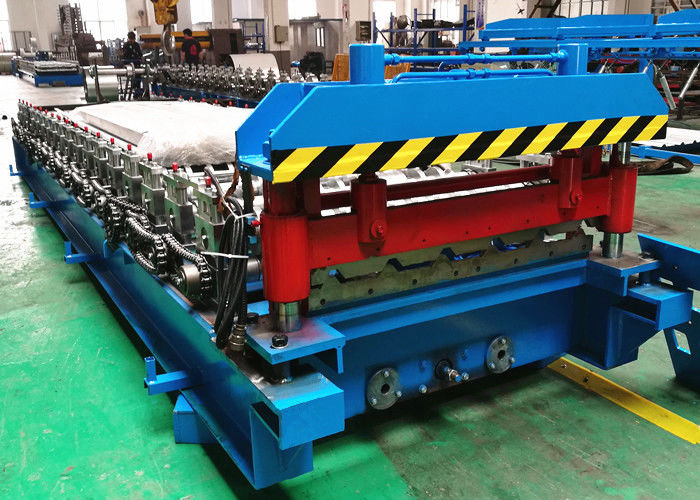

Color Steel Roofing Sheet Roll Forming Machine With Automatic Stacker
Description
Believe Industry design and make metal roofing sheet roll forming machine for trapezoidal profile roofing sheets, corrugated roofing sheets, tile shape roof panels and all kinds of custom profiles. This machine produces trapezoidal roofing sheet with 1220mm feeding width according to clients' profile.
As usual, 0.3-0.8mm thick galvanized steel coils and ppgi coils of mild strength of 235-345Mpa are the main material used for metal roofing sheets. While some roofing sheet producers also use 0.18-0.2mm thick high strength material.
Machine Components Of Whole Roll Forming Line
> Single arm type decoiler used for holding and unwinding max 5000kg steel coils
> 3kw for decoiler mandrel expansion and tension
> 4kw for steel coil unwinding
> Manual pre-cutting device can easily cut the material for changing coils
> Material entry guide used to prevent the deviation of the material when feeding

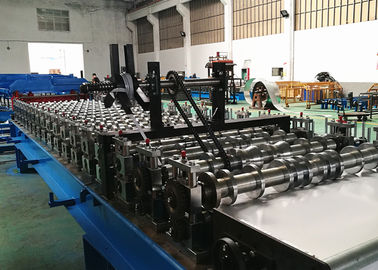

> 18 roll forming stations with 7.5kw chain drive
> Extra side material recoiling device is exquipped for cutting and winding the extra material
> Hydraulic cutting device can cut the sheet into desired length

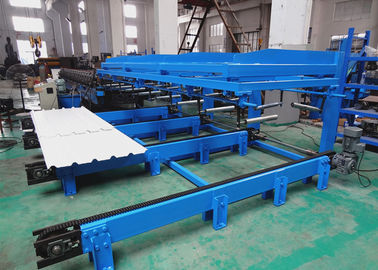

> 6 meters long roller-path type automatuc stacking system
> 0.75kw motor for driving
> Pneumatic sheet drop down frame
> Panasonic PLC control system
> YASKAWA Inverter
> Omron Encoder
> 2 sets, 1 for decoiler mandrel expansion; 1 for cutting
> 3kw for decoiler mandrel expansion and tension, 4kw for hydraulic cutting to length
> Hydraulic power is not less than 12MPa
End Product Details
| Metal Roofing Sheet 29-200-1000 | ||
| 1. | Effective Width | 1000mm |
| 2. | Feeding Width / Material Width | 1200mm |
| 3. | Material Thickness | 0.3-0.8mm |
| 4. | Material To Be Roll Formed | Color Steel Coils, Galvanized Steel Coils |
| 5. | Material Strength | 234-345Mpa, mild steel coils |
| 6. | Application | Used as roofing cladding sheets |

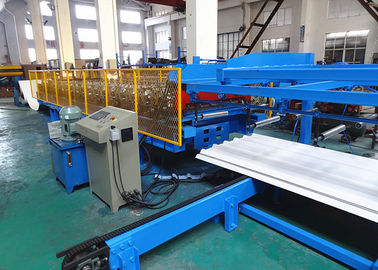

More Pictures For Reference
