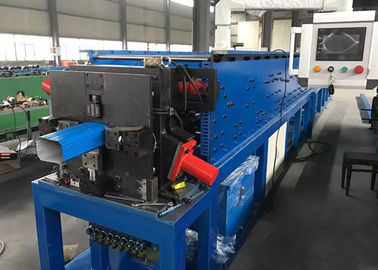

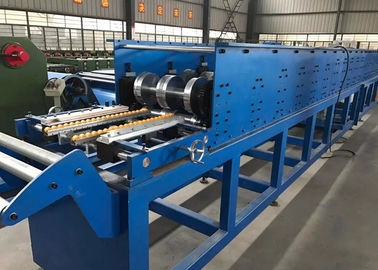

Square Rainwater Downspout Roll Forming Machine Integrated With Elbow Device

Square Rainwater Downspout Roll Forming Machine Integrated With Elbow Device

    • Square Rainwater Downspout Roll Forming Machine Integrated With Elbow Device
    • Square Rainwater Downspout Roll Forming Machine Integrated With Elbow Device
  • Square Rainwater Downspout Roll Forming Machine Integrated With Elbow Device

    Product Details:

    Place of Origin: CHINA
    Brand Name: BELIEVE INDUSTRY
    Certification: CE
    Model Number: BELI SERIES

    Payment & Shipping Terms:

    Packaging Details: Main machine nude packing, electric and hydraulic parts are wrapped with plastic film
    Delivery Time: 60 days
    Payment Terms: 30% TT as advance payment, 70% before delivery
    Supply Ability: 60 stes per quarter
    Contact Now
    Detailed Product Description
    Other Name: Square Downpipe Roll Forming Machine Usage: Used To Produce Steel Rainwater Downpipes
    Advantage: Integrated With Elbowing Unit On The Machine Feature: Can Bend The Pipes From 30 To 90 Degree
    Drive: Electrically Driven By Chain Forming Speed: 15m/min
    High Light:

    downspout elbow machine

    ,

    downspout forming machine

    Square Rainwater Downspout Roll Forming Machine Integrated With Elbow Device



      Brief Description

    This roll forming machine is designed to produce square type rainwater downspouts also know as rainwater downpipes. Main material to be roll formed are 0.5mm thick galvanized steel coils and copper.



    Machine Features

    • Steel welded tubular machine frame with cast iron roller tools.
    • Improved design with pipe elbowing device equipped on the machine.
    • Be capable of bending downspouts into 30 degree to 90 degree.
    • Electrical motor, control cabinet, hydraulic station are placed inside of the machine base
    • Control computer panel can be rotated in all directions
    • Forming speed of the machine can reach up to 15m/min
    • Electrically driven via chain and sprocket
    • Hydraulic cutting, whole line stops when cutting





      Main Components Of The Roll Forming Line



    No.  Components Quantity  Options
    1.  3T Unpowered Uncoiler / Decoiler 1 set  Hydraulic decoiler; double head decoiler
    2.  Roll Former 1 set
    3.  Hydraulic Shear and Elbow Unit 1 set  Individual Elbow Machine
    4.  Run Out Tables 2 sets  Auto Stacker
    5.  Electric Control System 1 set  Placed outside of the machine base
    6.  Hydraulic System 1 set  Placed outside of the machine base



    Main Technical Parameters

    >   Roller Stations / Roll Forming Steps: 19 staions depend on profile and material used

    >   Main Power: 5.5kw

    >   Forming Speed: 12-15m/min

    >   Hydraulic Power: 7.5kw

    >   Control System: PLC control system

    >   Drive: electrically driven by chain and sprockets



    End Product For Reference

    Square Rainwater Downspout Roll Forming Machine Integrated With Elbow Device
