Home ProductsDownspout And Gutter Rollformer

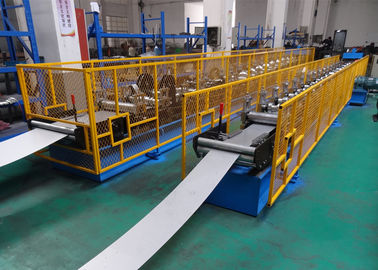

Steel Rain Gutter Roll Forming Machine for Galvanized Steel / Aluminum / Copper Material

Steel Rain Gutter Roll Forming Machine for Galvanized Steel / Aluminum / Copper Material

    • Steel Rain Gutter Roll Forming Machine for Galvanized Steel / Aluminum / Copper Material
    • Steel Rain Gutter Roll Forming Machine for Galvanized Steel / Aluminum / Copper Material
    • Steel Rain Gutter Roll Forming Machine for Galvanized Steel / Aluminum / Copper Material
    • Steel Rain Gutter Roll Forming Machine for Galvanized Steel / Aluminum / Copper Material
  • Steel Rain Gutter Roll Forming Machine for Galvanized Steel / Aluminum / Copper Material

    Product Details:

    Place of Origin: CHINA
    Brand Name: BELIEVE INDUSTRY
    Certification: CE
    Model Number: BELI-QG115

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Packaging Details: Covered by plastic film and steadily fixed inside of the container with steel wire and fastener.
    Delivery Time: 50 to 60 days
    Payment Terms: T/T, L/C
    Supply Ability: 45 sets per quarter
    Contact Now
    Detailed Product Description
    Application: Used To Produce Rainwater Gutters With High Front Quad Profile Machine Type: Metal Roll Forming Machine, Sheet Rollforming Machine, Cold Roll Former
    Control System: PLC Control System Drive System: Electrically Motor Drive
    Transmission: Chain Transmission Cutting System: Hydraulically Powered Cutting
    Machine Speed: 12-15m/min
    High Light:

    gutter making machine

    ,

    gutter rolling machine



    Metal Quad Gutter Roll Forming Machine



    Introduction

    BELIEVE INDUSTRY COMPANY has various metal roll forming solutions for Rainwater Drainage System. As per customers' requirement, we make machines for producing half round gutters, quad gutters, round downpipes and rectangular downpipes, etc.



    This gutter forming machine is used to produce 0.4mm to 0.8mm front high quad gutters. Whole production line consists of decoiler, feeding and guiding device, maunal pre-cutting device, roll forming unit, hydraulic post cutting device, electric control system and hydraulic station, etc.

    Steel Rain Gutter Roll Forming Machine for Galvanized Steel / Aluminum / Copper Material



    Applicable Raw Material:

    • Material Type: Galvanized coils, Pre-painted coils, Zincalum coils, Aluminium, Stainless steel, Copper coils, etc
    • Material Thickness: 0.3-0.8mm
    • Coil Weight: Max. 3000kgs
    • Raw material width: approx. 250mm


    Workflow: setting production data (batch, pcs, length, etc)  -->  decoiling  -->  feeding & guiding  -->  roll forming  -->  cutting  -->  quad gutter out

    Steel Rain Gutter Roll Forming Machine for Galvanized Steel / Aluminum / Copper Material



    Machine Video:



    Machine Components:

    1) 3Ton Unpower Decoiler:

    1. Manually adjust the screw to tighten and loosen the decoiler mandrel;
    2. Unpower-type coil unwinding;
    3. Decoiler Capacity: Max. 3000kgs;
    4. Coil Inner Diameter: 480-520mm;
    5. Coil Width: Max. 500mm

    2) Feeding Guide And Pre-cutting Device:

    1. Pinch roll press the material, avoid the material bounce up and down;
    2. Manually rotate the side hand-wheel to adjust guide width as per raw material width; avoid material deviation
    3. Manual-type pre-cutting device, cut the sheet before roll forming

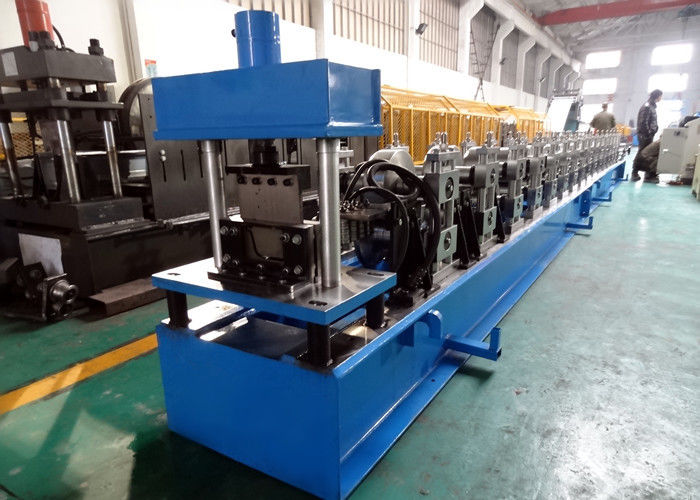

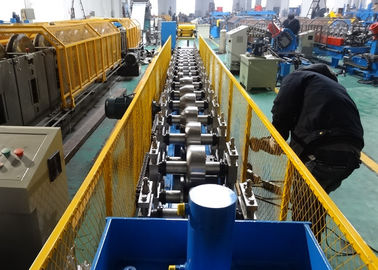

    3) Roll Forming Unit:

    1. Control System: Japanese Panasonic PLC; Frequency inverter: YASKAWA; Encoder: Japanese Koyo/Omron
    2. Electric motor driving, chain transmission
    3. Roller stands: guide column type with sliding blocks
    4. Metal protective mesh is bolted on machine sides, ensure safety of human and machine
    5. Shaft material is 40Cr, with diameter 75mm solid shaft
    6. Roller material: ASTM1045 steel; with heat treatment; chrome plated
    7. Roll forming stations: 16 stations (depend on specific gutter profiles and material type)
    8. Roll forming speed: 15m/min (inquiry for high speed machine)
    9. Main power: 5.5KW

    4) Electric Control System:

    1. Operation language: Chinese and English (other language is optional)
    2. Operation manual: English version is available

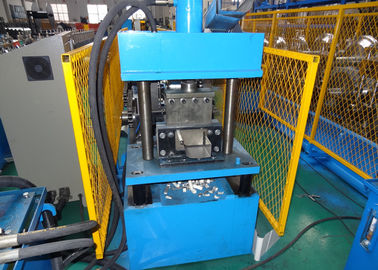

    5) Hydraulic Post Cutting Device:

    1. Users set the cutting length on touch screen of the control cabinet; encoder cutting length measuring
    2. Hydraulic cutting after roll forming, stop to cut type, 3 blades cutting, 6mm to 8mm waste
    3. Cutting blade material: Cr12Mov, Hydraulic power: 4KW

    6) Exit Support Table:

    1. Support the output products, 2 units
    2. Angle steel welded frame with simple roller conveyor

    Steel Rain Gutter Roll Forming Machine for Galvanized Steel / Aluminum / Copper Material





    Our Advantages

    • More than 15 years experience in metal roll forming machine manufacturing
    • Professional team with experienced engineers and mature technology
    • Exported to more than 50 countries (America, UK, Newzealand, Malaysia, India, South Africa, etc)
    • Famous brand electric components are selected (Siemens, Panasonic, Omron, Koyo, YASKAWA)
    • Famous brand bearings are selected (HRB, SKF, NSK, etc)
    • Lifetime technical support, we replace broken parts for free under normal use witin 12Months



    Packaging And Loading Details

    1. One 40GP container or one 20GP container is needed for loading the whole line of gutter roll forming machine.

    2. Main machine body is nude packing and fixed inside of the container with steel wire and fasterners.

    3. Hydraulic station and control cabinet is wrapped with plastic film and fastened inside of the container.

    4. Protective cover is covered with plastic film and fastened by steel wire



    Steel Rain Gutter Roll Forming Machine for Galvanized Steel / Aluminum / Copper Material
