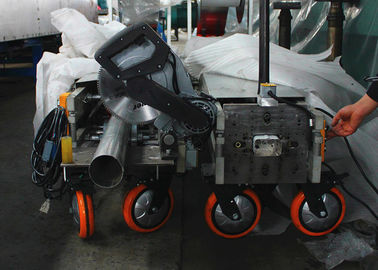

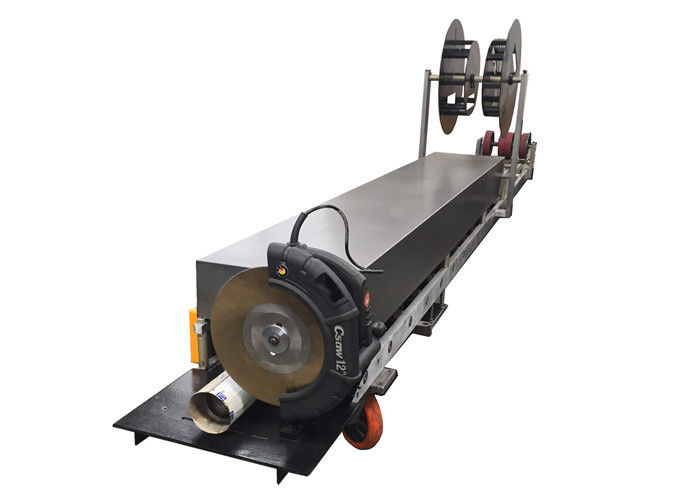

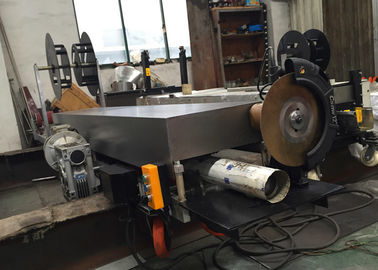

Portable Roll Forming Machine For Round Type Shape Downpipes With Saw Cutting

Portable Roll Forming Machine For Round Type Shape Downpipes With Saw Cutting

    • Portable Roll Forming Machine For Round Type Shape Downpipes With Saw Cutting
    • Portable Roll Forming Machine For Round Type Shape Downpipes With Saw Cutting
    • Portable Roll Forming Machine For Round Type Shape Downpipes With Saw Cutting
  • Portable Roll Forming Machine For Round Type Shape Downpipes With Saw Cutting

    Product Details:

    Place of Origin: CHINA
    Brand Name: BELIEVE INDUSTRY
    Certification: CE
    Model Number: BELI80, 100, 120

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: USD 15000-20000 / set
    Packaging Details: Nude Packing (roller surface covered plastic film)
    Delivery Time: 45 days
    Payment Terms: T/T, L/C
    Supply Ability: 20 sets/ Month
    Contact Now
    Detailed Product Description
    Features: Easy For Transport, Can Work At Construction Site Other Name: Downpipe Portable Roll Forming Machine
    Main Power: 2.2kw AC Line Speed: 0-6m/min
    Power Supply: 380V, 50Hz, 3Phase Machine Warranty: 24 Months

    Portable Roll Forming Machine For Round Type Shape Downpipes With Saw Cutting



    Description

    Believe Industry Company manufacture portable roll forming machines for gutters and downpipes. According to clients' profile and requirement, this machine is made to produce round shape downpipes with galvanized steel coils and aluminium coils.



    Compared to conventional downpipe roll forming machine, portable downpipe machine can be easily to transport due to its smart design and light weight. It can work at construction site for any length required according to actual measurement.



    Standard Features

    • Machine Structure: welded tubular steel frame
    • Control System: push botton RUN/JOG controls at exit ends
    • Drive: electrically chain drive
    • Cutting: saw cutting



    Material Can Be Roll Formed

    • Aluminum: 0.8mm,
    • Galvanized Steel: 0.6mm,
    • Copper: 0.5mm



    Work Process

    Coil uploading--->coil unwinding and infeeding--->roll forming and downpipe seaming--->cutting to length



    Most Important Specifications

     Machine Specifications
    1.  Machine Dimension  Approx. 3500mm * 650mm * 800mm
    2.  Machine Weight  Approx. 500kgs



    Technical Specification
    1.  Uncoiler Type  Unpowered uncoiler, manual expansion and tension
    2.  Loading Capacity  Max. 300kgs
    3.  Forming Speed  0-10m/min
    4.  Line Speed  0-6m/min
    5.  Main Power  2.2KW AC
    6.  Roller Material  Polyurethane top and bottom drive rollers
    7.  Shaft Material  40Cr solid shafts, with 50mm diameter
    8.  Cutting Type  Saw cutting type
