Electric Roll Forming Machine Parts / Single Mandrel Hydraulic Decoiler With Support Frame

Electric Roll Forming Machine Parts / Single Mandrel Hydraulic Decoiler With Support Frame

    • Electric Roll Forming Machine Parts / Single Mandrel Hydraulic Decoiler With Support Frame
    • Electric Roll Forming Machine Parts / Single Mandrel Hydraulic Decoiler With Support Frame
  • Electric Roll Forming Machine Parts / Single Mandrel Hydraulic Decoiler With Support Frame

    Product Details:

    Place of Origin: CHINA
    Brand Name: BELIEVE INDUSTRY
    Certification: CE
    Model Number: 5Ton Decoiler

    Payment & Shipping Terms:

    Packaging Details: Nude packing and fastened inside of the container with electric and hydraualic parts wrapped with plastic film.
    Delivery Time: 15-25 days
    Payment Terms: T/T, L/C
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Application: Used For Holding And Unwinding Coils Capacity: 5Ton; 5000kg
    Mandrel Expansion Type: Hydraulic Expansion And Tension Decoiling Type: Electric Decoiling
    Power For Expansion: 3kw Power For Coil Unwinding: 4kw; 5.5kw

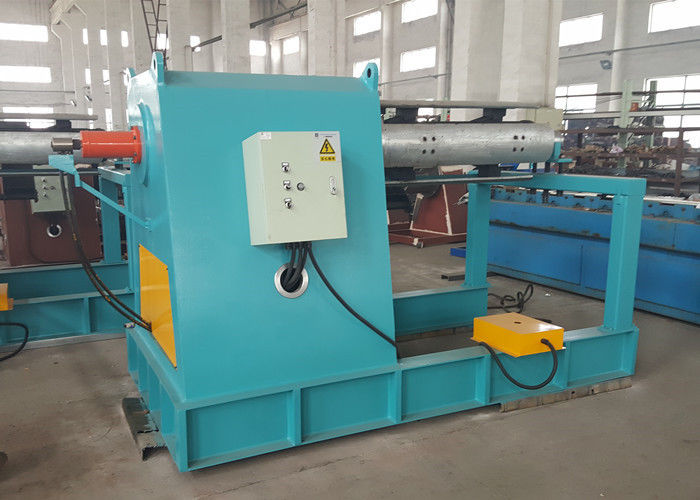

    5Ton Single Mandrel Hydraulic Decoiler With Support Frame





    Description



    As a common accessory for roll forming machine, 5Ton decoiler is widely used for a metal roofing sheet roll forming line, steel floor decking sheet forming machine and cable tray production line, etc.



    Believe Industry Company have 2 kinds of 5T uncoilers: 5T manual uncoiler and 5T hydraulic decoiler. Manual uncoiler is an economical design for clients if their budget is limited, but the manual one still has great performance. When clients need to unwind too thin material or too thick material or they have the demand of  high speed of whole production line, a hydraulic uncoiler will be a better choice.



    5Ton hydraulic decoiler with hydraulic mandrel expansion and electric coil unwinding is more convenient in operation than manual type decoiler. Equipped with the brake system, the decoiler itself can automatically adjust the unwinding speed to match the speed of whole line.





    Suitable Coils Information

    >   Coil Material: galvanized steel coils, ppgi coils, stainless steel coils, etc

    >   Coil Width: max 1500mm

    >   Max Coil Weight: 5000kg

    >   Coil Inner Diameter: 508mm

    >   Max Coil Outer Diameter: 1350mm





    Comparison Between 5Ton Hydraulic & Manual Decoiler



    Decoiler Hydraulic Decoiler Manual Decoiler
    Capacity 5Ton 5Ton
    Expansion Type Hydraulic Expansion Manual Adjust
    Coil Unwinding Type Electric Unwinding Unpowered
    Power for Expension 3kw /
    Power for Unwinding 4kw /



    Electric Roll Forming Machine Parts / Single Mandrel Hydraulic Decoiler With Support Frame





    Competitive Advantages

    >   Machine base welded by H beam steel has great strength and stability

    >   Hold down arm is for easy unwinding the coil and avoid the coil exploding

    >   Support frame can be easily disassembled for coil loading

    >   Decoiler base can move in and out to facilitate the adjustment of the mandrel with the roll forming line

    >   All electric and hydraulic elements are selected from famous brands and comform to CE standard

    >   Control motion can be manual and automatic type according to clients' requirement

    >   Display language can be customized according to clients' demand such as French, Spanish, Portuguese, Lithuanian, etc.
