3 Ton Roll Forming Machine Parts / Hydraulic Decoiler 3KW Motor Powered

3 Ton Roll Forming Machine Parts / Hydraulic Decoiler 3KW Motor Powered

    • 3 Ton Roll Forming Machine Parts / Hydraulic Decoiler 3KW Motor Powered
    • 3 Ton Roll Forming Machine Parts / Hydraulic Decoiler 3KW Motor Powered
    • 3 Ton Roll Forming Machine Parts / Hydraulic Decoiler 3KW Motor Powered
    • 3 Ton Roll Forming Machine Parts / Hydraulic Decoiler 3KW Motor Powered
  • 3 Ton Roll Forming Machine Parts / Hydraulic Decoiler 3KW Motor Powered

    Product Details:

    Place of Origin: CHINA
    Brand Name: Believe Industry Company
    Certification: CE
    Model Number: 3Ton Hydraulic Decoiler

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD 6,000
    Packaging Details: Wrapped With Plastic Flim
    Delivery Time: 15 to 20 days
    Payment Terms: T/T, L/C
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Capacity: 3Ton Type: Hydraulic Decoiler
    Motor Power: 3kw Hydraulic Power: 3kw
    High Light:

    roll former parts

    ,

    roll forming machine spare parts

    3Ton Hydraulic Decoiler

    Brief Description



    Main structure of 3Ton hydraulic decoiler is U-steel(beam steel) and steel plate welded frame. It is mainly composed of decoiler expansion and tension mandrel, pneumatic press arm, electrical control box, motor, hydraulic cylinder and hydraulic station, etc.



    3Ton hydraulic decoiler is always a part of light gauge steel frame roll forming machine such as drywall stud and track forming machine, roof batten roll forming machine and strut channel forming machine, etc.



    Main Parameters

    1  Decoiler Mandrel Expansion And Tension  Hydraulic expansion and tension
    2  Expansion And Tension Power  Hydraulic power offered by 3kw motor
    3  Decoiling Type  Electric decoiling
    4  Decoiling Power  3kw
    5  Expansion Range  480-520mm
    6  Coil I.D  508mm is suitable
    7  Coil O.D  Max 1200mm
    8  Coil Width  Max 500mm
    9  Capacity  3000kg

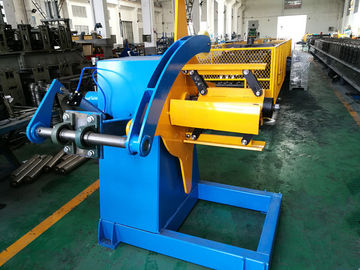

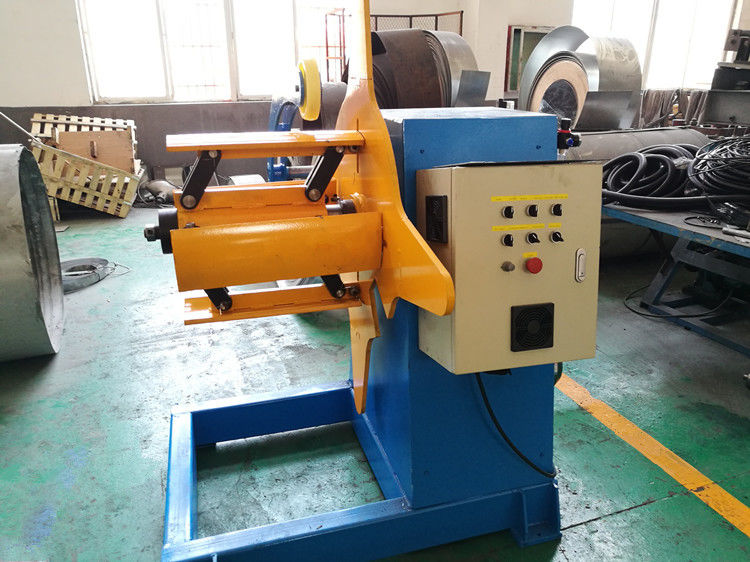

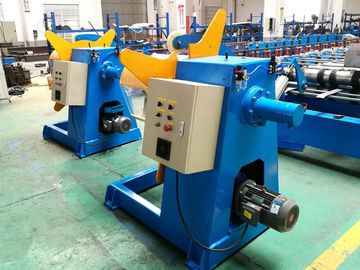

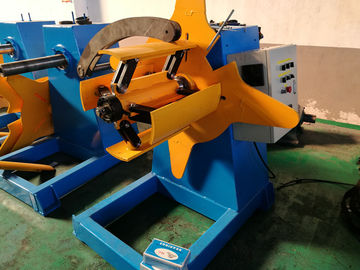

    Pictures For Reference

    3 Ton Roll Forming Machine Parts / Hydraulic Decoiler 3KW Motor Powered   3 Ton Roll Forming Machine Parts / Hydraulic Decoiler 3KW Motor Powered



    3 Ton Roll Forming Machine Parts / Hydraulic Decoiler 3KW Motor Powered   3 Ton Roll Forming Machine Parts / Hydraulic Decoiler 3KW Motor Powered



    3 Ton Roll Forming Machine Parts / Hydraulic Decoiler 3KW Motor Powered



    Believe Industry Company with more than 20 years' experience in metal forming machine designing and manufacturing.



    *  Best Metal Forming Machine Solution

    *  20+ Years' Experience

    *  COPRA, AUTOCAD, SOLIDWORKS Assist In Machine Desiging

    *  Strict Quality Control On Every Procedure

    *  Test The Machine With All Material Clients Require

    *  50 more countries and regions our technicians have been to commission the machine

    *  24 Month Warranty, Lifetime Technical Support
