Metal Roof Panel Crimp Curving Machine, Round Arch Curving Machine

Metal Roof Panel Crimp Curving Machine, Round Arch Curving Machine

    • Metal Roof Panel Crimp Curving Machine, Round Arch Curving Machine
    • Metal Roof Panel Crimp Curving Machine, Round Arch Curving Machine
    • Metal Roof Panel Crimp Curving Machine, Round Arch Curving Machine
    • Metal Roof Panel Crimp Curving Machine, Round Arch Curving Machine
  • Metal Roof Panel Crimp Curving Machine, Round Arch Curving Machine

    Product Details:

    Place of Origin: CHINA
    Brand Name: BELIEVE INDUSTRY
    Certification: CE
    Model Number: BELI-Roof

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Packaging Details: Nude packing with steel wire fastened inside of the container
    Delivery Time: 45 days
    Payment Terms: 30% TT in advance, 70% before shipment after machine check and acceptance
    Supply Ability: 20 sets per month
    Contact Now
    Detailed Product Description
    Machine Function: To Bend The Flat Roof Panel To Arch Shape Curving Type: Hydraulic Press Steps
    Control System: PLC Control System Operation Type: Touch Screen With Buttons

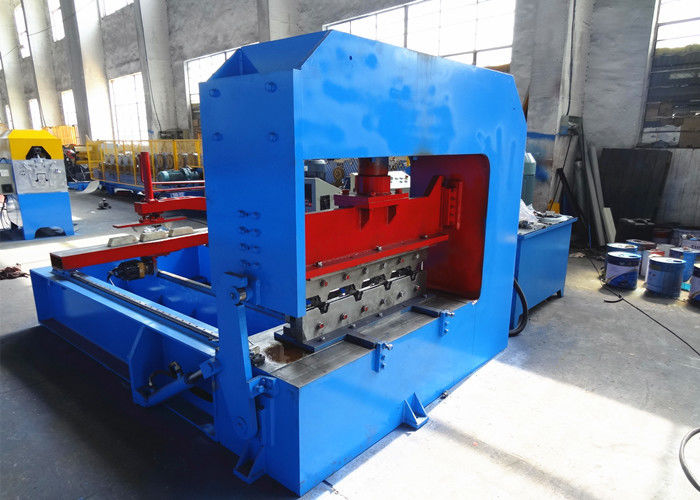

    Metal Roof Panel Curving Machine



    Description

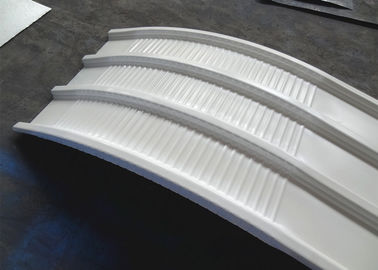

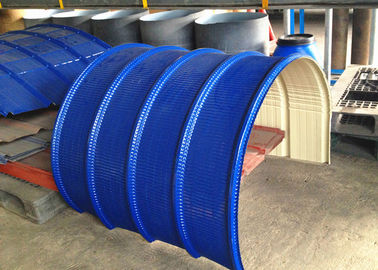

    Curved metal roofing is an upward trend in commercial and residential buildings due to its aesthetic appearance. Believe Industry Company makes curving machine for all kinds of roofing profiles such as IBR roofing sheets, standing seam roof panel and corrugated sheets, etc. The curving machine is able to turnover from horizontal to vertical type to easy unload the finished products.





    Main Machine Specification

    • Material Information

    1. Roof Profile: depend on clients' profiles

    2. Raw Material: Galvanized coils, Color steel coils

    3. Material Width: 914mm, 1000mm, 1250mm, etc

    4. Material Thickness: 0.18mm to 0.8mm

    5. Material Strength: 235-550Mpa



    • Machine Specification

    1. Machine Dimension: approx. 2m * 2m * 1.5m

    2. Machine Weight: approx. 1 ton to 2 tons



    • Production Parameter

    1. Control System: PLC control system

    2. Crimp System: Hydraulic press and crimp

    3. Transmission: Roller type / Servo type

    4. Hydraulic Power: 4kw

    5. Electric Power: 1.5kw

    6. Minium Curved Radius: 250mm

    7. Length Tolerance: + / - 2mm per 6 meters

    Metal Roof Panel Crimp Curving Machine, Round Arch Curving Machine

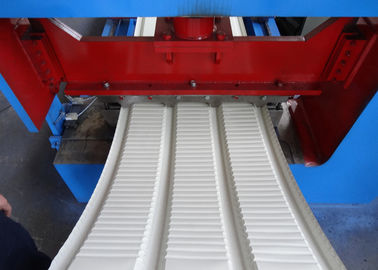

    Rollers press the sheet with chain transmission

    Metal Roof Panel Crimp Curving Machine, Round Arch Curving Machine

    Pneumatic press the sheet, servo flying feeding



    For more information, please contact us directly.
