| Place of Origin: | CHINA |
| Brand Name: | Believe Industry Company |
| Certification: | CE, ISO |
| Model Number: | BELI-PURLIN |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | According to customers' requirement |
| Packaging Details: | Standard Seaworthy Packing |
| Delivery Time: | 60 days |
| Payment Terms: | 30% TT in advance, 70% TT before shipment |
| Supply Ability: | 45 sets per quarter |
| Application: | Producing Z Purlin For Steel Structure Construction | Other Name: | Z Purlin Machine, Zed Purlin Roll Forming Machine |
|---|---|---|---|
| Control System: | PLC Control System | Transmission System: | Electric Chain Transmission |

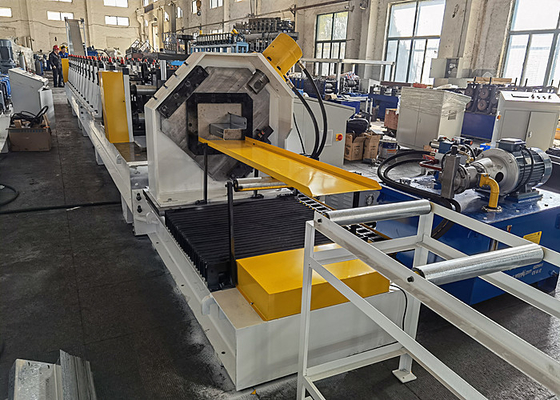

| Cutting System: | Hydraulic Cutting; Servo-tracking Cutting | Line Speed: | 15m/min Including Punching And Cutting |
15m/min Z Purlin Roll Forming Machine With Servo-Tracking Cutting Device
Believe Industry Company offers best machine solutions based on customers' requirements. This machine can produce Z100, Z150, Z200, Z250, Z300 purlins with galvanized steel coils of 1.5-3.0mm thickness. As per customers'd requirement, the machine speed can reach up to max 15m/min including punching and cutting.

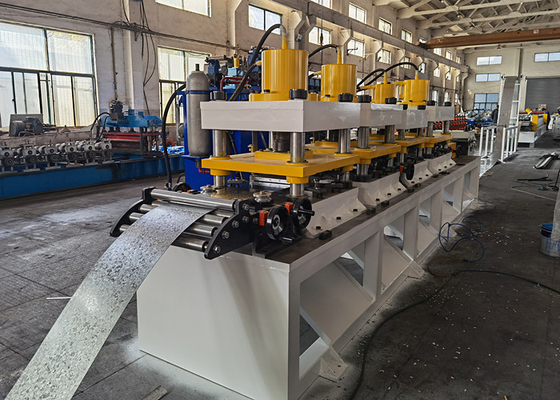

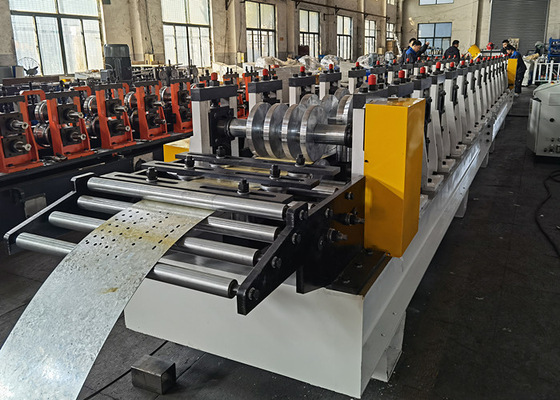

Main components of the production line are deoiler, levelling unit, punching unit, roll forming unit, cutting device, run out table, electric control system, hydraulic system, etc.

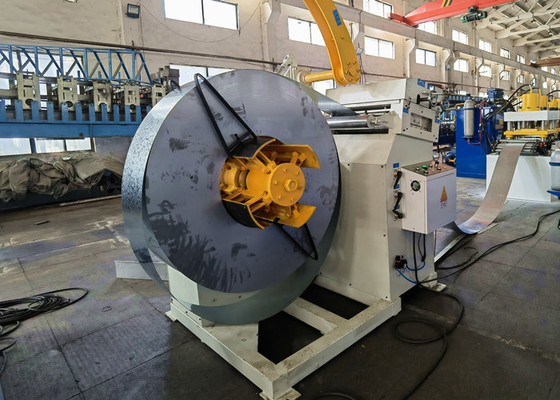

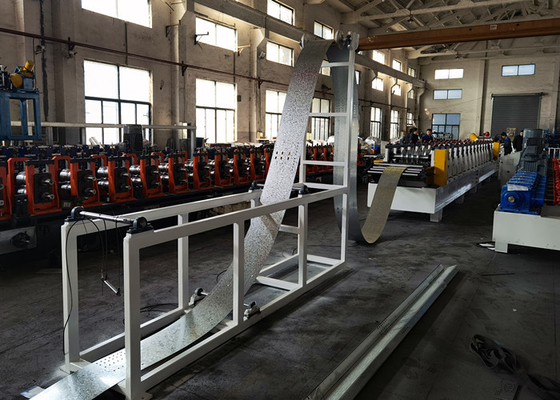

Workflow: coil unwinding - levelling - punching holes - servo feeding - roll forming - straightening - servo tracking cutting - collecting
Main Machine Technical Parameters
1. Material: galvanized steel coils, cold rolled steel coils
2. Material Thickness: 1.5mm - 3.0mm
3. Forming Stations: 16 stations
4. Forming Speed: max. 15m/min including punching and cutting
5. Main Motor Power: 15kw

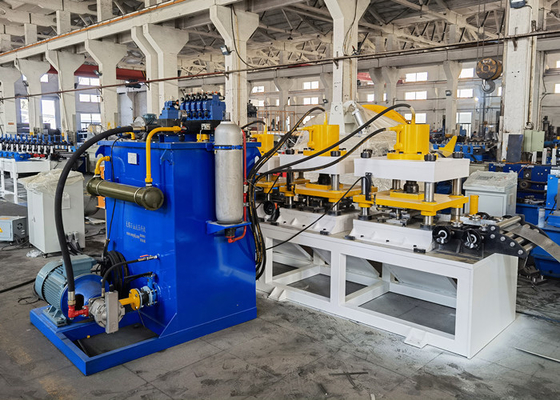

6. Hydraulic Power: 7.5kw for punching and cutting
7. Control System: Panasonic PLC control system; Omron or Siemens or other brand is optional
8. Material of Rollers: GCR15 with heat treatment and chromed
9. Material of Shafts: 40Cr solid shafts, 110mm in diameter
10. Material of Cutting Blades: Cr12Mov, HRC58-62
11. Machine Base: high quality H beam steel welded machine base(machine bed)
12. Roller Stands: cast iron roller stands screwed on machine base for the main machine structure
Z Purlin Samples (For Reference)
All our machines undergo strict quality control
* We have mature and professional machine designing based on customers' requirement
* All the raw material steel plates, H beam steel, angle steel, steel rods, etc are all selected from famous steel mills to make sure good quality
* We have precision machines and experiences technicians to process the machine parts
* All the machines will be tested with required material before shipment
If you need more machine details, please contact us directly.
