| Place of Origin: | CHINA |
| Brand Name: | BELIEVE INDUSTRY COMPANY |
| Certification: | CE |
| Model Number: | BELI-Multibeam |
| Packaging Details: | Main machine part is nude packing, hydraulic and electric parts are covered with plastic film. |
|---|---|
| Delivery Time: | 60 to 75 days |
| Payment Terms: | 30% TT in advance, 70% TT before delivery |
| Supply Ability: | 45 sets per quarter |
| Machine: | Roll Forming Machine For Multifunctional Purlins | Type: | Width Is Automatic Adjust |
|---|---|---|---|
| Purlin Web Width: | 140mm To 350mm | Purlin Flange Height: | 40mm To 80mm |
| Drive System: | Electrically Driven Via Chain And Sprocket | Cutting System: | Pre-cutting System, Cutting Before Roll Forming |

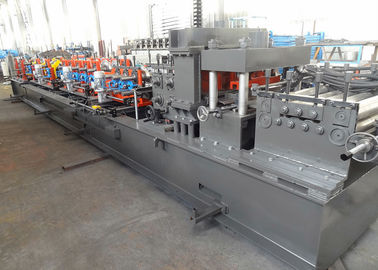

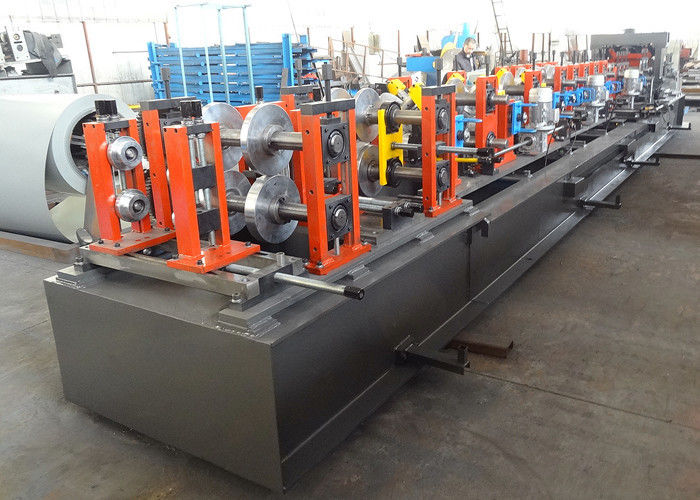

Automatic Adjust Multibeam Purlin Rollforming Machine For C Z Sigma Profiles
Description
This multibeam purlin rollforming machine can profiling C-shape purlin, U-shape purlin, Z-shape purlin and Sigma-shape purlin in the same roll forming unit. Diverse widths of purlins can be adjust automatically through the touch screen. Web widths of the purlins range from 100mm to 400mm and flange depths range from 40mm to 100mm.
Profiles Change Over

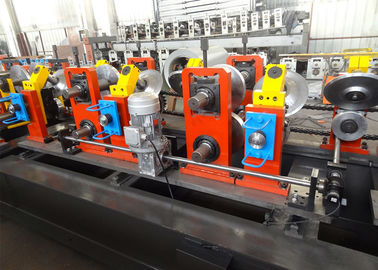

All the purlins including C purlin, U purlin, Z purlin and Sigma purlin can be roll formed by one set of the forming rollers. Only to do a little adjustment can change over C to Z or Sigma shape. Automatically change over of the purlin profiles can save a lot of time to increase the production efficiency.
Web Width Adjust

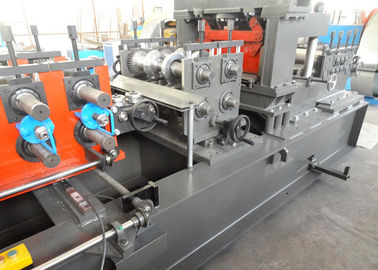

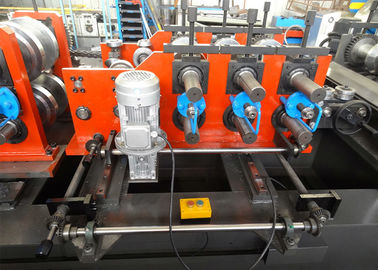

C purlin, U purlin, Z purlin and Sigma purlin with diverse dimensions are very important material for steel constructions. All dimensions of purlins can be produced by adjusting the distance between the rollers. Each side of rollers are installed on a common plate which can move in and out through the linear guide automatically. Only to input the required data on the touch screen, the rollers will adjust accordingly.
Profile Drawing And Dimensions
| Dimension | C-shape Purlin | U-shape Purlin | Z-shape Purlin | Sigma-shape Purlin |
| Web Width | 100-400mm | 100-400mm | 100-400mm | 140-420mm |
| Flange Depth | 40-100mm | 40-100mm | 40-100mm | 60-100mm |
| Lip Size | / | 15-25mm | 15-25mm | 15-20mm |
Main Components Of Whole Production Line
Working Process
Loading the coil -- coil unwinding -- feeding -- levelling -- punching holes -- cutting to required length -- roll forming -- final products output
