| Place of Origin: | CHINA |
| Brand Name: | BELIEVE INDUSTRY COMPANY |
| Certification: | CE |
| Model Number: | BELI-CZ |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Nude packing and fastened inside of the container by steel wire |
| Delivery Time: | 45 days to 60 days |
| Payment Terms: | 30% TT in advance, 70% TT after machine check and accept before shipment |
| Supply Ability: | 45 sets per quarter |
| Application: | Be Capable Of Producing C And Z Purlins With Variable Sizes | Control System: | PLC Control System |
|---|---|---|---|
| Drive System: | Electrically Chain Drive | Cutting System: | Hydraulic Cutting |
| C And Z Change Over: | Manual Adjustment | Width Adjust: | Automatic Adjustment |

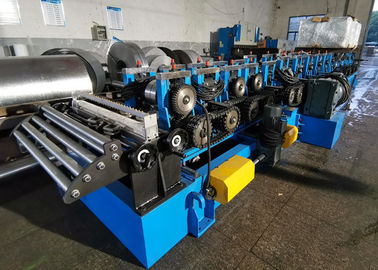

Galvanized Steel CZ Purlin Roll Forming Machine With Lubricating System
What Is A C&Z Purlin Change Over Rollfomer?
C-shape purlin and Z-shape purlins are mainly used in steel buildings as the structural support. CZ purlin change over rollformer also known as CZ interchangeble machine is designed for producing C&Z shape purlins with variable dimensions. In one machine, different sizes and shapes (C-shape, U-shape, Z Shape) can be produced by adjust the spacers and rollers. According to clients' requirement, our machine is capable of producing 80-240mm, 100-250mm, 100-300mm, 100-400mm purlins and other customized sizes. The design of CZ Purlin Interchangeable Rollformer not only meets the production requirement, but also saves space for some purlin manufacturers with limited factory area.
Believe Industry Company Offer Different Designs Of CZ Purlin Rollformer
|

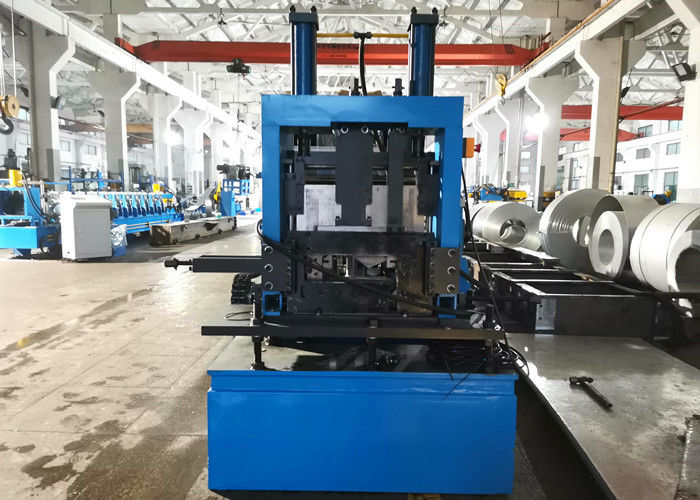

Infinite Adjust Cutting Unit |

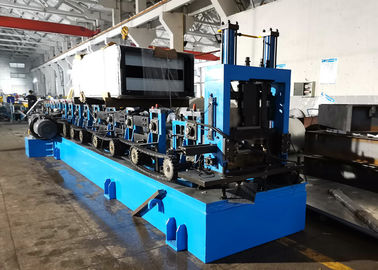

Most Important Components Included In This CZ Purlin Production Line
1. 5Ton Decoiler
2. Main Roll Forming Unit-Through-shaft machine design; individual cast iron roller stands
3. Drive System
4. Hydraulic Cutting System-Infinite Adjust Shearing Unit
5. Lubricating Unit
6. Electrically Control System
7. Hydraulic Station
8. Final Product Support Table
Why Equipping Lubricating System On The Machine?
|
There are two ways to get a zinc coated C purlin or Z purlin. Spraying zinc on roll formed purlins and using zinc coated material to produce purlins. During the process of roll forming, the zinc layer will drop due to the friction between rollers and material. Believe Industry Company equip a lubricating unit before roll forming. When the material enters into the feeding guide, the lubricant sprayed on the material will reduce the friction and wear and tear of the zinc layer to ensure good quality of final product. |

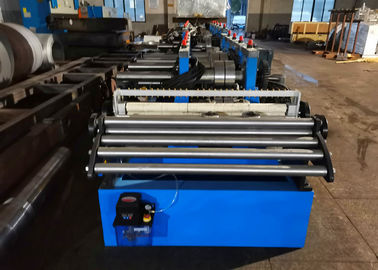

Lubricant Spraying Unit |
Main Technical Parameters
