Quick-change CZ Purlin Roll Forming Machine, Easy Adjustable Post Cutting

Product Details:

Place of Origin:	CHINA
Brand Name:	BELIEVE INDUSTRY COMPANY
Certification:	CE
Model Number:	BELI-CZ

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Nude packing and fastened inside of the container with steel wire, electric and hydraulic parts are covered with plastic film
Delivery Time:	60 to 75 days
Payment Terms:	30% TT in advance， 70% TT after machine check and accept before shipment
Supply Ability:	45 sets per quarter

Contact Now

Detailed Product Description

Application:	Used For Steel Contruction Industry	Function:	For Producing C Purlins And Z Purlins
Machine Type:	Cold Roll Forming Machine	Control System:	PLC Control System
Machine Speed:	8-10m/min	Drive System:	Electrically Chain Drive

Quick-change CZ Purlin Roll Forming Machine, Easy Adjustable Post Cutting

Description

Believe Industry Company have various machine designs for producing c purlins, z purlins and sigma purlins (multibeam purlins), etc. This CZ interchangeable machine has the advantages of automatic sizes adjustment and quick-change "C" and "Z" production. Compared to conventional manual-adjust-type machine, it is much more convenient to operate and greatly improve the productivity by reducing machine adjusting time.

Most Important Systems That Included In A CZ Purlin Quick-change Production Line

5Ton Decoiler / 8Ton Decoiler
Levelling Unit
Punching Unit
Quick-changeover Rollforming Mill
Straightening Unit
Hydraulic Cutting Unit
Exit Receiving Table
Electrical Control System
Hydraulic System
Drive System

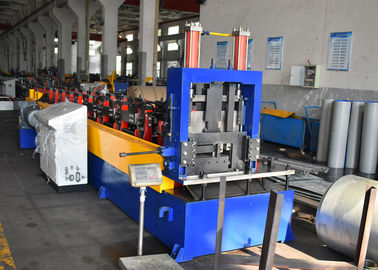

Quick-change CZ Purlin Roll Forming Machine, Easy Adjustable Post Cutting

Working Flow: decoiling-->feeding and guiding-->levelling-->roll forming-->straightening-->cutting

Automatic Roller Adjustment For Variable Purlin Sizes

How Different Sizes Adjust?

One side of the roller sets (or both sides of the roller sets) bolted on a common steel basement, which can move in and out through the linear guide, to adjust the gap between rollers according to different purlin sizes. Users key in related production data on touch screen, the roller sets will adjust accordingly.

How "C" And "Z" Quick-changeover?

The top and bottom rolls of the first several roller sets can be easily exchanged by rotating each stand 180° around a shaft, to change "C" to "Z" producing. By keep learning knowledge and improving technology, Believe Industry Company is experienced in making machine with automatic "C" and "Z" change over.

Quick-change CZ Purlin Roll Forming Machine, Easy Adjustable Post Cutting

Adjustable Roller Stands

Main Machine Features

Automatic adjustment of the rollers for variable purlin dimensions.
Quick change "C" to "Z" within 2 minutes
Infinite adjustable cutting device, it is easy to adjust according to purlin shape and dimensions
All rollers are made of GCr15 steel, strong and wearable
Antirust shafts and rollers, which are all chromed not less than 0.05mm thickness (for clients with special request, we supply rollers with nitriding treatment)

Different Designs Of Purlin Rollformer For Reference
Profiles Can Be Produced	> C, Z, U, Sigma sections or custimized profiles
Purlin Widths Adjustment	> Manual adjust: adjust the spacers between rollers > Automatic adjust: roller stands automatically move in and out through linear guide
Profiles Change Over	> Manual c and z purlin change over > Automatic quick-change "C" and "Z"
Drive	> Chain drive > Gear box with universal joint
Punching	> Hydraulic Punching: pre-punching; post punching > Mechanical Power Press
Cutting	> Pre-cutting; Post-cutting > Stop-to-cut type; flying cut-off
Roller Stands	> Integrated roller stands: steel plate welded on machine base > Individual roller stands: cast iron stands bolted on machine base
Machine Speed	> Common Design: 8-10m/min > High Speed Design: 30-40m/min
Runout Tables	> Unpowered Type > Automatic Stacker
