| Place of Origin: | Wuxi, China |
| Brand Name: | BELIEVE INDUSTRY COMPANY |
| Certification: | CE |
| Model Number: | BELI-PURLIN |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | According to customers' requirement |
| Packaging Details: | Main machine nude packing, electric and hydraulic system wrapped with plastic film |
| Delivery Time: | 50 to 60 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 20 sets/ Month |
| Machine Function: | Used To Produce U-shape Purlins | Coil Information: | Galvanized Coils, Hot Rolled Coils |
|---|---|---|---|
| Control System: | PLC Control System | Drive System: | Electrically Motor Drive |
| Cutting System: | Hydraulically Powered Cutting | Forming Speed: | 10-15m/min |
| High Light: | stud roll former,stud making machine |
||

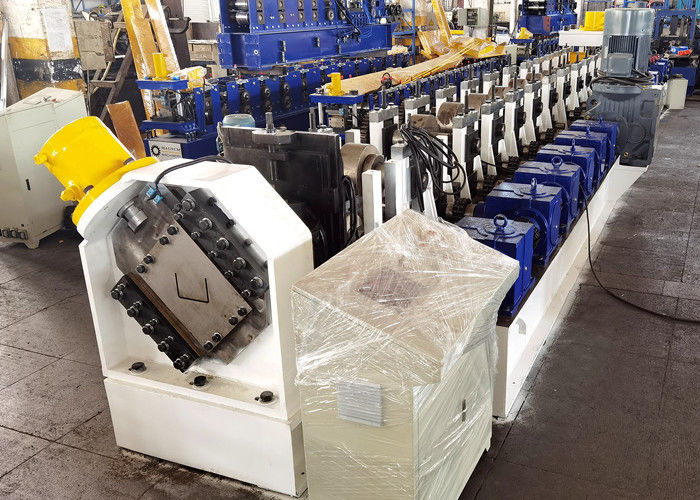

Steel U Purlin Roll Forming Machine
BELIEVE INDUSTRY offers Roll Forming Machines for producing C-shape, Z-shape, U-shape or M-shape(Sigma-shape) purlins, etc.
U Purlin Machine
This U purlin machine can produce both U-shape purlins with various web widths from min 80mm and max 300mm.
|
1. Raw material: * Material type: galvanized coils, black sheet, hot rolled coils * Material thickness: 1.5-3.5mm 2. U purlin dimensions: * Web width: 100-300mm * Flange height: 40-100mm 3. Control System: PLC control system 4. Drive System: electrically motor drive 5. Machine Speed: 15m/min not including cutting and punching (we also have higher speed design) |
|
Main Componants and Specitfications of The U Purlin Production Line
1. Machien workflow: uncoiling - feeding - levelling - punching - roll forming - cutting - collecting
2. Final machine design and layout will be according to customers' requirement.
Decoiling Unit
1. Decoiler Type: mechenical decoiler(manual decoiler); hydraulic decoiler
2. Loading Capacity: 5T, 6T
3. Max Coil Width: 600mm
4. Coil Inner Diameter: 450-530mm
5. Coil Outer Diameter: Max 1200mm
Levelling and Pre-Punching Unit
1. Levelling rollers: 5 rollers for levelling, up 2 rollers and bottom 3 rollers
2. Levelling power: 1.5kw
3. Material of Levelling Roller: 40Cr, 110mm in diameter
4. Punching Type: hydraulic powered punching, punching before roll forming
5. Hydraulic Power: 7.5kw
6. Material of Punching Mold: CR12, HRC 60-62 degree

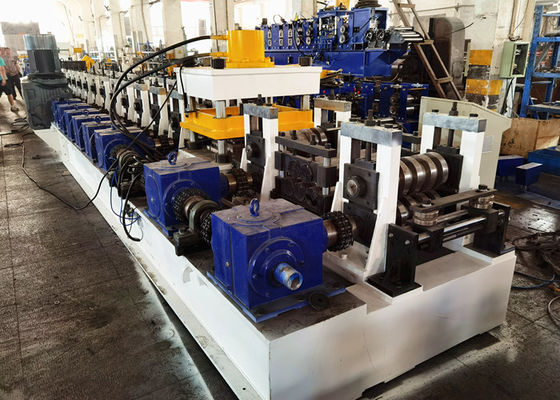

Main Roll Forming Unit
1. Rolling steps: 14 steps (14 roller stands)
2. Shaft: 75mm in diameter; 40Cr
3. Roller material: GCr15, HRC58-62°
4. Power for roll forming: 18.5kw
5. Flange height adjust: 1.5kw*2
6. Wed width adjust: 2.2kw
7. Drive and transmission: electrically motor drive; chain and gear transmission
8. Roll forming speed: 12-15m/min (not including punching and cutting)

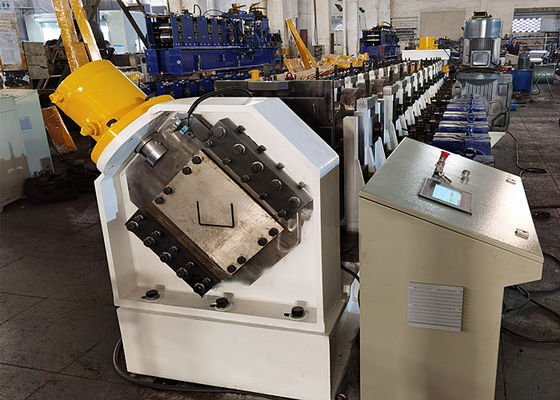

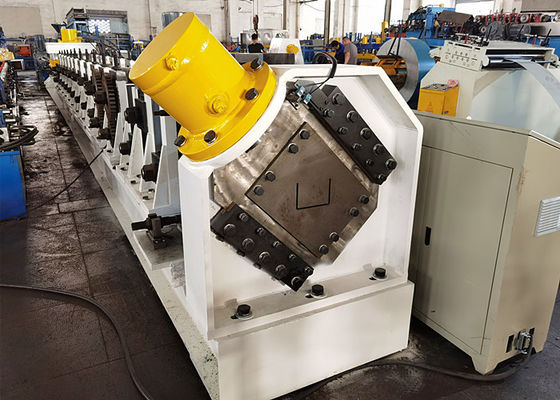

9. Cutting Type: hydraulic cutting, stop cutting after roll forming
10. Material of Cutting Blade: Cr12Mov, HRC58-62
11. Cutting Power: 7.5kw
If you need more machine details, please contact us directly.
