Standard Z100 - 300 Purlin Roll Forming Machine For 1.6 - 3.2mm Thickness Material

Standard Z100-300 Z Purlin Roll Forming Machine For 1.6-3.2mm Thick Material

  Brief Introduction

Believe Industry Company manufacture standard Z purlin roll forming machine. This machine can produce Z100, Z150, Z200, Z250, Z300 purlins with cold rolled steel coils of 1.6-3.2mm thickness. Main work process are steel coil uploading, unwinding, feeding and guiding, levelling, pre-punching, roll forming and hydraulic cutting.

Machine Features

• With PLC automatic control system.
• Roll forming speed is 12-15m/min.
• Whole line speed is 6-8m/min including online levelling, punching, roll forming and cutting.

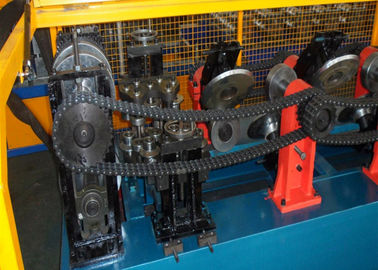

• Electrically drive via double chain and sprocket.
• Manually adjust the rollers and spacers for producing each dimension of Z purlins.
• Post hydraulically powered cutting device, users need to change cutting blades for each dimension.

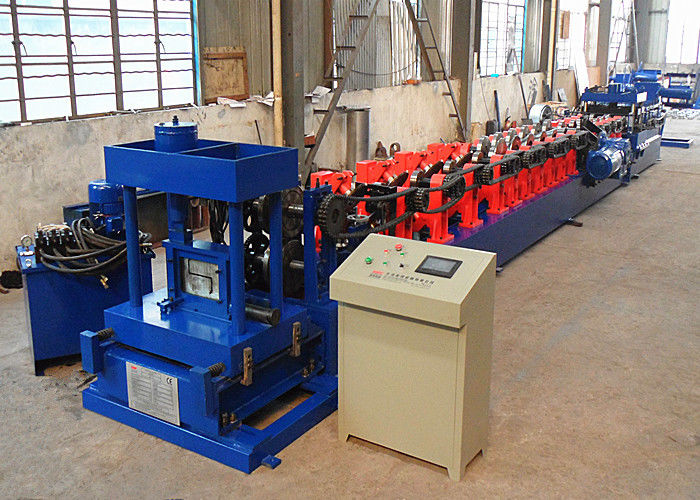

  Main Components Of The Whole Line

Machine Structure

• Strong Machine Base: high quality H beam steel welded machine base(machine bed)
• Cast Iron Roller Stands: cast iron roller stands screwed on machine base

  Z Purlin Profile Drawing And Size

  Main Machine Technical Specifications

1. Material: carbon steel coils; material strength: 235Mpa

2. Material Thickness: 1.6mm - 3.2mm

3. Forming Stations: 17 stations

4. Forming Speed: 12-15m/min not including punching and cutting

5. Main Motor Power: 18.5kw

6. Hydraulic Power: 7.5kw

7. Control System: Panasonic PLC control system; Omron or Siemens or other brand is optional

  Our Advantages  --All our machines undergo strict quality control

*  Mature and professional machine designing

*  High quality raw material selecting

*  High precision on machine parts processing

*  Experienced technicians in machine assembling and testing
