100 - 240mm C Purlin Roll Forming Machine Manual Width Adjustment Type

Product Details:

Place of Origin:	CHINA
Brand Name:	BELIEVE INDUSTRY COMPANY
Certification:	CE
Model Number:	C100-240

Payment & Shipping Terms:

Packaging Details:	Standard Seaworthy Packing
Delivery Time:	60 days
Payment Terms:	30% TT in advance, 70% TT before shipment

Contact Now

Detailed Product Description

Other Name:	Steel Cee Purlin Roll Forming Line	Application:	Can Produce Purlins Of 80mm To 240mm Web Width
Motor Power:	15kw For Roll Forming	Control System:	PLC Control System
Width Adjust:	Manual Adjust The Rollers And Spacers	Cut Motion:	Hydraulic Cutting After Roll Forming
High Light:	c&z purlin forming machine , c z purlin roll forming machine

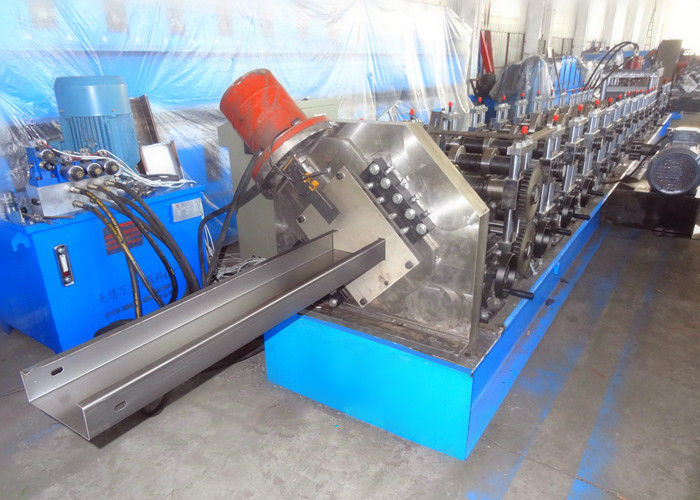

100-240mm C-shape Purlin Roll Forming Machine With Manual Width Adjustment

Brief Description

This metal roll forming machine can be used to produce c purlins with 100mm to 240mm web width by adjusting the rollers and spacers. Main material can be roll formed are carbon steel and galvanized steel coils with the thickness of 1.5mm to 3.0mm.

Whole Line Work Flow

1. Work Direction: left--->right

2. Work Flow: decoiling--->guiding--->leveling--->punching--->roll forming--->cutting--->finished products

100 - 240mm C Purlin Roll Forming Machine Manual Width Adjustment Type

Machine Features

With PLC automatic control system
Can roll form C purlin web widths range from 80mm to 240mm
Manual adjust the rollers and spacers for each purlin dimension
Electrically driven via 2" chain and sprocket
Guide-pole type roller stands easy for changing rollers and spacers

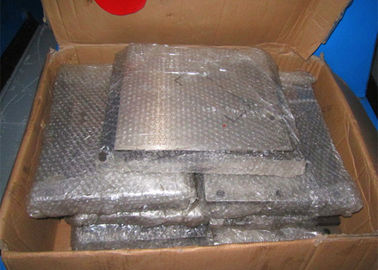

Hydraulic cutting after roll forming, 8 pieces of cutting blades for cutting each dimension
Roll forming speed is 12m to 15m/min, and whole line speed is 6-8m/min
High degree of cutting accuracy and low burr cutting

Whole Line Components And Main Specifications

No.	Main Parts		Quantity	Options
1.	3Ton Single Mandrel Decoiler		1 set	Hydraulic Decoiler Double Head Decoiler High Speed Design Roll Former Automatic Stacker
2.	C Purlin Rollforming Machine	Entry Feeding Guide	1 set
		Leveller	1 set

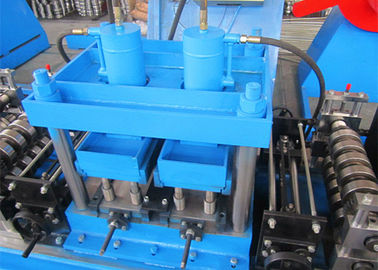

		Punching Unit	1 set
		Roller Stations	1 set
3.	Receiving Tables		2 sets
4.	Control Cabinet		1 set
5.	Hydraulic Station		1 set

Main Machine Specifications

1. Material Thickness: 1.5-3.0mm

2. Forming Speed: 12-15m/min

3. Roll Stations: 14 staions

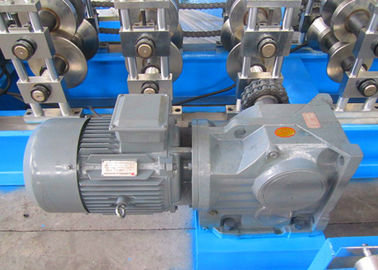

4. Main Motor Power: 15kw

5. Hydraulic Power: 7.5kw

6. Control System: Panasonic PLC control system

7. Drive: Chain Drive

8. Cutting Length Tolerance: ±2mm / 6m; ±3mm / 10m

Dimensions Of Cee Purlins

100 - 240mm C Purlin Roll Forming Machine Manual Width Adjustment Type

Model	a / Web Width	b / Flange Width	c / Lip Width	L / Holes Location	Material Width
C-100	100	40	15	40-220	192
	100	50	20	40-220	222
	100	60	20	40-220	242
C-120	120	50	20	40-220	242
C-120	120	60	20	40-220	262
C-140	140	50	20	40-220	262
C-140	140	60	20	40-220	282
C-160	160	60	20	40-220	302
C-160	160	70	20	40-220	322
C-180	180	60	20	40-220	322
C-180	180	70	20	40-220	342
C-200	200	60	20	40-220	342
C-200	200	70	20	56-220	362
C-220	220	70	20	76-220	382
C-220	220	80	20	96-220	402
C-240	240	70	20	96-220	402
C-240	240	80	20	116-220	422
