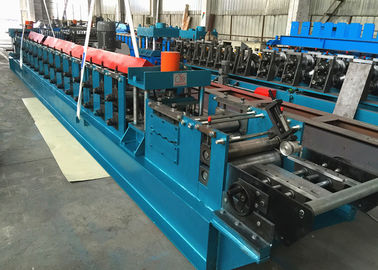

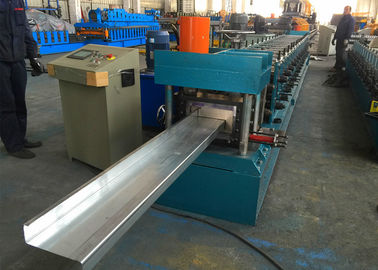

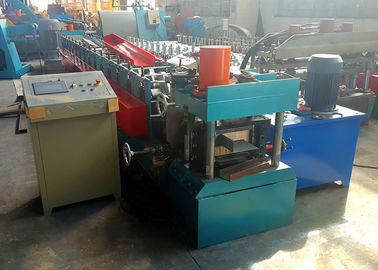

Z Purlin Roll Forming Machine , Z100 - 250 Steel Purlin Making Machine

Z Purlin Roll Forming Machine , Z100 - 250 Steel Purlin Making Machine

    • Z Purlin Roll Forming Machine , Z100 - 250 Steel Purlin Making Machine
    • Z Purlin Roll Forming Machine , Z100 - 250 Steel Purlin Making Machine
    • Z Purlin Roll Forming Machine , Z100 - 250 Steel Purlin Making Machine
    • Z Purlin Roll Forming Machine , Z100 - 250 Steel Purlin Making Machine
  • Z Purlin Roll Forming Machine , Z100 - 250 Steel Purlin Making Machine

    Product Details:

    Place of Origin: CHINA
    Brand Name: Believe Industry Company
    Certification: CE
    Model Number: BELI-Z250

    Payment & Shipping Terms:

    Price: USD 22,500 to 30,000 per set
    Packaging Details: Machine part nude packing and fastened inside the container with steel wire, PLC control system and hydraulic system are wrapped with plastic film.
    Delivery Time: 60 days
    Payment Terms: 30% TT in advance, 70% TT after machine check and accept before delivery
    Supply Ability: 50 sets per quarter
    Contact Now
    Detailed Product Description
    Machine Name: Z Purlin Cold Roll Forming Machine Drive Motion: Chain Drive
    Main Motor Power: 18.5KW Roll Forming Speed: 12-15m/min
    Power Supply: 380V / 50Hz / 3Ph Machine Warranty: 24 Months
    High Light:

    c&z purlin forming machine

    ,

    purlin making machine

    Z100-250 Steel Z Section Purlin Roll Forming Machine With Economical Design



      Brief Description

    This roll forming machine is used to produce Z purlins used as steel building structures. Economical machine design with chain drive and steel plate roller stands has the advantage of relative lost cost, so if customers are limited in their budget, machine with chain drive system and steel plate roll stand type will be a better choice.



    No.  Main Machine Parts  Quantity
    1.

     5Ton Manual Decoiler

     1 unit

    2.

     Roll Forming Unit

     a. Material Feeding Guide

     1 unit

     b. Pinch Roll Feeding And 7-Roll Leveling Device

     c. Hydraulic Punching Device

     d. Roll Forming Mill

     e. Turkey Straightener

     f. Hydraulic Cutting Device / Stop-cutting Device

    3.

     Final Product Output Support Table

     1 unit

    4.

     PLC Control System

     1 unit

    5.

     Hydraulic Station

     1 unit





      Profile Drawing And Measurments Of Z Purlin

    This z purlin machine can produce z purlins with 100mmm to 250mm web width. Users need to manually adjust the roller and spacers to change the gap for producing each dimension. If customers have high-volume of production, we suggest an automatic high speed machine design. Automatic machine will save a lot of time in adjusting and it is easier for users to operate.



     Z Purlin Model

     A

     B

     C

     D

     Feeding Width

     Z-100

     100

     56

     54

     15

     227

     Z-120  120  66  64  20  277

     Z-150

     150

     66

     64

     20

     307

     Z-180  180  66  64  20  337

     Z-200

     200

     66

     64

     20

     357

     Z-220  220  66  64  20  377

     Z-250

     250

     66

     64

     20

     407

    ALL UNIT IN MM



    Z Purlin Roll Forming Machine , Z100 - 250 Steel Purlin Making Machine





      Main Technical Parameters

    1. Material Thickness: 1.6-3.2mm

    2. Yield Strength: ≤345Mpa; mild steel

    3. Forming Steps: 16 steps according to profile and material to use

    4. Forming Speed: 12-15m/min not including punching and cutting

    5. Main Motor Power: 15kw

    6. Control System: Panasonic PLC automatic control system

    7. Drive: electrically driven via 2.0" chain

    8. Cutting Type: cutting after roll forming, users need to change cutting blades for each purlin size

    9. Hydraulic Power: 7.5kw




      Economical Z Purlin Rollforming Machine Features

    • Low cost, a better choice for customers with limit budget
    • Good performance in roll forming each size of Z purlins, but adjust will take several hours
    • Not suggest when users have a high-volume production



    If you need more machine details, please contact us!
