| Place of Origin: | CHINA |
| Brand Name: | Believe Industry Company |
| Certification: | CE |
| Model Number: | BELI-CZ300 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 40000 Per Set |
| Packaging Details: | Machine part nude packing and fastened in the container with steel wire, PLC control system and hydraulic system are wrapped with plastic film. |
| Delivery Time: | 60 days |
| Payment Terms: | 30% TT in advance, 70% TT after check and accept before delivery |
| Supply Ability: | 60 sets per quarter |
| CZ Profile Change: | Manual Adjust C To Z | Size Adjust: | Automatic Adjust |
|---|---|---|---|
| Cutting Type: | Pre-cutting Device | Forming Speed: | 10-15m/min |
| Raw Material: | Cold Rolled Steel Coils, Gi Coils | Material Thickness: | 1.6mm To 3.2mm |
| High Light: | c&z purlin forming machine,c z purlin roll forming machine |
||

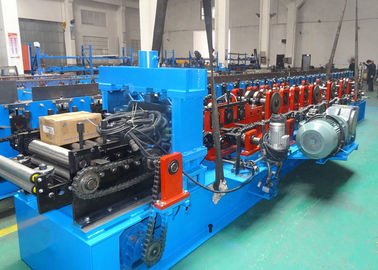

1.6-3.2mm Thick Steel CZ Purlin Cold Roll Former Line With Manually Change Over
Brief Description
This machine is made to produce c-shape and z-shape purlins for steel building construction. Users need to adjust roller directions manually for CZ profiles change over. Purlin web width can be automatically adjust from 100mm to 300mm. Main material to be run are 1.6mm to 3.2mm thick cold rolled steel coils and galvanized steel coils.
| No. | Whole Line Components | Quantity | |
| 1. |
5Ton Manual Decoiler |
1 unit |
|
| 2. |
CZ Purlin Rollformer |
a. Material Guiding Device |
1 unit |
|
b. Pinch Roll Feeding And 7-Roll Leveling Device |
|||
|
c. Hydraulic Pre-cutting Device (Guillotine) |
|||
|
d. Roll Forming Mill |
|||
| 3. |
Final Product Receiving Table |
2 units |
|
| 4. |
Panasonic PLC Control System |
1 unit |
|
| 5. |
Hydraulic Station |
1 unit |
|
Semi-automatic CZ Purlin Machine Features
Compared to a fully automatic CZ purlin production line, this machine can save a lot for clients while also have a good performance. And C to Z change over manually may only need 30 minutes.

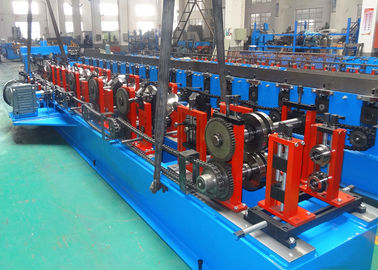

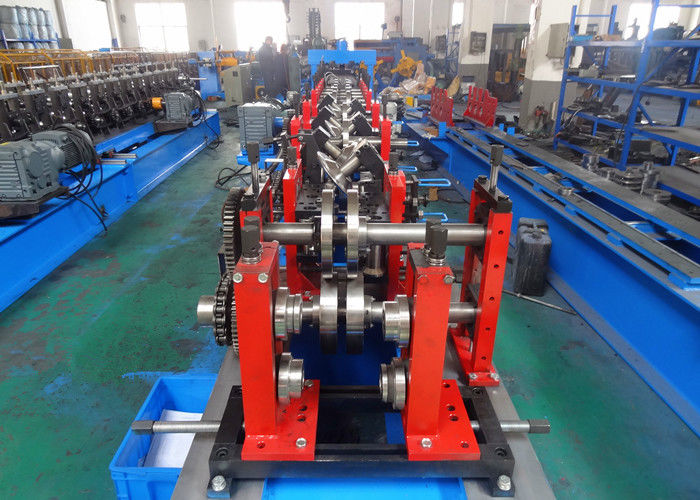

Roller stands are fastened on a plate which can move in and out through a linear guide to change the gap between rollers for roll forming different sizes. Automatic adjusting is easier and more convenient than manually adjust the rollers and spacers.
Competitive Advantage Of Believe Industry Company
1. Over 20 years' experience in cold roll forming machine designing and making
2. Germany roller design software COPRA assist in machine designing
3. More than 50 foreign countries our engineers have been to test our machine
4. Machine warranty is 24 months exclude the wearing parts
5. Lifetime technical support.
Machine Packing And Delivery
1. One 40GP container is needed to load whole CZ purlin forming line
2. Main machine part is nude packing and fastened inside the container with steel wire
3. Electric and hydraulic parts are wrapped with plastic film and fastened with steel wire
Contact us for machine details!
