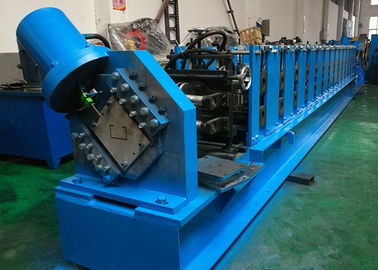

Manually Adjustable Cold Roll Forming Machine , 80 - 250mm C Purlin Roll Former

Manually Adjustable Cold Roll Forming Machine , 80 - 250mm C Purlin Roll Former

    • Manually Adjustable Cold Roll Forming Machine , 80 - 250mm C Purlin Roll Former
    • Manually Adjustable Cold Roll Forming Machine , 80 - 250mm C Purlin Roll Former
    • Manually Adjustable Cold Roll Forming Machine , 80 - 250mm C Purlin Roll Former
    • Manually Adjustable Cold Roll Forming Machine , 80 - 250mm C Purlin Roll Former
  • Manually Adjustable Cold Roll Forming Machine , 80 - 250mm C Purlin Roll Former

    Product Details:

    Place of Origin: Wuxi, China
    Brand Name: Beli
    Certification: CE
    Model Number: BELI-C250

    Payment & Shipping Terms:

    Price: Contact Us For Best Price
    Packaging Details: Machine nude packing, electric system and hydraulic system coated with plastic film.
    Delivery Time: 50 to 60 days
    Payment Terms: T/T, L/C
    Supply Ability: 60 sets per quarter
    Contact Now
    Detailed Product Description
    Other Name: Steel C Purlin Manufacturing Equipment C Purlin Sizes: 80-250mm
    After-sale Service: Engineers Available To Serve Machine Overseas Machine Warranty: 24 Months
    Control System: Panasonic PLC Control System Drive: Chain Drive
    High Light:

    c&z purlin forming machine

    ,

    purlin making machine

    Manually Adjustable C Purlin Cold Roll Forming Machine For C80-250 Purlins



      Description

    This C purlin machine is delivered to Argentina. It is made to produce 80mm to 250mm C purlins according to clients' requirement. Main material to be roll formed are cold rolled steel coils and galvanized steel coils with 1.5mm to 3.0mm thickness.



    There are 3 groups of holes on this C purlin. Believe Industry Company has improved the design to optimize the structure of punching unit in order to shorten the length of the machine. This new punching unit has the advantages of quick punching and reset, more stable and easier to maintain than old ones.





      Machine Features

    • Can roll form C-shape purlin with web widths from 80mm to 250mm
    • Manually adjust the spacers to change the gap between rollers for producing different purlin dimensions
    • Electricalli driven via chain and sprocket

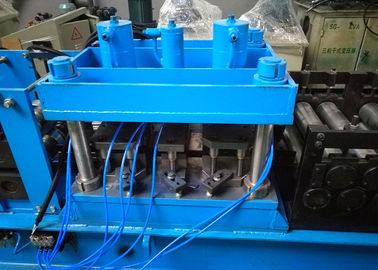

    • Hydraulically powered punching before roll forming
    • Hydraulically powered cutting after roll forming and straightening

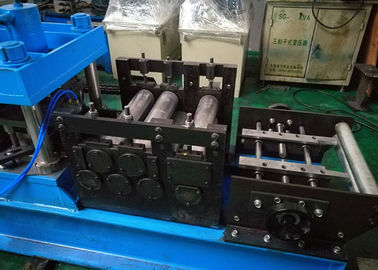

    • Good flatness of products with 5-roller levelling device
    • Perfect straightness of purlins
    • Low burr cutting and exact cutting length accuracy



      Main Componnets of C Channel Machine

    No.  Machine Parts Quantity
    1.  3Ton Single Mandrel Uncoiler 1 set

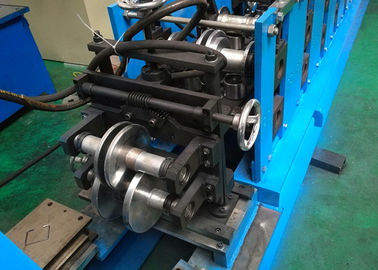

    2.  C Purlin Rollformer  Entry Guiding Device  Installed on a common machine base 1 set
     Material Levelling Device
     Hydraulic Punching Device
     Roller Stations
     Turkey Head Straightener
     Hydraulic Cutting Device
    3.  Final Product Receiving Tables 1 set
    4.  Electric Control Cabinet 1 set
    5.  Hydraulic Station 1 set





      Main Technical Parameters

    1. Applicable materials: galvanized steel coils, cold rolled steel coils

    2. Material thickness: 1.5mm to 2.5mm

    3. Roll forming stations: 14 stations

    4. Roll forming speed: 0-15m/min(not including punching and cutting)

    5. Main roll forming power: 15kw
    6. Diameter of shafts: 70mm, solid roller shafts

    7.  Hydraulic power: 7.5kw

    8. Roller Material: GCr15 with chrome plated

    9. Shaft Material: 40Cr with heat treatment and chrome plated



    Contact us for machine quote!
