Place of Origin: | CHINA |
Brand Name: | BELIEVE INDUSTRY COMPANY |
Certification: | CE |
Model Number: | BELI-C200 |
Packaging Details: | Machine part is nude packing, electric and hydraulic system wrapped with plastic film. |
---|---|
Delivery Time: | 50-60 days |
Payment Terms: | T/T, L/C, |
Application: | For Production C Channel | Forming Stations: | 12 Stations |
---|---|---|---|
Drive: | 1.2" Double Chain Drive | Line Speed: | 4-6m/min |
After-sale Service: | Engineer Available To Serve Machine At Users' Factory | Machine Warranty: | 24 Months |
High Light: | c&z purlin forming machine,purlin making machine |

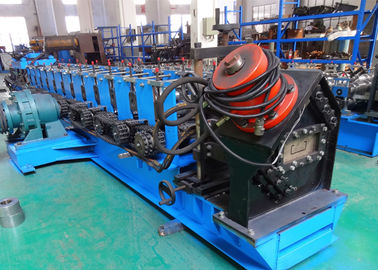

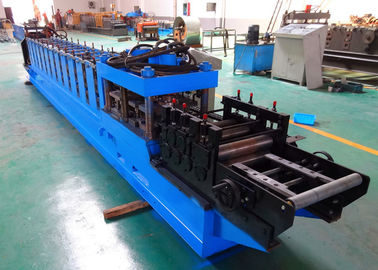

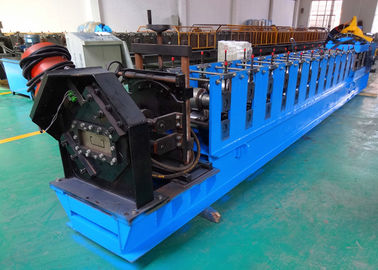

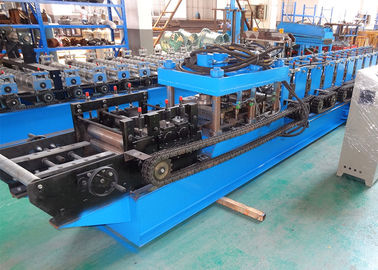

Double Chain Drive C Channel Purlin Making Machine With Economical Design
Description
This machine is designed to produce C shape channels for steel structures. Economical machine design with chain drive and manually adjust is a good choice for clients with limit budget. With continuous punching holes on the c channel, whole line speed of is approx 4-6m/min. Believe Industry Company have also high speed machine design for high-volume productivity with line speed up to 20-30m/min.
This c channel machine equipped Turk's head straightener to ensure the perfect straightness of the final product. We have serious quality control on every procedure of machine manufacturing, and machine will be delivered only after check and accept by clients.
Main Componnets of C Channel Purlin Machine
No. | Economical Design | Options For High Speed Machine Design |
1. | 3Ton Manual Uncoiler | Double Side Uncoiler, hydraulic decoiler |
2. | Entry Feeding Guide |
7-Roller Leveller High Speed Power Press With Servo Feeder |
3. | 5-Roller Leveller | |
4. | Punching Unit | |
5. | C Channel Purlin Rollformer | Gear box drive |
6. | Hydraulic Cutoff | Servo flying cutoff, infinitely adjustable cutting device |
7. | Product Receiving Tables | Automatic receiving table |
Main Technical Parameters
1. Applicable materials: galvanized steel coils, cold rolled steel coils
2. Material thickness: 1.5mm to 2.5mm
3. Roll forming stations: 12 stations
4. Roll forming speed: 0-15m/min(not including punching and cutting)
5. Main roll forming power: 15kw
6. Diameter of shafts: 70mm
7. Hydraulic power: 7.5kw
Machine Loading And Packing
> One 40GP container is needed for c channel roll forming line.
> Main roll forming mill is nude packing with strong steel wire fastened inside the container
> Electric control box and hydraulic station are wrapped with plastic film.
BELIEVE INDUSTRY is a professional metal forming machine manufacturer, contact us today for more machine information.
Contact Person: Mr. Darren Mao
Tel: +86 186 16927760
Fax: 86-510-8827-9556
