| Place of Origin: | CHINA |
| Brand Name: | BELIEVE INDUSTRY |
| Certification: | CE |
| Model Number: | BELI-C80-250 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us For Best Price |
| Packaging Details: | Machine nude packing, electric system and hydraulic system coated with plastic film. |
| Delivery Time: | 45 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 20 sets/ Month |
| Other Name: | Cold Roll Forming Machine Line For 80-250mm C Purlin | Application: | For Producing C Purlins With Variable Web Width From 80mm To 250mm |
|---|---|---|---|
| After-sale Service: | Engineers Available To Serve Machine Overseas | Machine Warranty: | 24 Months |
| Main Power: | 15kw | Hydraulic Power: | 11kw |
| High Light: | purlin making machine,c z purlin roll forming machine |
||

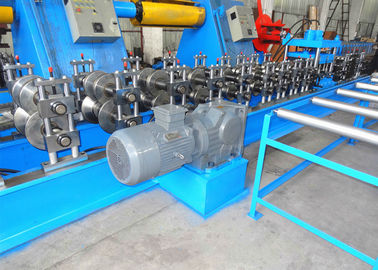

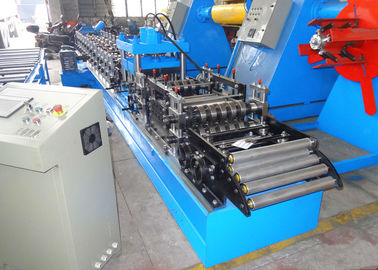

C80-250 C Purlin Roll Forming Machine Line With Automatic PLC Control System
Brief Description
This C shape purlin machine is designed to produce C purlins with the web width from 80-250mm and thickness of 1.5mm to 2.5mm. Users need to adjust the spacers between rollers for roll forming each purlin dimension.
With hydraulically powered post-cutting device of this c purlin production line, users need to change cutting blades for each size. Believe Industry Company have developed a new cutting device with infinitely adjustment, with this new technology, only one cutting blade can meet all the cutting demands.
Machine Features
Main Componnets of C80-250 Purlin Machine
| No. | Item | Quantity | Options |
| 1. | 3Ton Manual Decoiler | 1 set | Automatic Decoiler |
| 2. | Feeding Guide | 1 set | Servo Feeder |
| 3. | 7-Roller Leveller | 1 set | Individual Leveller |
| 4. | Pre-punching Unit | 1 set | Individual Punching Device / High Speed Power Press |

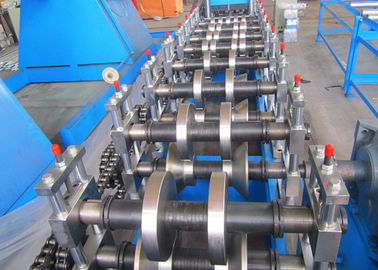

| 5. | C Purlin Rollformer | 1 set | Gear Box Drive, Automatic Size Adjust Design |

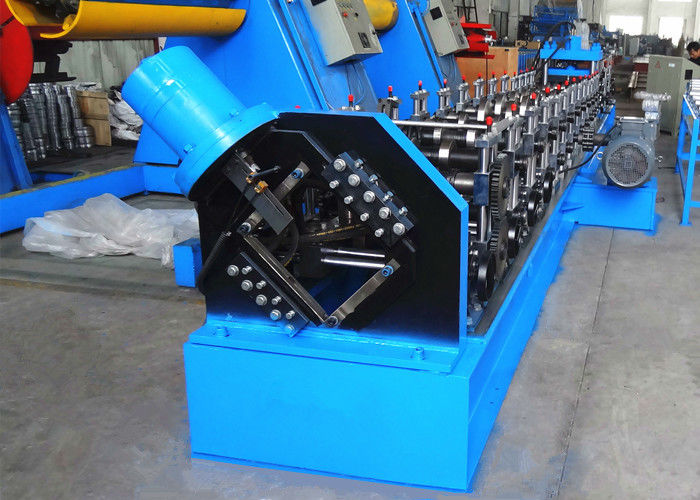

| 6. | Hydraulic Cutoff | 1 set | Infinitely Adjustable Cutting Device |
| 7. | Receiving Tables | 2 sets | Auto Stacker |
Main Technical Parameters
1. Applicable materials: galvanized steel coils, cold rolled steel coils
2. Material thickness: 1.5mm to 2.5mm
3. Roll forming stations: 13 stations
4. Roll forming speed: 10-15m/min
5. Main roll forming power: 15kw
6. Diameter of shafts: 70mm
7. Hydraulic power: 11kw for punching holes and cutting
Packing And Delivery
 |
|
|
|
|
|
