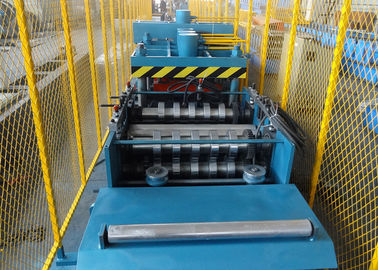

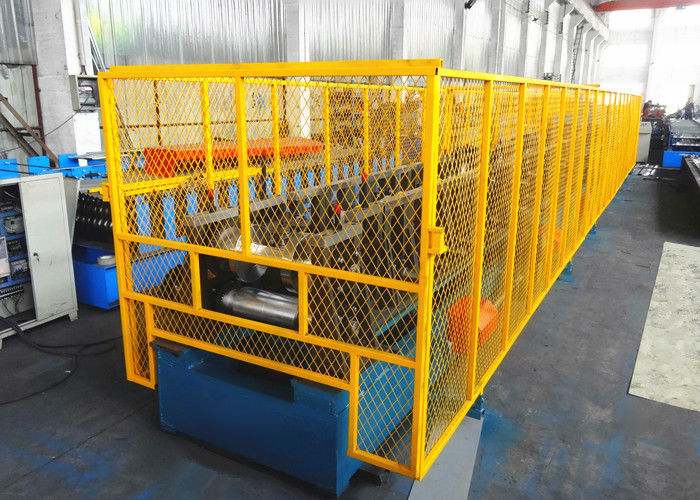

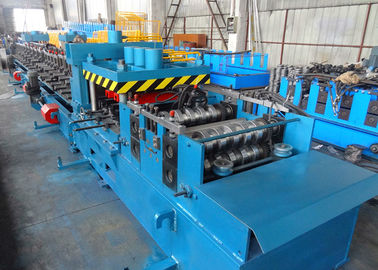

Metal Sigma Profile Purlin Roll Forming Machine With Automatic Width Adjust
Description
The sigma profile roll forming machine is a complete production line for manufacturing 1.2mm to 2.0mm thick purlins with sigma profile. This machine is also known as M-shape purlin rollforming line. Main components of whole production line are 3Ton uncoiler, feeding device, levelling unit, punching unit, pre-cutting device, roll forming stations and receiving tables.

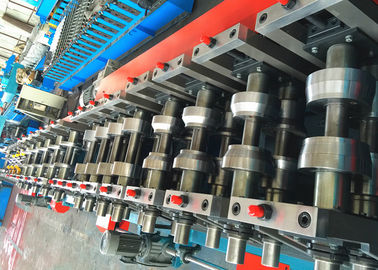

Automatic Size Adjust
Main Machine Technical Parameters
Sigma Profile Material Information
1. Raw Material: galvanized steel coils
2. Material Strength: 235-345Mpa
3. Material Thickness: 1.2mm to 2.0mm
4. Material Width: 300-600mm base on each dimension
Main Technical Parameters
| No. | Item | Technical Parameter |
| 1. | Roller Stations | 21 stations |
| 2. | Forming Speed | 12-15m/min |
| 3. | Main Power | 22kw for roll forming |
| 4. | Control System | automatic PLC control system |
| 5. | Drive Motion | electrically drive via chain and sprocket |
| 6. | Power For Adjustment | 1.5kw for roller stands moving in and out through the linear guide |
| 7. | Cutting Type | hydraulically powered cutting, pre-cutting type |
| 8. | Hydraulic Power | 11kw for punching and cutting |
Sigma Profile Drawing For Reference
Layout Of Sigma Purlin Rollforming Line
