| Place of Origin: | CHINA |
| Brand Name: | BELIEVE INCUSTRY |
| Certification: | CE |
| Model Number: | C100-350 |
| Price: | USD 40000 - 50000 per set |
|---|---|
| Packaging Details: | Main machine nude packing, electric and hydraulic parts are wrapped with plastic film. |
| Delivery Time: | 75 to 90 days |
| Payment Terms: | 30% TT as advance payment, 70% TT before shipment |
| Supply Ability: | 45 sets per month |
| Other Name: | CZ Purlin Change Over Roll Forming Machine | Machine Features: | Equipped With Infinitely Adjustable Cutting Dies |
|---|---|---|---|
| Advantage: | Quick Change Dies For Each Profile And Dimension | CZ Dimension: | 100-350 CZ Purlins |
| Control System: | Panasonic PLC Control System | Drive Motion: | Chain And Sprocket |
| High Light: | purlin making machine,c z purlin roll forming machine |
||

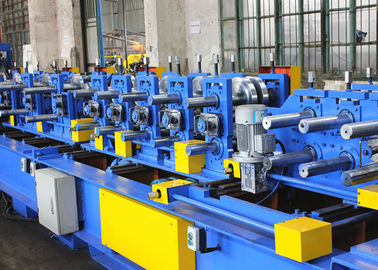

CZ Purlin Interchangeable Roll Forming Machine With Infinitely Adjustable Cutting Dies
Description
This CZ purlin machine can produce C-shape U-shape and Z-shape purlins with the web width of 100mm to 300mm. Material can be roll formed are galvanized steel coils with 1.5-4.0mm thickness. Main components of this production line are decoiler, guiding and leveling device, pre-punching device, roll former, hydraulic cutting device, collecting table, hydraulic station, etc.
Machine Advantages
Manually adjust the direction of the first groups of rollers to change profile C to Z

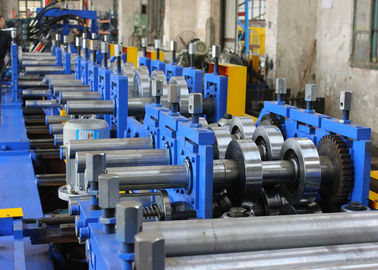

One side or both sides of the rollers are installed on a movable base, which can move in and out through the linear guide to adjust the gap between rollers according to each purlin dimension

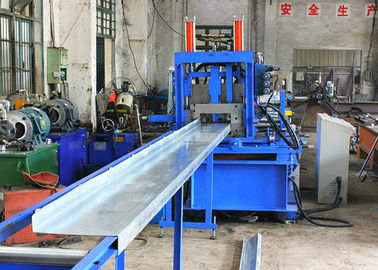

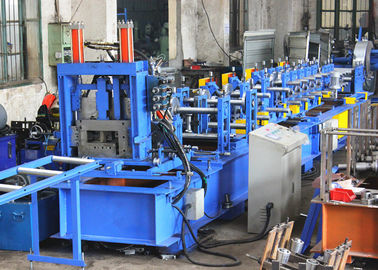

Upgraded cutting technology with quick change dies, no need to change cutting blades for each profile and dimension. It's easy to do a little adjustment of the cutting device.
Main Technical Parameters
| No. | Item | Technical Parameters |
| 1. | Coil Material | Galvanised steel coils |
| 2. | Material Thickness | 1.5mm to 4.0mm |
| 3. | Material Strength | 235Mpa to 345Mpa |
| 4. | Roller Stations | 20 stations base on profile and material thickness and strength |
| 5. | Forming Power | 15kw |
| 6. | Forming Speed | 12-15m/min not including punching and cutting, we also have high speed design |
| 7. | Size Adjust Power | 1.5kw * 2 |
| 8. | Cutting Type | Hydraulic cutting after roll forming |
| 9. | Hydraulic Power | 7.5kw |
| 10. | Control System | Panasonic PLC automatic control system |
Drawing and Measurements Of CZU Purlins
CZ Purlin Rollfoming Machine Layout
