High Speed Cold Roll Forming Machine , Quick Interchangeable C Purlin Machine

High Speed Cold Roll Forming Machine , Quick Interchangeable C Purlin Machine

    • High Speed Cold Roll Forming Machine , Quick Interchangeable C Purlin Machine
    • High Speed Cold Roll Forming Machine , Quick Interchangeable C Purlin Machine
    • High Speed Cold Roll Forming Machine , Quick Interchangeable C Purlin Machine
  • High Speed Cold Roll Forming Machine , Quick Interchangeable C Purlin Machine

    Product Details:

    Place of Origin: Wuxi, China
    Brand Name: BELIEVE INDUSTRY COMPANY
    Certification: CE
    Model Number: C100-300

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: USD 32000-35000/ set
    Packaging Details: Nude Packing (roller surface covered plastic film)
    Delivery Time: 50 to 60 days
    Payment Terms: T/T, L/C
    Supply Ability: 20 sets per month
    Contact Now
    Detailed Product Description
    Machine Type: Cold Roll Forming Machine Machine Model: C100-300 C Purlin Machine
    Drive: Double Chain Drive Motor Power: 15KW
    Thickness: Max 3.5mm Machine Feature: Automatic Width Adjust
    High Light:

    c&z purlin forming machine

    ,

    purlin making machine

    High Speed Quick Interchangeable C Purlin Machine Line | Believe Industry



      Brief Description

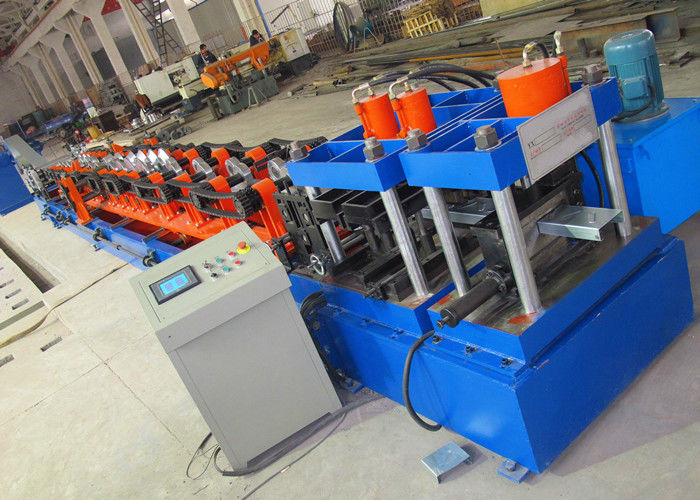

    This C purlin machine is used to produce C-shape purlins with the web width from 100-300mm. Main components the whole line are decoiler, feeding guide, 7-roll leveling device, roll forming unit, hydraulic punching unit, post-cutting device, finished products receiving tables and hydraulic station, etc.



    Machine Features

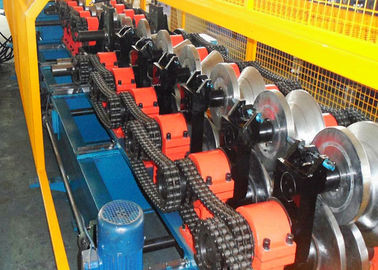

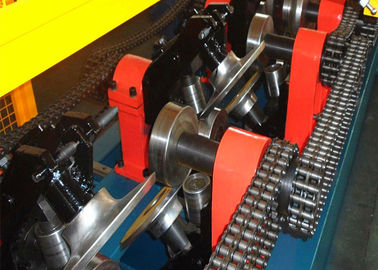

    • Strong Machine Structure: high quality H beam steel welded machine base, cast iron roll stands screwed on machine base
    • Machine base and roller stands go under processing by CNC gantry milling machine
    • Drive: double-chain drive
    • Automatic Width Adjust: one side of the roll stands can move in and out through the linear guide as an integration to change the gap between the opposite rolls to realizing the roll forming of c purlins with different dimensions
    • Post Punching And Cutting Device: punching pattens and cutting after roll forming



    High Speed Cold Roll Forming Machine , Quick Interchangeable C Purlin Machine



      Main Machine Technical Specifications

    No.  Item  Technical Specifications
    1.  Raw Material  Carbon Steel, Galvanized Steel, 235-345Mpa
    2.  Material Thickness  1.5-3.0mm
    3.  Material Width  Depend on specific profile
    4.  Diameter of Shaft  70mm solid shafts
    5.  Material of Shaft  45# steel
    6.  Material of Rolls  GCr15 Over quenching HRC 58-62°
    7.  Main Power  15KW
    8.  Forming Speed  15-20m/min
    9.  Forming Stations  14 stations
    10.  Cutting Type  Hydraulic cutting
    11.  Cutting Blade  Cr12 Mov

































      100-300 C Purlin Details

    1. Model: C100-300

    2. Applicable Material: cold rolled steel coils, galvanized steel coils

    3. Material Thickness: 1.5mm - 3.0mm

    4. Coil Width: 200mm - 500mm

    5. Material Strength: 235Mpa

    High Speed Cold Roll Forming Machine , Quick Interchangeable C Purlin Machine

    ALL UNIT IN MM

    Item

    A

    B

    C

    L

    Material Width

    T - 1.5

    T - 3.0

    1. 100 50 20 40-220 228 222
    2. 150 50 20 40-220 278 272
    3. 200 85 20 98-220 398 392
    4. 250 85 20 148-220 448 442
    5. 300 85 20 198-220 498 492



    For more machine information, please contact us!
