Metal Ribbed Ridge Cap Roll Forming Machine For Roof Joint Sealing

Metal Ribbed Ridge Cap Roll Forming Machine For Roof Joint Sealing

    • Metal Ribbed Ridge Cap Roll Forming Machine For Roof Joint Sealing
    • Metal Ribbed Ridge Cap Roll Forming Machine For Roof Joint Sealing
    • Metal Ribbed Ridge Cap Roll Forming Machine For Roof Joint Sealing
  • Metal Ribbed Ridge Cap Roll Forming Machine For Roof Joint Sealing

    Product Details:

    Place of Origin: CHINA
    Brand Name: BELIEVE INDUSTRY COMPANY
    Certification: CE
    Model Number: BELI SERIES

    Payment & Shipping Terms:

    Packaging Details: Main roll former is fastened inside of the container with nude packing, electric parts and hydraulic parts are wrapped with plastic film.
    Delivery Time: 45 to 60 days
    Payment Terms: 30% TT in advance, 70% TT before delivery after machine check and accept
    Supply Ability: 60 sets per quarter
    Contact Now
    Detailed Product Description
    Other Name: Metal Roll Forming Machine For Galvanized Steel Ridge Caps Usage: Used To Produce Metal Ribbed Roof Ridge Caps
    Control System: PLC Control System Drive: Electrically Powered Via Chain
    Forming Power: 5.5kw Forming Speed: 15m/min

    Metal Ribbed Ridge Capping Roll Forming Machine For Sealing The Roof Joint



      Brief Description

    Roof ridge caps are used to seal the roof joints between the two sides of a pitched roof. This metal roll forming machine is used to produce ribbed ridge capping with galvanized steel coils and color steel coils. Whole line is of high automation combining cold roll forming technology, punching press technology and automatic control technology.



    Standard Machine Feature

    • H beam steel welded machine base with 18mm thick steel plated welded roller stands.
    • Solid shafts of 75mm diameter, with heat treatment and chromed with 0.05mm thickness.
    • Rollers are all with heat treatment and 0.05mm thickness chrome plated.
    • Electrically driven rollers via chain and sprockets.
    • PLC control system with button and touch screen operation.
    • Common speed of ridge capping production line is 3-4m/min.

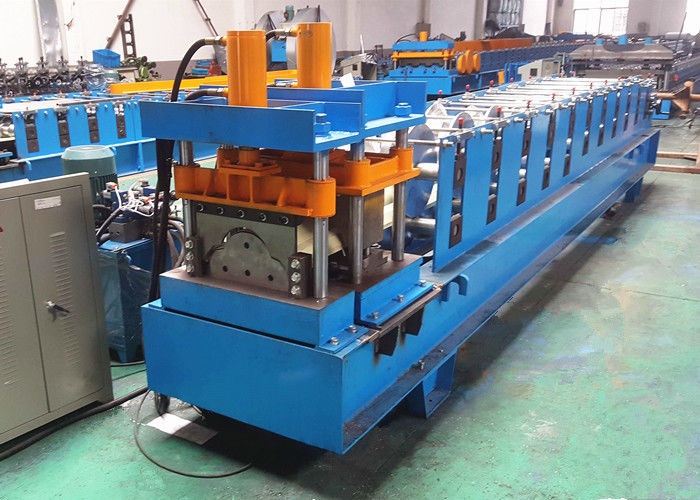

      Whole Line Components And Function



    No.  Each Part Of The Line Quantity  Function And Usage
    1.  5Ton Uncoiler / Decoiler 1 set  Hold the steel coils and unwind the coils
    2.  Ridge Cap Cold Roll Former 1 set  Roll form the material into required profile
    3.  Punching and Cutting Device 1 set  Punch ribs on formed ridge cap and cut to desired length
    4.  Run Out Table 2 sets  Support ridge cap when it exits the machine
    5.  Electric Control Cabinet 1 set  Highly automatic with PLC control system
    6.  Hydraulic Station 1 set  Hydraulically powered for punching and cutting



    Metal Ribbed Ridge Cap Roll Forming Machine For Roof Joint Sealing



    Work process of the ridge cap roll forming line: steel coils loading on the decoiler--->coils unwinding

    --->material feeding and guiding at the entrance of the roll former--->roll forming to required profile---> punching ribs on the formed roof ridge caps--->cut the steel ridge caps into desired length--->final product output

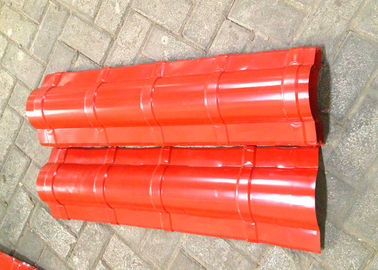

    Round Type Ribbed Ridge Cap Profile And Final Product

    Metal Ribbed Ridge Cap Roll Forming Machine For Roof Joint Sealing
