| Place of Origin: | CHINA |
| Brand Name: | BELIEVE INDUSTRY COMPANY |
| Certification: | CE |
| Model Number: | BELI-ROOF |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | According to customers' requirement |
| Packaging Details: | Nude Packing And Fastened Inside Of The Container, Electric And Hydraulic Parts Are Wrapped With Plastic Film |
| Delivery Time: | 50 to 60 days |
| Payment Terms: | 30% TT in advance, 70% TT after machine check and acceptance before shipment |
| Supply Ability: | 45 sets per quarter |
| Application: | Used To Produce Corrugated And Rib Profile Sheets | Advantages: | Can Produce Two Types Of Roof Or Wall Sheet In One Machine |
|---|---|---|---|
| Machine Speed: | 10-15m/min | Control System: | PLC Control System |
| Drive System: | Electrically Chain Drive | Cutting System: | Hydraulically Cutting System |

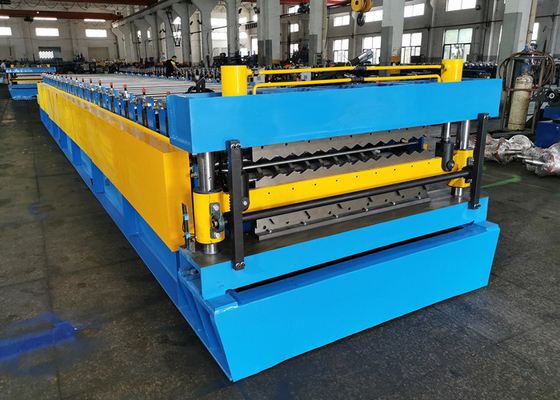

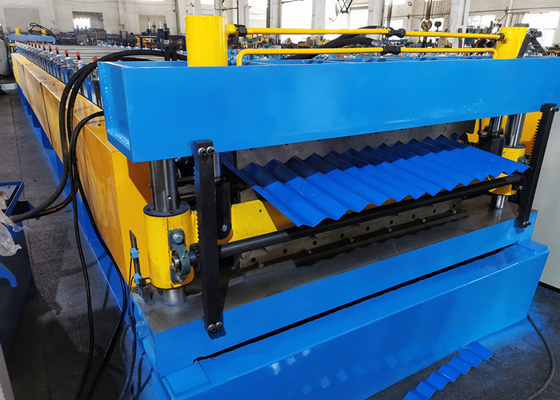

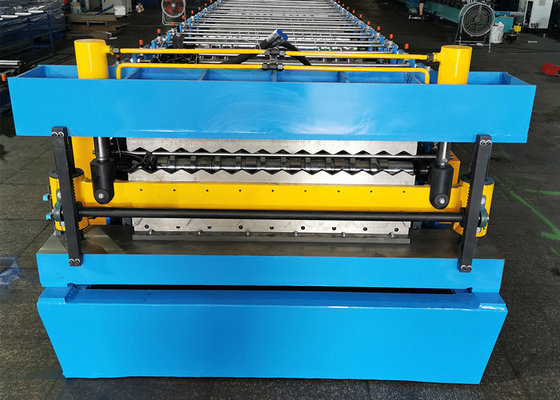

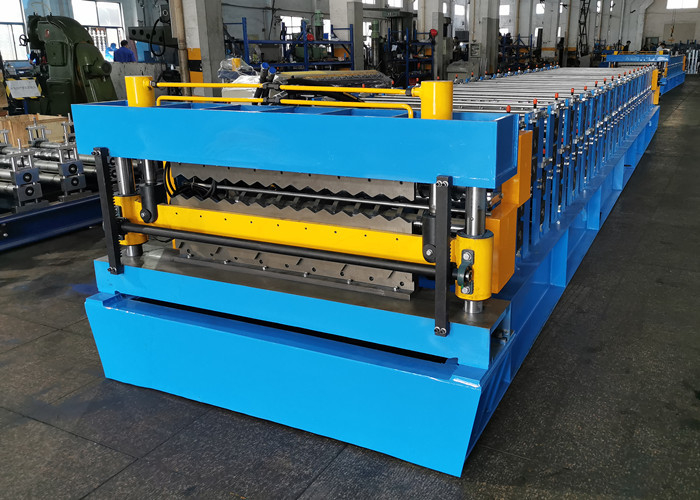

Double Layer Metal Roofing Sheet Roll Forming Machine For Corrugated Sheets and 6 Rib Profile Sheets
Like a single layer roof/wall sheet roll forming machine, double layer machine is also used for producing metal roof/wall sheet with galvanized steel coils or color coated steel coils. The difference is that with double layer design, one machine can produce two different roof or wall cladding panels.

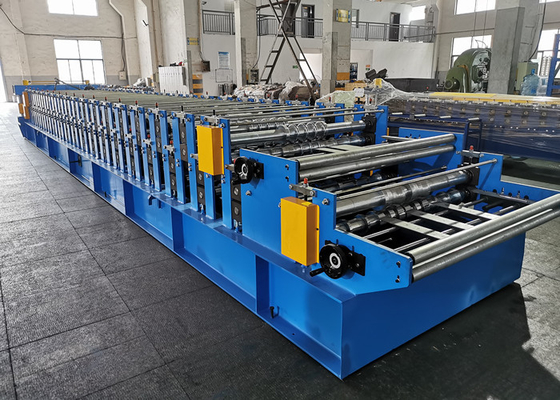

Two sets of roll forming units are installed on common machine base, and both up and bottom roll forming units share the decoiler, motor, control system, hydraulic system. So double layer machine solution has the advantages of saving cost and space.
Machine Layout For Reference
Main Machine Components
| No. | Main Components | Brief Description | Qty |
| 1. | 5T Decoiler | For supporting and unwinding t | 1 unit |
| 2. | Roll Forming Unit | Double layer design, top layer for corrugated sheets; bottom layer for rib profiles | 1 unit |
| 3. | Hydraulic Cutting Device | Hydraulic powered cutting device, stop cutting type | 1 unit |
| 4. | Runout Table | For supporting the final products after cutting, unpowered type | 2 sets |
| 5. | Electrical Control Cabinet | PLC control system | 1 unit |
| 6. | Hydraulic Station | Offer powered for cutting | 1 unit |

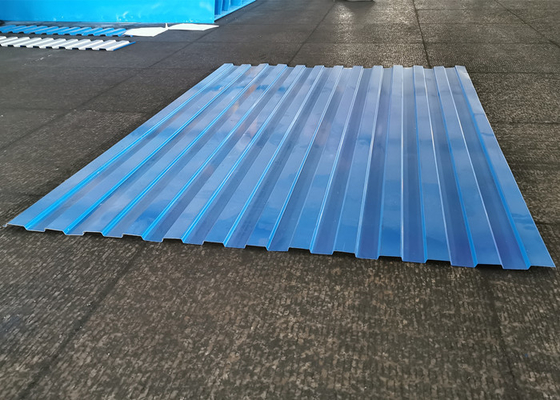

Popular roofing profiles: corrugated sheets, IBR sheets, AG panels, R101 panels, box profiles, widespan, IT4, IT5 profiles, etc. Send us detailed information of the roofing sheet you want to produce, we ensure both machine quality and finished products quality.
Roll forming machine with double layer design is one of the machine solutions for producing two different profiles in one machine. We also have other machine designs for producing different profiles to save cost for clients, such as rafted type. Contact us for more machine details.
Main Machine Technical Parameters
1. Material can ne roll formed: color steel coils, galvanized steel coils, galvalume coils
2. Material thickness: 0.3-0.8mm
3. Forming steps: 16 steps for rib profile, 18 steps for corrugated profiles
4. Main power: 5.5kw for roll forming
5. Material of shafts: 40Cr solid shafts, with 75mm in diameter
6. Material of rollers: high quality No.45 steel, with heat treatment and tempered
7. Cutting type: 4kw hydraulic powered cutting, stop cutting type
8. Material of cutting blades: Cr12Mov, HRC58-62
9. Transmission system: electrical driven via chain
10. Machine speed: 12-15m/min
If you need more machine information, please contact us.
