Home ProductsCNC Roll Forming Machine

U Track Roll Forming Machine, Steel U Shape Rack Bracing Section Rollformer

U Track Roll Forming Machine, Steel U Shape Rack Bracing Section Rollformer

    • U Track Roll Forming Machine, Steel U Shape Rack Bracing Section Rollformer
    • U Track Roll Forming Machine, Steel U Shape Rack Bracing Section Rollformer
    • U Track Roll Forming Machine, Steel U Shape Rack Bracing Section Rollformer
    • U Track Roll Forming Machine, Steel U Shape Rack Bracing Section Rollformer
    • U Track Roll Forming Machine, Steel U Shape Rack Bracing Section Rollformer
    • U Track Roll Forming Machine, Steel U Shape Rack Bracing Section Rollformer
  • U Track Roll Forming Machine, Steel U Shape Rack Bracing Section Rollformer

    Product Details:

    Place of Origin: CHINA
    Brand Name: BELIEVE INDUSTRY COMPANY
    Certification: CE
    Model Number: BELI-CUSTOM

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Packaging Details: Nude Packing And Fastened Inside Of The Container By Steel Wire
    Delivery Time: 45 days
    Payment Terms: 30% TT as down payment, 70% TT after machine check and accept before shipment
    Supply Ability: 45 sets per quarter
    Contact Now
    Detailed Product Description
    Application: Used To Produce U-shape Sections As Required Control System: PLC Control System
    Drive System: Electrically Drive By Gear Box Cutting System: Flying Cutoff
    Line Speed: 20m/min Production Capacity: 2000 Pcs / 8 Hours (count As 2 Meters Length)

    U Track Roll Forming Machine



    Brief Description

    Believe Industry Company designs and manufactures roll forming machines for various profiles according to clients' requirement. This machine is built for producing U-shape sections. It is easy to operate the machine with PLC control system. Users only need to key in required production data on touch screen, the machine will start automatically from decoiling to cutting.





    Main Machine Components

    • Decoiler
    • Rolling Mill
    • Drive System
    • Straightening Unit
    • Cutting System
    • Runout Table

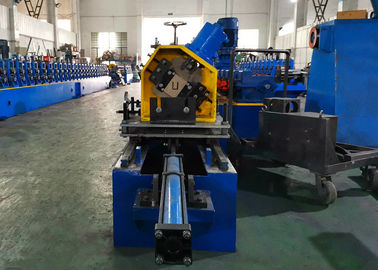

    U Track Roll Forming Machine, Steel U Shape Rack Bracing Section Rollformer



    Decoiler

    Depend on the weight and width of raw material, we offer 2Ton, 3Ton, 5Ton, or 8Ton single arm decoilers. This U track rollforming line is equipped with a 3Ton manual decoiler. Decoiler mandrel expansion and loosening is adjusted manually.



    Rolling Mill

    Rolling mill is consisted by machine base, roller stands, shafts, rollers, drive system. Cast iron roller stands bolted on the machine base forms main rolling machine structure. All shafts material is 40Cr for great strength. Rollers are quenched and chromed. Machine runs stable with gear box transmission.



    Straightening Unit

    Turkey straightener is equipped after roll forming before cutting. Final product will be perfectly staight.



    Cutting System

    Flying cutting system ensures the continuous running of whole line. No need to stop to cut, line speed is approx. 20m/min. Final product can be cut at any length required.
