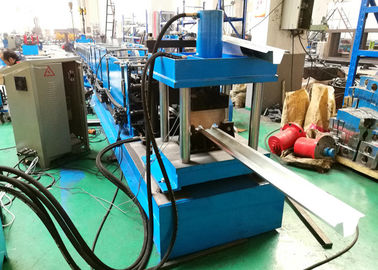

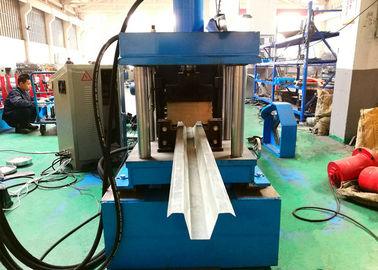

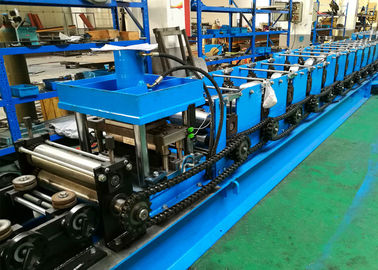

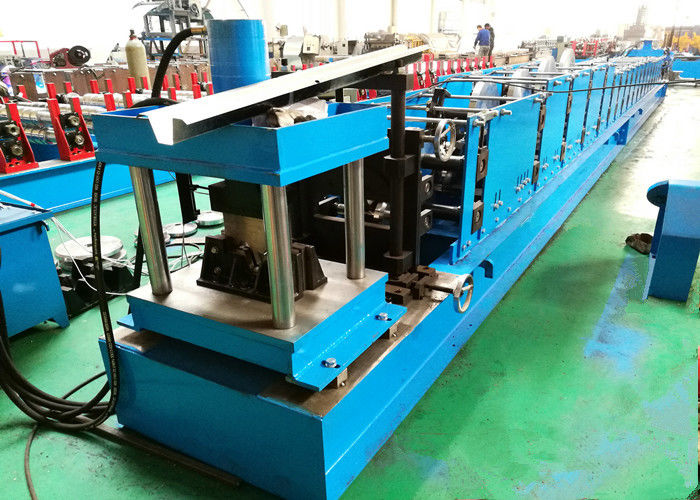

G550 Material CNC Roll Forming Machine , Galvanized Steel Hat Channel Roll Former

G550 Material CNC Roll Forming Machine , Galvanized Steel Hat Channel Roll Former

    • G550 Material CNC Roll Forming Machine , Galvanized Steel Hat Channel Roll Former
    • G550 Material CNC Roll Forming Machine , Galvanized Steel Hat Channel Roll Former
    • G550 Material CNC Roll Forming Machine , Galvanized Steel Hat Channel Roll Former
    • G550 Material CNC Roll Forming Machine , Galvanized Steel Hat Channel Roll Former
  • G550 Material CNC Roll Forming Machine , Galvanized Steel Hat Channel Roll Former

    Product Details:

    Place of Origin: CHINA
    Brand Name: Believe Industry Company
    Certification: CE
    Model Number: Top Hat Section Roll Forming Machine

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Contact Us For Latest Price
    Packaging Details: Main machine part nude packing, electric parts and hydraulic station are wrapped with plastic film.
    Delivery Time: 45 to 60 days
    Payment Terms: 30%TT in advance, 70% TT after machine check and accept before delivery
    Supply Ability: 60 sets per quarter
    Contact Now
    Detailed Product Description
    Material: G550 Galvanized Steel Main Power: 7.5kw
    Forming Speed: 10-15m/min Forming Steps: 18 Steps
    Warranty: 24 Months After-sale Service: Engineers Available To Serve Machine Overseas

    Galvanized Steel Hat Channel Roll Forming Machine For G550 Material



      Brief Description

    Structual metal top hats are an economical alternative to purlins and conventional timber as roofing support. This roll forming machine is designed to produce top hat sections with high-tensile G550 galvanized steel coils according to the profile drawing and specific requirements of Bangladesh our clients.



    Machine Features

    • Can run material thickness from 0.75mm to 1.2mm
    • With PLC control system
    • Electrically driven via chain and sprocket
    • H beam steel welded machine base with 20mm thick steel plate welded on as main rollformer structure
    • Unpowered decoiler for hold and unwinding the coils
    • Pre-punching unit for punching holes as required
    • Turkry straightener for perfect straightness of final products
    • Hydraulically powered cutoff
    • Unpowered support run out table



    Most Essential Technical Parameters

    No.  Technical Parameters  Hat Channel Profile
    1.  Forming Steps: 18 steps G550 Material CNC Roll Forming Machine , Galvanized Steel Hat Channel Roll Former
    2.  Main Motor Power: 7.5kw
    3.  Forming Speed: 10-15m/min
    4.  Roll Material: No.45 steel
    5.  Shaft Material: 40Cr, with chrome plated
    6.  Drive: via chain drive
    7.  Hydraulic Power: 5.5kw
    8.  Cutting Blade Material: Cr12 Mov, HRC58-62





      Components Of This Hat Channel Rollformer

    Whole Line Components

    No.  Item  Description Quantity
    1.

     3Ton Decoiler

     Hold and unwind steel coils

    1 unit

    2.

     Top Hat Section

     Roll Former

     a. Feeding Guide

    Roll Form the material into required profiles and  cut the formed profile into desired length

    1 unit

     b. Punching Device

     c. Roll Forming Unit

     d. Straightener

     e. Cutting Device

    3.

     Product Support Table

     Support final product when exits the machine

    2 units

    4.

     PLC Control System

     Computerized control system for whole line

    1 unit

    5.

     Hydraulic Station

     Offer power for cutting

    1 unit



    Whole Line Work Process

    1. Work direction: from left to right

    2. Work process: decoiling, guiding, roll forming, cutting, product output

    G550 Material CNC Roll Forming Machine , Galvanized Steel Hat Channel Roll Former



    Believe Industry produces custom Light Gauge Steel Framing Machine including Steel C Truss Cold Roll Forming Machine or C-shaped/C-sections steel truss roll forming line, Stud & Track, Ceiling Batten, Roof Batten, Top Hat/ Hat Channel/ V Topspan Rollformer and more.



    Customizing and creating machines that meet your specific metal forming is what Believe Industry has doing for over 15 years since 2001.
