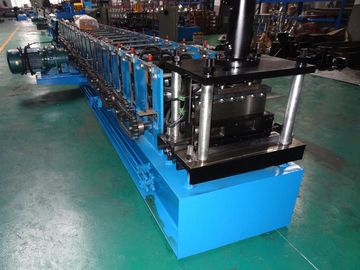

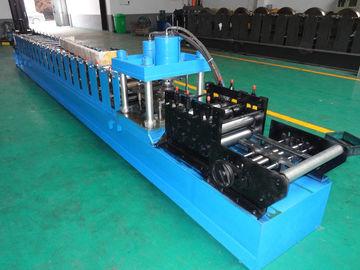

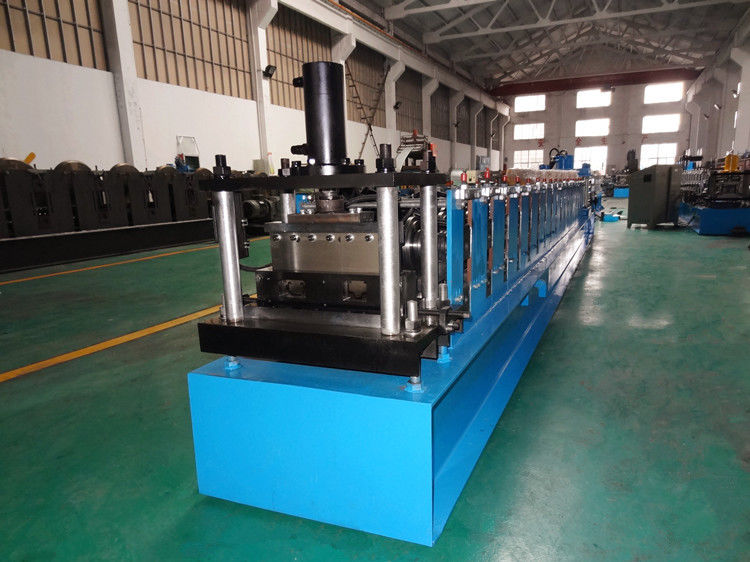

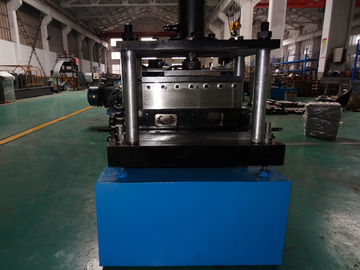

Efficient Custom Roll Forming Machine , Twin Row Vineyard Post Roll Former

Efficient Custom Roll Forming Machine , Twin Row Vineyard Post Roll Former

    • Efficient Custom Roll Forming Machine , Twin Row Vineyard Post Roll Former
    • Efficient Custom Roll Forming Machine , Twin Row Vineyard Post Roll Former
    • Efficient Custom Roll Forming Machine , Twin Row Vineyard Post Roll Former
    • Efficient Custom Roll Forming Machine , Twin Row Vineyard Post Roll Former
  • Efficient Custom Roll Forming Machine , Twin Row Vineyard Post Roll Former

    Product Details:

    Place of Origin: CHINA
    Brand Name: Believe Industry Company
    Certification: CE
    Model Number: Vineyard Post Roll Forming Machine

    Payment & Shipping Terms:

    Packaging Details: Standard Seaworthy Packing
    Delivery Time: 60 days
    Payment Terms: 30% TT in advance, 70% TT before delivery
    Supply Ability: 20 sets per month
    Contact Now
    Detailed Product Description
    Type: Twin Row Vineyard Roll Forming Machine Applicable Material: Galvanzied Steel
    Forming Stations: 14 Stations Main Power: 11KW

    Twin Row Galvanized Steel Vineyard Post Roll Forming Machine Deliver To Spain



     Brief Description

    Galvanized steel vineyard posts produced by Vineyard Post Roll Forming Machine are now becoming more and more popular as the substitute for wood vinyard stakes.



    This twin row vineyard post machine is mainly consisted of 3Ton manual decoiler, leveling deivce, punching unit, roll forming unit, hydraulic cutoff and control system, etc.



    Efficient Custom Roll Forming Machine , Twin Row Vineyard Post Roll Former

    Efficient Custom Roll Forming Machine , Twin Row Vineyard Post Roll Former
    Efficient Custom Roll Forming Machine , Twin Row Vineyard Post Roll Former





     Vineyard Post Profile

    Profile Size
     Efficient Custom Roll Forming Machine , Twin Row Vineyard Post Roll Former  52 x 40 x 1.2  52 x 40 x 1.5
     Efficient Custom Roll Forming Machine , Twin Row Vineyard Post Roll Former  58 x 48 x 1.5  58 x 48 x 1.8  58 x 48 x 2.0





     Main Machine Technical Parameters

    1  Machine Structure  H Beam steel welded structure as machine base, steel plate after CNC processing welded on machine form the basic machine structure.
    2  Machine Type  Twin row type, 2 sets of forming rollers for 2 different profiles are set on the common shaft. When cutting length is the same, these 2 sections can be produced at one time.
    3  Forming Stations  14 stations
    4  Forming Speed  12-15m/min (not including punching and cutting)
    5  Main Motor Power  11kw
    6  Drive  Chain Drive
    7  Hydraulic Power  7.5kw
    8  Control System  PLC control System (Panasonic, Siemens, or other brand client require)





     Machine Layout

    Efficient Custom Roll Forming Machine , Twin Row Vineyard Post Roll Former



    *  Work Direction: left--->right

    *  Work Flow: decoiling--->material leveling--->hydraulic punching--->roll forming--->hydraulic cutting--->finished products
