Mini Corrugated Wall Cladding Sheet Roll Forming Machine G550 Material Usage

Mini Corrugated Wall Cladding Sheet Roll Forming Machine G550 Material Usage

    • Mini Corrugated Wall Cladding Sheet Roll Forming Machine G550 Material Usage
    • Mini Corrugated Wall Cladding Sheet Roll Forming Machine G550 Material Usage
    • Mini Corrugated Wall Cladding Sheet Roll Forming Machine G550 Material Usage
    • Mini Corrugated Wall Cladding Sheet Roll Forming Machine G550 Material Usage
  • Mini Corrugated Wall Cladding Sheet Roll Forming Machine G550 Material Usage

    Product Details:

    Place of Origin: CHINA
    Brand Name: Believe Industry Company
    Certification: CE
    Model Number: Mini Corrugated Sheet Machine

    Payment & Shipping Terms:

    Packaging Details: Nude Packing
    Delivery Time: 45 to 55 days
    Payment Terms: 30% TT in advance, 70% TT before shipment
    Supply Ability: 20 sets per month
    Contact Now
    Detailed Product Description
    Machine Name: Wall Panel Roll Forming Machine Material Strength: High Strength G550
    Forming Steps: 17 Steps Main Motor: 7.5KW

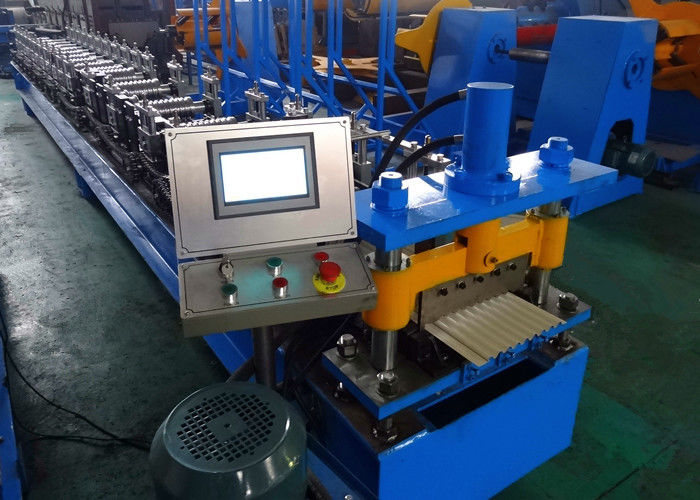

    Machine Feature: Control System Placed Inside Of The Machine Base Control Panel: Can Rotate For All Directions

    Mini Corrugated Wall Cladding Sheet Roll Forming Machine For G550 Material



      Brief Introduction

    Corrugated profiles are becoming more and more popular used as steel building exterior and interior wall cladding sheets. This roll forming machine is made to produce mini corrugated steel wall panels with G550 high strength material.


    Machine Structure

    • Machine Base: H beam steel welded frame processing by gantry milling machine
    • Roller Stands: guide pillar type roller stands screwed on the machine base
    • Drive Type: electrically driven via chain and sprocket
    • Motor: 7.5kw electric motor placed inside of the machine base

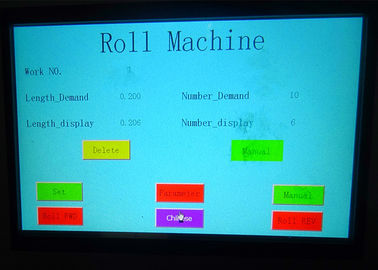

    • Control System: Panasonic PLC control system
    • Cutting Type: hydraulically powered cutting device





      Whole Line Components And Machine Layout

    No.  Item Quantity  Options
    1.

     3Ton Single Mandrel Uncoiler

    1 set Line speed of this wall panel rollforming machine is approx 12m to 15m/min, Believe Industry Company supply cold rollforming machine with line speed up to 30m to 40m/min.
    2.  Material Entry Infeeding And Guiding Device 1 set

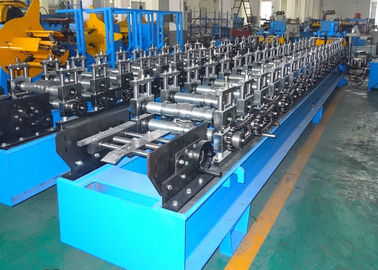

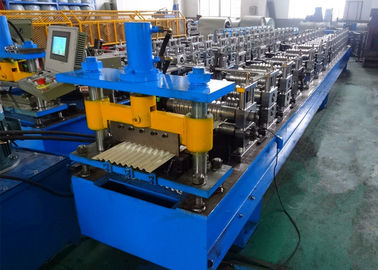

    3.  Mini Corrugated Profile Rollfoming Stations 1 set
    4.

     Hydraulic Cutting Device

    1 set
    5.

     Final Product Receiving Tables

    1 set
    6.

     Electric Control Cabinet

    1 set
    7.

     Hydraulic Station

    1 set



    Mini Corrugated Wall Cladding Sheet Roll Forming Machine G550 Material Usage



    Machine Layout

    • Work Direction: from left to right
    • Work Process: decoiling-->feeding guide-->roll forming-->cutting-->run out





      Main Technical Parameters

    >>   5Ton Hydraulic Decoiling

    1. Decoiling Type: hydraulic mandel expansion and tension, electric decoiling

    2. Decoiler Mandrel Expansion And Tension: hydraulic power offered by 4kw motor

    3. Decoiler Mandrel Expansion Range: φ480-520mm

    4. Decoiling Power: 3kw

    5. Max Coil O.D: 1350mm

    6. Capacity: 5Ton



    >>   Roll Forming Mill

    1. Material Strength: G550

    2. Material Thickness: 0.3-0.8mm

    3. Forming Steps: 17 steps

    4. Main Motor: 7.5kw

    5. Forming Speed: 10-15m/min

    6. Shaft Material: 40Cr

    7. Roller Material: No.45 steel, fine machining, quenching and tempering, surface with chrome plated



    >>   Cutting

    1. Type: hydraulic cutting, machine stops when cutting

    2. Cutting Power: 5.5kw

    3. Cutting Blade Material: Cr12Mov, HRC58-62

    4. Cutting To Length Tolerance: ±2mm





      End Product Of Mini Corrugated Profile
