Quick Changeover Purlin Forming Machine 1.5 - 3.0mm Thick CM Profiles Usage

Quick Changeover Purlin Forming Machine 1.5 - 3.0mm Thick CM Profiles Usage

    • Quick Changeover Purlin Forming Machine 1.5 - 3.0mm Thick CM Profiles Usage
    • Quick Changeover Purlin Forming Machine 1.5 - 3.0mm Thick CM Profiles Usage
    • Quick Changeover Purlin Forming Machine 1.5 - 3.0mm Thick CM Profiles Usage
    • Quick Changeover Purlin Forming Machine 1.5 - 3.0mm Thick CM Profiles Usage
  • Quick Changeover Purlin Forming Machine 1.5 - 3.0mm Thick CM Profiles Usage

    Product Details:

    Place of Origin: CHINA
    Brand Name: Believe Industry Company
    Certification: CE
    Model Number: BELI-CM350

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Contact Us For Latest Machine Price
    Packaging Details: Main machine part nude packing, electric and hydraulic system covered with plastic film
    Delivery Time: 60 days
    Payment Terms: T/T, L/C
    Supply Ability: 60 sets per quarter
    Contact Now
    Detailed Product Description
    Machine Name: CM Purlin Roll Forming Machine Main Motor Power: 15KW
    Forming Steps: 21 Steps Hydraulic Power: 22KW
    Size Adjust: Automatic Adjust Drive Motion: Chain Drive
    High Light:

    c&z purlin forming machine

    ,

    c z purlin roll forming machine

    Quick Changeover Purlin Roll Forming Machine For 1.5-3.0mm Thick CM Profiles



      Brief Introduction

    This cold rollforming machine is used to produce C-shape and M-shape purlins with variable web width of 100mm to 350mm for steel building construction. Material can be roll formed are galvanised steel coils with the thickness of 1.5-3.0mm.



    Main components of this machine are 3Ton single mandrel decoiler, 5-roller leveller, hydraulic punching unit, pre-cutting device, forming stations, product receiving tables and control system, etc.



    Work process of CM purlin rollforming line: steel coil uploading--coil unwinding--entry feeding and deviation adjustment--material levelling--pre-punching--pre-cutting to required length--CM purlin roll forming--final product.



      Machine Features

    • Automatic size adjustment with one side of the roller stands electrically moving in and out through the linear guide rail.
    • Hydraulically re-cutting design no need to change cutting blades for each purlin profile and dimensions.
    • Whole line is controlled by PLC control system.
    • Electrically driven via chain and sprocket.
    • Strong machine structure with H beam steel welded machine base and cast iron roller stands.
    • GCr15 roller material go through CNC machining, vacuum heat treatment for great strength.
    • Covered with metal mesh for protecting the safety of both human and machine.



      Most Important Technical Parameters

    No.  Item  Technical Parameters

    1.

     Material Information

     1. Raw material: galvanized coils, cold rolled steel coils

     2. Material thickness: 1.5-3.0mm

     3. Yield strength: 235Mpa to 345 Mpa

    2.

     Decoiler

     1. Type: hydraulic decoiler, electric decoiling, hydraulic mandrel expanding

     2. Loading capacity: 5Tons

    3.

     Leveling Device

     1. Type: 5-roller leveling, up 2 roller, bottom 3 rollers

     2. Diameter of leveling rollers: 90mm

    4.

     Hydraulic Punching

     And Cutting Device

     1. Hydraulic punching and cutting: stop to punch and cut

     2. Hydraulic power: 22kw

     3. Material of punching molds: Cr12Mov with heat treatment

     4. Material of cutting blade: Cr12 mold steel

    5.

     Rollforming Unit

     1. Roll forming stations: 21 stations

     2. Roll forming speed: 0-15m/min

     3. Main motor power: 15kw

     4. Diameter of shafts: 70mm

     5. Material of rollers: Gcr15 bearing steel

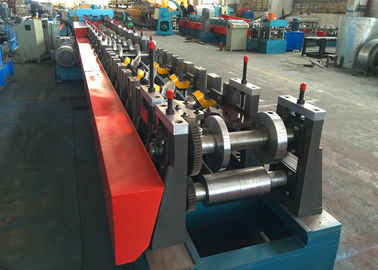

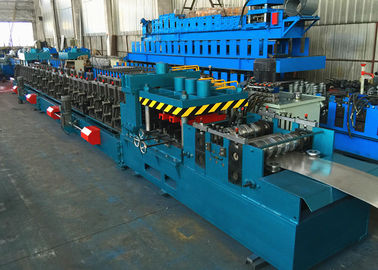

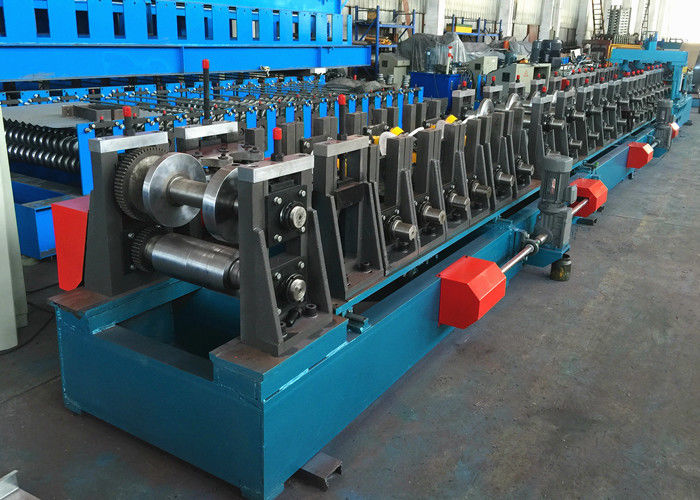

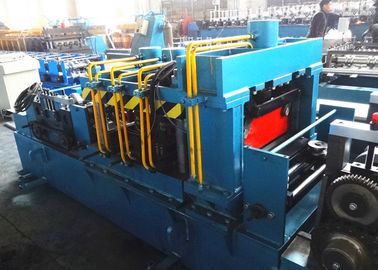

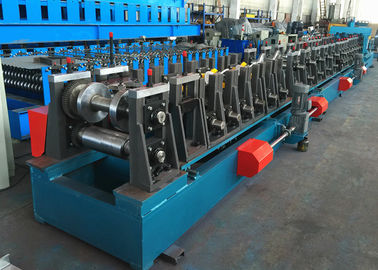

      More Pictures Of CM Purlin Roll Forming Machine

    Quick Changeover Purlin Forming Machine 1.5 - 3.0mm Thick CM Profiles Usage



    Believe Industry Company has been engaged in cold roll forming machine industry for more than 20 years. We keep learning from advanced technology and improving our machine designing and manufacturing.



    • Designing, Manufacturing, Marketing and After-sale service, one-stop metal forming machine solution.
    • 20+ Year's Experience in cold roll forming industry
    • COPRA, AUTOCAD, SOLIDWORKS assist in machine designing
    • 50+ countries and regions our engineers have been to test machine.
