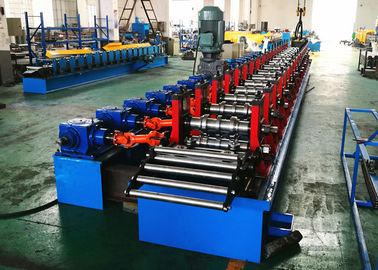

C Purlin Roll Forming Machine, Gear Box Drive, Line Speed 30-40m/min

C Purlin Roll Forming Machine, Gear Box Drive, Line Speed 30-40m/min

    • C Purlin Roll Forming Machine, Gear Box Drive, Line Speed 30-40m/min
    • C Purlin Roll Forming Machine, Gear Box Drive, Line Speed 30-40m/min
    • C Purlin Roll Forming Machine, Gear Box Drive, Line Speed 30-40m/min
    • C Purlin Roll Forming Machine, Gear Box Drive, Line Speed 30-40m/min
    • C Purlin Roll Forming Machine, Gear Box Drive, Line Speed 30-40m/min
  • C Purlin Roll Forming Machine, Gear Box Drive, Line Speed 30-40m/min

    Product Details:

    Place of Origin: CHINA
    Brand Name: Believe Industry Company
    Certification: CE
    Model Number: BELI-C300

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Packaging Details: Machine nude packing, electric and hydraulic system wrapped with plastic film.
    Delivery Time: 60 to 75 days
    Payment Terms: 30% TT as deposite, 70% TT before delievry after check and accept
    Supply Ability: 50 sets per quarter
    Contact Now
    Detailed Product Description
    Other Name: 100-300mm C Purlin Roll Forming Machine Material Thickness: 1.5mm To 5mm
    Forming Steps: 18 Steps Main Motor: 18.5kw * 2
    Power Supply: 380V, 415V ; 50Hz, 60Hz Machine Warranty: 24 Months



    C Purlin Roll Forming Machine, Gear Box Drive, Line Speed 30-40m/min



    Brief Description

    As usual, a c purlin roll former is used to produce 100-300mm c purlins and main material is 1.5mm to 3.0mm thick cold rolled steel coils. This c purlin roll forming machine is designed and built for processing 5mm thick galvanized steel coils. Whole line speed can reach 30m/min to 40m/min to meet client's production requirement.



    C Purlin Rollformer Believe Industry Company Supply:

      a. C Purlin Machine With Economical Design (Manual Size Adjustment)

      b. C Purlin Making Machine With Automatic Size Adjustment

      c. High Speed C Purlin Production Line (line speed no less than 20m/min)

      d. Customized C Purlin Rollforming Line (Purlin Web Width Range: 80-240mm, 80-300mm, 100-350mm, 100-400mm, 100-500mm, etc)





    Machine Features

    • This c purlin machine can be used to produce up to 5mm thick c purlins.
    • High quality steel machine structure and cast iron roller stands ensures great strength and long service life
    • Gear box transmission system makes the machine run stable.
    • We equip 9-roller leveling device for great flatness of the material.
    • We equip Turk's head straightener to ensure the perfect straightness of final products
    • Each forming stand is equipped with lubricating unit, which will spray lubricant when roll forming to protect material surface





    Machine Components Included In This C Purlin Production Line

    • 5Ton Automatic Decoiler
    • 9-roller Leveling Device
    • Hydraulic Punching Unit
    • Material Feeding Guide

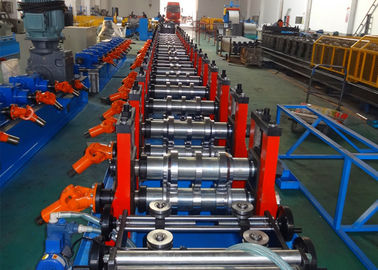

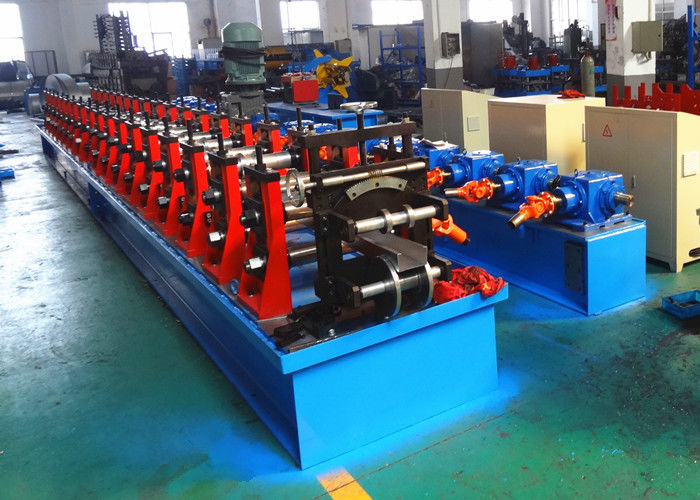

    • Roll Forming mill
    • Turk's Head Straightening Unit
    • Servo Flying Cutoff
    • Auto Stacker For Finished Products

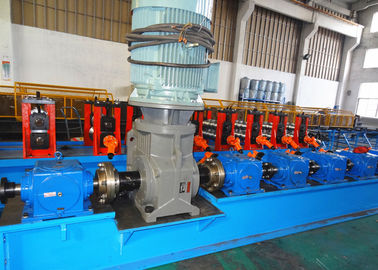

    • Gear Box Transmission System

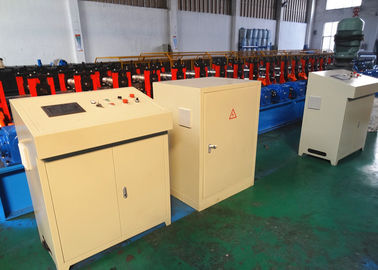

    • Electric Control System
    • Hydraulic System
    • Lubricating System
      C Purlin Roll Forming Machine, Gear Box Drive, Line Speed 30-40m/min





    Main Machine Technical Parameters For Reference

      1. Material Type: galvanized steel coils, cold rolled steel coils

      2. Material Thickness: 2mm to 5mm

      3. Material Strength: mild steel, 235-345Mpa

      4. Roll Forming Stations: 18 stations / 18 roll forming steps

      5. Roll Forming Speed: 30-40m/min

      6. Line Speed: 30-40m/min

      7. Main Motor Power: 37kw

      8. Material Of Rollers: GCr15 bearing steel

      9. Material Of Shafts: 40Cr, 75mm in diameter

      10. Hydraulic Power: 11kw for punching and cutting

      11. Control System: Panasonic PLC, Yaskawa Inverter / Siemens or Mitsubishi or other brands is optional





    BELIEVE INDUSTRY is specialized in Purlin Roll Forming Machine designing and manufacturing, such as c purlin machine, z purlin roll forming machine, cz purlin interchangeable machine and sigma profile rollformer, etc. We also have machine for roofing and walling roll forming series, roller shutter door roll forming series, warehouse rack roll forming series, etc. Please contact us for more information.
