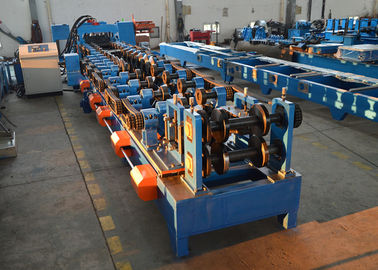

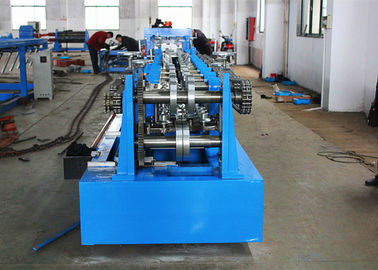

Auto Width Adjust Purlin Roll Forming Machine 100 - 400mm CZ Purlins Producing Use

Auto Width Adjust Purlin Roll Forming Machine 100 - 400mm CZ Purlins Producing Use

    • Auto Width Adjust Purlin Roll Forming Machine 100 - 400mm CZ Purlins Producing Use
    • Auto Width Adjust Purlin Roll Forming Machine 100 - 400mm CZ Purlins Producing Use
  • Auto Width Adjust Purlin Roll Forming Machine 100 - 400mm CZ Purlins Producing Use

    Product Details:

    Place of Origin: CHINA
    Brand Name: BELIEVE INDUSTRY
    Certification: CE
    Model Number: BELI-CZ400

    Payment & Shipping Terms:

    Price: USD 50000 per set
    Packaging Details: Nude Packing (roller surface covered plastic film)
    Delivery Time: 60 to 75 days
    Payment Terms: T/T, L/C
    Supply Ability: 20 sets per months
    Contact Now
    Detailed Product Description
    Application: Use To Produce 100-400mm CZ Purlins Width Adjust: Automatic Adjust
    CZ Profile Change: Manually Adjust The Roller Directions Main Power: 15kw
    Forming Speed: 12-15m/min Hydraulic Power: 7.5kw

    Automatic Width Adjust CZ Purlin Rollforming Machine For CZ100-400



      Description

    This CZ purlin machine can produce 2.0mm to 3.0mm thick C purlins and Z purlins by adjust the directions of rollers. Main components of this production line are decoiler, guiding and leveling device, punching unit, pre-cutting device, roll former, receiving tables, electrical control system and hydraulic system, etc.



    Machine Features

    • Manually CZ Profile Change Over
    • Automatically Width Adjust
    • Can roll form C and Z purlin with 100mm to 400mm web width, 40-80mm height and 20mm flange width
    • Panasonic PLC automatic control system
    • Electrically chain drive
    • Hydraulic pre-punching and pre-cutting



    No.  Technical Parameters - C/Z Purlin Roll Forming Machine
    1.  Raw Material  Carbon Steel, Galvanized Steel, 235Mpa to 345Mpa
    2.  Material Thickness  2.0-3.0mm
    3.  Material Width  200mm to 700mm depend on specific profile
    4.  Diameter of Shaft  76mm
    5.  Material of Shaft  40Cr with chrome plated
    6.  Material of Rolls

     GCr15 with 0.05mm thick Chrome plated

    7.  Main Power For Roll Forming  22KW
    8.  Forming Speed  15-20m/min
    9.  Forming Stations / Roller Stations  16 stations
    10.  Cutting Type  Hydraulically powered cutting
    11.  Cutting Blade

     Cr12 Mov HRC 58-62



































      CZ Purlin Machine Layout

    Auto Width Adjust Purlin Roll Forming Machine 100 - 400mm CZ Purlins Producing Use



    Work Process: uncoiling-->levelling-->punching-->cutting-->roll forming-->C/Z purlin end product



    • Uncoiler: 3Ton single mandrel decoiler; unpowered for expanding and unwinding.
    • Leveller: 5-Roller leveller, up 2 bottom 3.
    • Punching Unit: hydraulically powered for punching holes on the material.
    • Pre-cutting Device: one set of cutting blades is suitable for cut all purlin dimensions.
    • Roll Forming Unit: Cast iron roller stands installed on movable base, can automatically .move to adjust the gap between rollers for roll forming each dimension of purlin. Users need to adjust the roller directions manually to change over the roll forming of profile C to Z.
    • Receiving Tables: unpowered receiving tables, 6 meters long.
