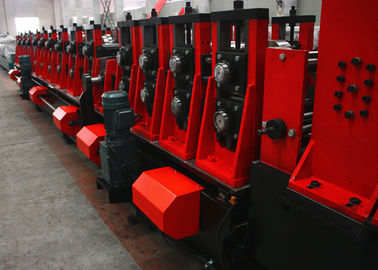

Automatic Adjustable C Purlin Forming Machine Pre - Cutting Type CE Certificated

Automatic Adjustable C Purlin Forming Machine Pre - Cutting Type CE Certificated

    • Automatic Adjustable C Purlin Forming Machine Pre - Cutting Type CE Certificated
    • Automatic Adjustable C Purlin Forming Machine Pre - Cutting Type CE Certificated
    • Automatic Adjustable C Purlin Forming Machine Pre - Cutting Type CE Certificated
    • Automatic Adjustable C Purlin Forming Machine Pre - Cutting Type CE Certificated
  • Automatic Adjustable C Purlin Forming Machine Pre - Cutting Type CE Certificated

    Product Details:

    Place of Origin: CHINA
    Brand Name: Believe Industry Company
    Certification: CE
    Model Number: BELI-C300

    Payment & Shipping Terms:

    Packaging Details: Machine nude packing, electric system and hydraulic system coated with plastic film.
    Delivery Time: 60 to 75 days
    Payment Terms: T/T, L/C
    Supply Ability: 20 sets per month
    Contact Now
    Detailed Product Description
    Machine: Automatic C Purlin Machine Purlin Size: 100-300mm
    Size Adjust: Automatic Size Adjust Cutting Type: Pre-cutting Type
    Power Supply: 380V; 415V / 50Hz; 60Hz / 3Ph Machine Warranty: 24 Months Not Including Easy Wearing Parts

    Automatic Adjustable C Purlin Rollforming Line With CE Certification



      Brief Introduction

    This quick change size c purlin roll forming machine can be used to produce C purlins with the web width from 100mm to 300mm. One side of the roller stands installed on a movable base can move through the linear guide automatically to adjust the gap between rollers for producing each pulin dimension of as required.



    Machine Features

    • This machine can produce c purlin with web width of 100mm, 150mm, 200mm, 250mm and 300mm.
    • Machine is of great strength with H beam steel welded base and cast iron roller stands.
    • 1.5kw * 2 electrical power for roller stands moving in and out to adjust
    • Design of pre-cutting device is economical and suitable for all dimensions
    • All metal rollformers manufactured by BELIEVE INDUSTRY are CE certificated



      Main Componnets of C Channel Machine

    No.  Components  Options
    1.  3Ton Single Manual Decoiler  Double Head Decoiler; Hydraulic Decoiler
    2.  Entry Feeding and Guiding Device  Servo Feeder + 7-Roller Leveller
    3.  5-Roller Levelling Device
    4.  Hydraulic Punching Unit  High Speed Power Press
    5.  Hydraulic Pre-cutting Device  Post cutting device with easy change dies
    6.  C Purlin Rollformer Stations  Gear box drive; high speed design
    7.  Unpowered Receiving Tables  Automatic receiving table
    8.  Electric Control System  Siemens, ABB or other famous brands as required
    9.  Hydraulic Stations  Rexrroth or other famous brands as required

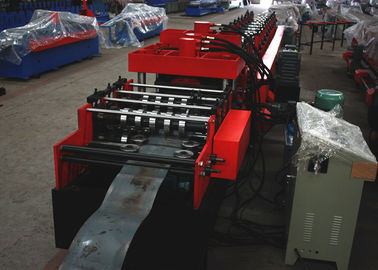

    Automatic Adjustable C Purlin Forming Machine Pre - Cutting Type CE Certificated


      Main Technical Parameters

    1. Applicable materials: galvanized steel coils, cold rolled steel coils

    2. Material thickness: 1.5mm to 3.0mm

    3. Roll forming stations: 14 stations

    4. Roll forming speed: 12-15m/min(not including punching and cutting)

    5. Main roll forming power: 15kw
    6. Diameter of shafts: 70mm

    7.  Hydraulic power: 7.5kw

    8. Drive: via chain and sprocket

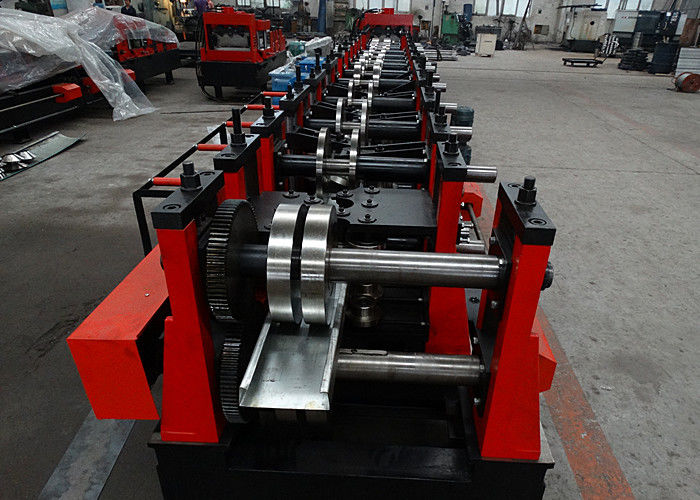

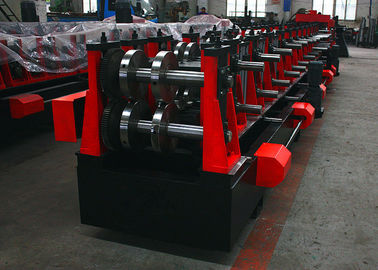

      More Machine Pictures

    Automatic Adjustable C Purlin Forming Machine Pre - Cutting Type CE Certificated



    BELIEVE INDUSTRY is always improving our technology in roll forming machine design and manufacturing. Let BELIEVE INDUSTRY--a dedicated and professional team be the best choice as the part of your total metal forming solution.
