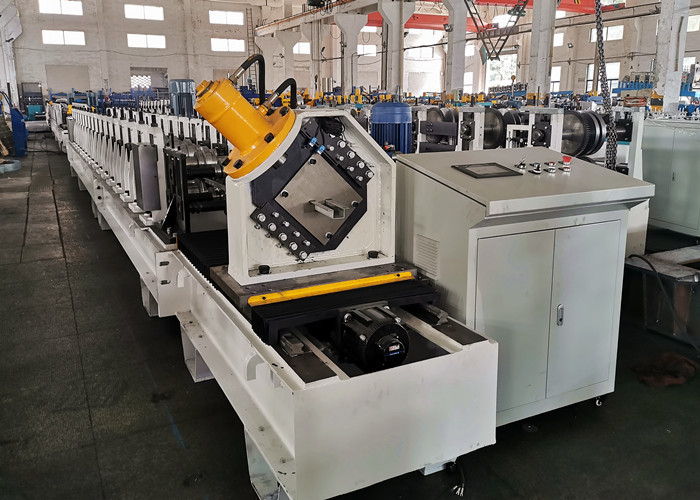

BELIEVE INDUSTRY COMPANY has various roll forming machine solutions for producing steel solar strut sections. This solar channel machine is fully automatic which can produce top hat shape solar sections. With improved design, various sizes can be made in one machine by one group of rollers. And it is easy to set the required size through the touch screen, then the machine will automatically adjust for producing each solar section size.

Work Flow Chart and Main Components of Solar Section Roll Forming Line

1. Work flow: decoiling - levelling - servo feeding & punching - roll forming - straightening - cutting - collecting

2. Whole production line mainly consists of 3Ton decoiler & leveller, hydraulic punching unit & servo feeder, roll forming machine, straightener, servo tracking cutoff, runout table, electric control system, gear box transmission system and hydraulic system, etc.

Main Technical Parameters

1. Decoiler Loading Capacity: 3000kgs

2. Unwinding Type: hydraulic expansion and tension; unpowered unwinding

3. Punching Type: hydraulic punching and stamping based on customers' profiles

4. Material of Punching Molds: Cr12 Mov, HRC58-62

5. Servo Feeder: to ensure high precision of punching location

6. Roll Forming Steps: 18 steps with some side auxiliary rollers

7. Dirve and Transmission: electrical motor drive via gear box and chain

8. Material of Rollers: GCr15, HRC58-62, Chromed

9. Material of Shafts: high quality 40Cr, HB220-260

10. Power for Roll Forming: 15KW

11. Power for Web Width Adjustment: 1.5KW

12. Power for Flange Height Adjustment: 0.75KW * 2

13. Line speed: 0-20m/min

14. Cutting Type: servo motor tracking, hydraulic blade cutoff

15. Servo Motor Power: 2.9KW YASKAWA servo motor

16. Cutting Power: 7.5KW

If you need more machine information, please contact us.
