41 * 21 / 41 * 41 / 41 * 82 Solar Strut Automatic Size Adjustment Section Roll Forming Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	BELIEVE INDUSTRY COMPANY
Certification:	CE
Model Number:	BELI-SOLAR

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	According to customers' requirement
Packaging Details:	Covered with plastic film and fixed inside of the container with steel wire and fasteners
Delivery Time:	60 to 90 days
Payment Terms:	T/T, L/C
Supply Ability:	45 sets per quarter

Contact Now

Detailed Product Description

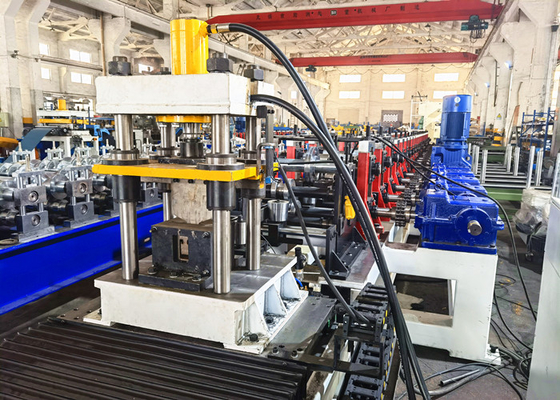

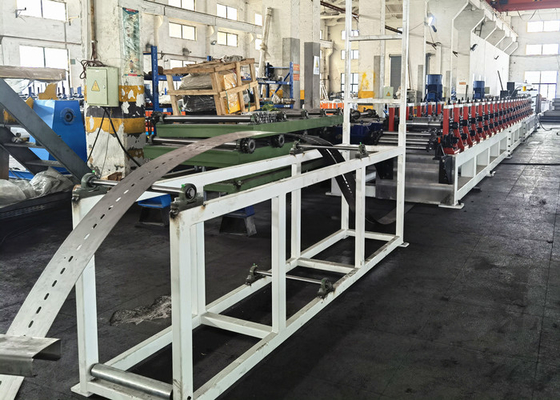

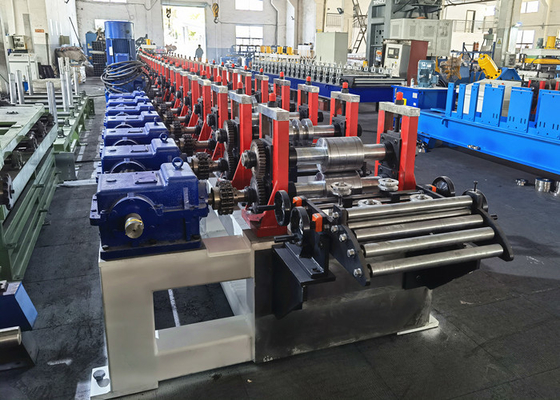

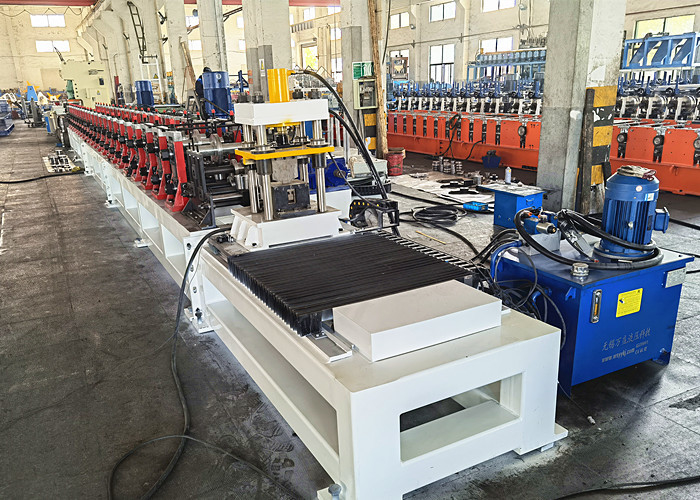

41 * 21 / 41 * 41 / 41 * 82 Solar Strut Automatic Size Adjustment Section Roll Forming Machine

BELIEVE INDUSTRY COMPANY has various roll forming machine solutions for producing steel solar strut sections. This solar channel machine is fully automatic which can produce 41 * 21, 41 * 41 and 41 * 82 sections by electrical adjustment. With high speed power press, gear box transmission and flying cutoff, whole line speed can reach up to 30-40m/min. We also have economical machine design based on customers' requirement.

Popular Section Profiles 41 * 21 & 41 * 41

41 * 21 / 41 * 41 / 41 * 82 Solar Strut Automatic Size Adjustment Section Roll Forming Machine

Solar Strut Sections With Strengthen Ribs

41 * 21 / 41 * 41 / 41 * 82 Solar Strut Automatic Size Adjustment Section Roll Forming Machine

Work Flow Chart and Main Components of Solar Section Roll Forming Line

41 * 21 / 41 * 41 / 41 * 82 Solar Strut Automatic Size Adjustment Section Roll Forming Machine

1. Work flow: decoiling - levelling - servo feeding & punching - roll forming - straightening - cutting - collecting

2. Whole production line mainly consists of decoiler, levelling unit, high speed and high precision power press with servo feeder, roll forming machine, straightening unit, flying cutoff, runout table, electric control system, transmission system and hydraulic system, etc.
