Economical Design Solar Strut Channel Roll Forming Machine, Line Speed 2-3m/min

Product Details:

Place of Origin:	CHINA
Brand Name:	BELIEVE INDUSTRY COMPANY
Certification:	CE
Model Number:	BELI-SOLAR

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wrapped with plastic film and fastened inside of the container with steel wire.
Delivery Time:	45 to 60 days
Payment Terms:	30% TT in advance, 70% TT after machine check and accept before shipment
Supply Ability:	45 sets per quarter

Contact Now

Detailed Product Description

Application:	Used For Producing Solar Strut Channels	Control System:	PLC Control System
Drive System:	Electrically Chain Drive	Punching System:	Hydraulic Punching System
Cutting System:	Hydraulic Cutting System	Line Speed:	2-m/min Including Punching And Cutting

Economical Design Solar Strut Channel Roll Forming Machine, Line Speed 2-3m/min

This economical solar strut rollformer is able to produce 41 * 41 and 41 *21 solar strut channels in one machine.

Important Components Of A Solar Strut Channel Production

Decoiler
Feeding Guide
Roll Forming Mill

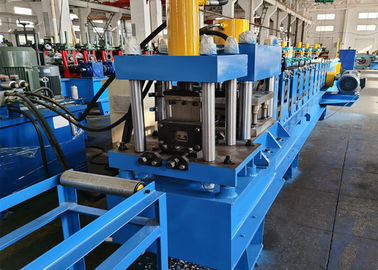

Punching Unit
Cutting Unit
Chain Drive System
PLC Control System
Hydraulic System
Exit Receiving Table

Economical Design Solar Strut Channel Roll Forming Machine, Line Speed 2-3m/min

Workflow: decoiling--->feeding and guiding--->roll forming--->punching--->cutting

Machine Features

Economical machine design with manual decoiler, chain drive system, hydraulic punching unit, etc.
Be capable of producing strut channels with measurements 41 by 41 and 21 by 21.
Manually adjust the spacers and replace the cutting blades for each dimension.
Line speed is approx. 2-3m/min including punching and cutting. (Believe Industry Company offers high speed machine solution for high productivity)
Exact cutting length with encoder length measuring, can cut at any length as required.
All rollers are chromed no less than 0.05mm thickness.

More Pictures For Reference

Economical Design Solar Strut Channel Roll Forming Machine, Line Speed 2-3m/min

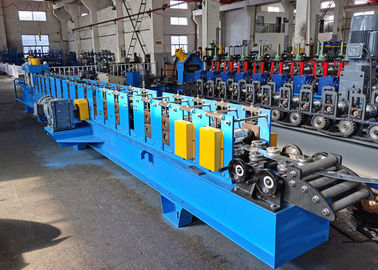

Solar Strut Channel Rollformer

Economical Design Solar Strut Channel Roll Forming Machine, Line Speed 2-3m/min

Solar Strut Samples

BELIEVE INDUSTRY COMPANY supplies 30-40m/min High Speed Solar Strut Channel Production Line. Contact us for more machine information.
