Corrugated Floor Deck Roll Forming Machine , 0.8 - 1.5mm Thick Metal Roll Former

Corrugated Floor Deck Roll Forming Machine , 0.8 - 1.5mm Thick Metal Roll Former

    • Corrugated Floor Deck Roll Forming Machine , 0.8 - 1.5mm Thick Metal Roll Former
    • Corrugated Floor Deck Roll Forming Machine , 0.8 - 1.5mm Thick Metal Roll Former
    • Corrugated Floor Deck Roll Forming Machine , 0.8 - 1.5mm Thick Metal Roll Former
    • Corrugated Floor Deck Roll Forming Machine , 0.8 - 1.5mm Thick Metal Roll Former
  • Corrugated Floor Deck Roll Forming Machine , 0.8 - 1.5mm Thick Metal Roll Former

    Product Details:

    Place of Origin: CHINA
    Brand Name: BELIEVE INDUSTRY
    Certification: CE
    Model Number: BELI SERIES

    Payment & Shipping Terms:

    Price: USD 35000-55000 per set
    Packaging Details: Main machine part nude packing, electric and hydraulic parts covered with plastic film
    Delivery Time: 60 to 90 days
    Payment Terms: 30% TT as down payment, 70% TT before delivery
    Supply Ability: 45 sets per quarter
    Contact Now
    Detailed Product Description
    Other Name: Structural Metal Deck Rollforming Line For Composite Flooring System Usage: For Producing Composite Corruagted Metal Floor Decking Sheet
    Roller Material: GCr15 Bearing Steel Shafts: 40Cr Solid Shafts With 120mm Diameter And Heat Treatment
    After-sale Service: Engineers Available To Serve Machine Overseas Machine Warranty: 24 Months For Normal Use
    High Light:

    floor deck roll forming machine

    ,

    cold roll forming machine

    Corrugated Floor Decking Roll Forming Machine For 0.8-1.5mm Thick Material



      Brief Description

    This roll forming machine is designed to produce steel decking sheets that bond with the concrete slad to develop a composite floor system. Main process of this production line is coil unwinding, material feeding and guiding, embossing strengthen ribs on the material, roll forming and cutting.



    This floor deck machine is exported to Angola with economical model. We also have better machine design with 5Ton hydraulic uncoiler and drive by hydraulic motor for high machine speed and productivity.



      Main Components

    No.  Components  Whole Line Layout
    1.  5Ton Manual Decoiler Corrugated Floor Deck Roll Forming Machine , 0.8 - 1.5mm Thick Metal Roll Former
    2.  Metal Deck Rollformer
    3.  Hydraulic Cutoff
    4.  Product Support Frame
    5.  Electric Control Cabinet
    6.  Hydraulic Station





      Main Machine Technical Parameters

    No.  Item  Technical Specifications
    1.  Thickness of Material  0.8-1.5mm
    2.  Main Motor Power  30kw
    3.  Hydraulic Pressure  16Mpa
    4.  Control System  PLC control panel
    5.  Shaft Material  40Cr, φ120mm or 110mm
    6.  Roller Material  GCr15, Vacuum heat treatment
    7.  Forming Speed  15-20m/min
    8.  Cutting blade material  Cr12Mov, HRC58-62°
    9.  Roller Stations  45 stations
    10.  Size of Machine (L*W*H)  15m*1.75m*1.5m

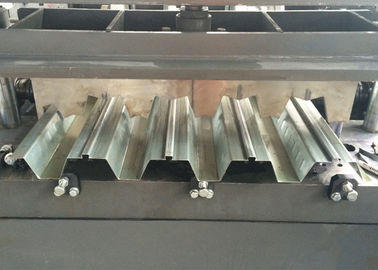

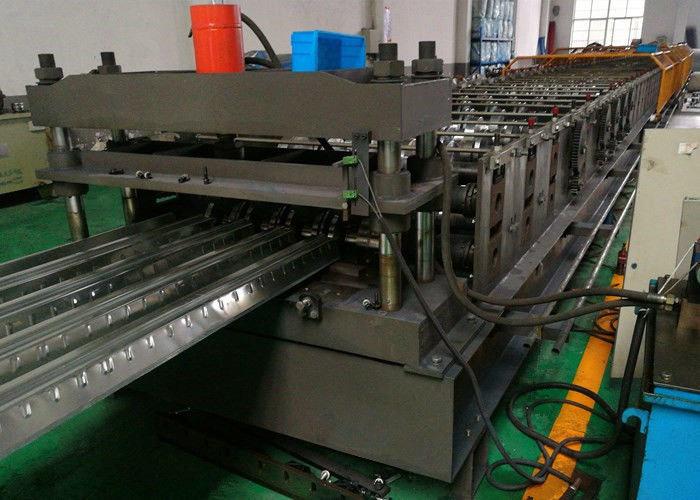

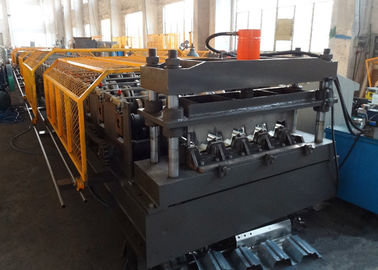

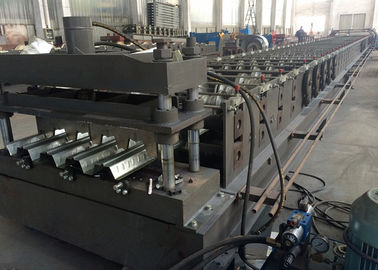

      More Machine Pictures

    Corrugated Floor Deck Roll Forming Machine , 0.8 - 1.5mm Thick Metal Roll Former
