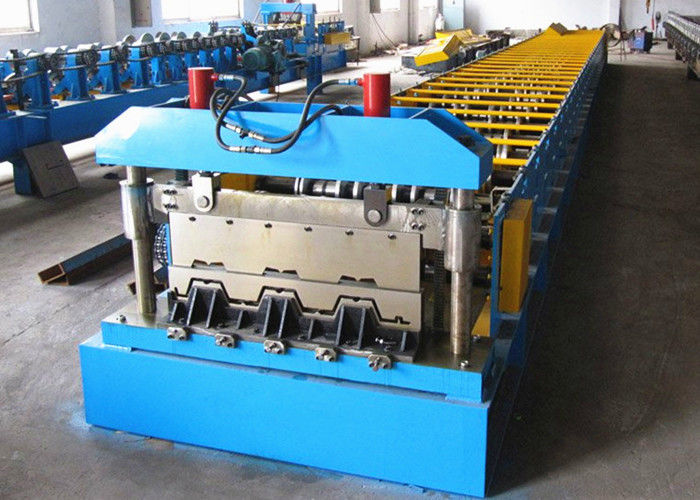

Metal Deck Roll Forming Machine Composite Floor System Cold Roll Forming Machine

Metal Deck Roll Forming Machine Composite Floor System Cold Roll Forming Machine

    • Metal Deck Roll Forming Machine Composite Floor System Cold Roll Forming Machine
    • Metal Deck Roll Forming Machine Composite Floor System Cold Roll Forming Machine
    • Metal Deck Roll Forming Machine Composite Floor System Cold Roll Forming Machine
    • Metal Deck Roll Forming Machine Composite Floor System Cold Roll Forming Machine
  • Metal Deck Roll Forming Machine Composite Floor System Cold Roll Forming Machine

    Product Details:

    Place of Origin: CHINA
    Brand Name: BELIEVE INDUSTRY
    Certification: CE
    Model Number: BELI76-344-688

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: USD 38000-45000 / set
    Packaging Details: Nude Packaging
    Delivery Time: 45 days
    Payment Terms: T/T, L/C
    Supply Ability: 20 sets/ Month
    Contact Now
    Detailed Product Description
    After-sales Service: Enigineers Available To Service Machinery Overseas Warranty: 18 Months
    Voltage: 380V, 3 Phase, 50Hz Type: Cold Rolling Machine
    Condition: New
    High Light:

    metal deck forming machine

    ,

    floor deck roll forming machine

    Composite Metal Floor Decking Roll Forming Machine - YX76-344-688



      Brief Description

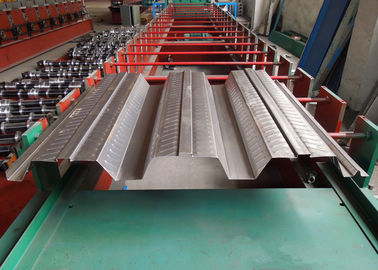

    This metal deck roll forming machine is availabe to produce floor decks with 76mm depth, 344mm pitch distance and 688mm cover width. This cold formed floor decking sheet has great strength with light weight is important for structural flooring system.



    688 Floor Deck Profile Details

    No.  Item  Specification  Profile Drawing
    1.  Model  YX76-344-688 Metal Deck Roll Forming Machine Composite Floor System Cold Roll Forming Machine
    2.  Effective Width  688mm
    3.  Feeding Width  1000mm
    4.  Material Thickness  0.8-1.3mm
    5.  Application  For composite flooring system





      Whole Rollforming Line Componnets And Work Process

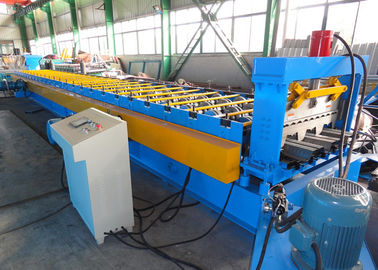

    Main components of this machine are 5Ton hydraulic decoiler, feeding and entry guiding device, metal deck roll former, hydraulic cutting device, run out tables, electric control system, and hydraulic station, etc.

    Metal Deck Roll Forming Machine Composite Floor System Cold Roll Forming MachineWork Process: steel coil unwinding--->material feeding--->entry deviation adjust--->roll forming to required profile--->cutting to length--->output finished floor decking sheets



    Machine Features

    • Whole roll forming line is controlled by PLC control system
    • 5Ton hydraulic decoiler, hydraulically powered for expansion and tension, electrically powered for unwinding
    • Electrically drive via chain and sprocket, 2 pcs of 11kw motors
    • Hydraulic blade cutting device, stop-cut type, rest of the line stop running when cutting
    • 3 pcs of unpowered run out support tables, angle steel welded structure with roller-path conveyor





      Most Essential Technical Parameters

    No.  Item  Parameters
    1.  Roller Stations  26 stations; as usual 24-32 stations depend on each deck profile
    2.  Forming Speed  15-20m/min
    3.  Main Power  11kw * 2
    4.  Hydraulic Power  5.5kw
    5.  Material of Rollers  GCr15 Over quenching and Chrome plated with 0.05mm thickness
    6.  Material of Shafts  40Cr with heat treatment and 0.05mm thick Chrome plated
    7.  Material of Cutting Blade  Cr12Mov HRC58-62



    For detailed machine information, please contact us.
