Double Workstation Beam and Clip Welding Machine, Welders for Storage Corss Beam and End Clips

Double Workstation Beam and Clip Welding Machine, Welders for Storage Corss Beam and End Clips

    • Double Workstation Beam and Clip Welding Machine, Welders for Storage Corss Beam and End Clips
    • Double Workstation Beam and Clip Welding Machine, Welders for Storage Corss Beam and End Clips
  • Double Workstation Beam and Clip Welding Machine, Welders for Storage Corss Beam and End Clips

    Product Details:

    Place of Origin: CHINA
    Brand Name: BELI
    Certification: CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Packaging Details: Wrapped with plastic film, fastened with steel wire inside of the container
    Delivery Time: 30 - 45 days
    Payment Terms: 30% TT as deposit, 70% TT after machine tested before delivery
    Supply Ability: 20 sets per month
    Contact Now
    Detailed Product Description
    Function: For Welding The Pallet Rack Cross Beam And Clips Length Can Be Welded: Adjustable From 700mm To 3800mm



    Cross Beam & Clip Welding Machine Video:

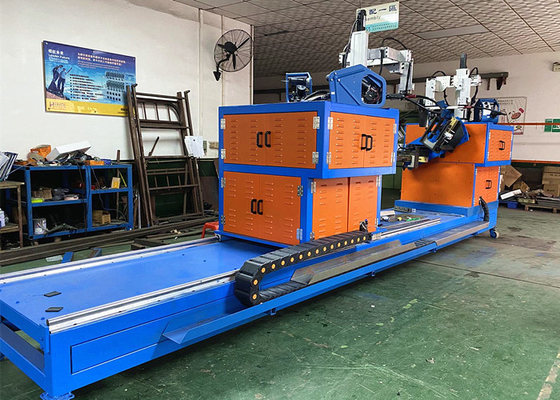

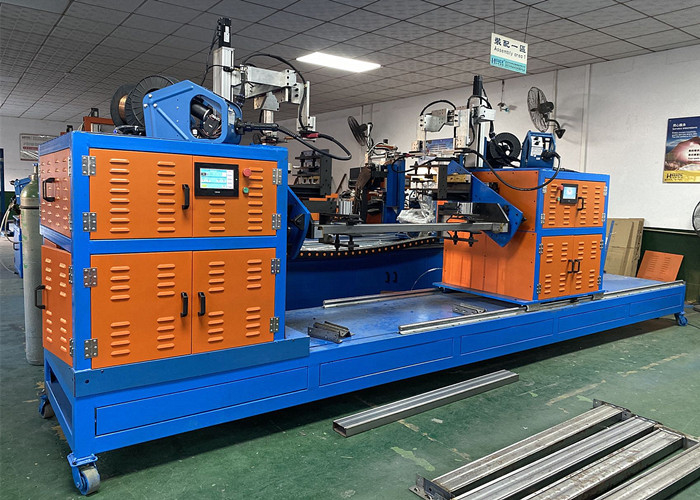

    This Double Workstation Welding Machine is used for welding the beams and the clips. The distance between two workstations can be easily adjusted according to the beam length. The video shows how to place the clip and beam and the working status of the welding machine. It is easy to operate.



    Technical Parameters and Specifications

    1 Beam Length 700-3800 mm( 2’-12’)
    2 Welding Speed 120-150 pcs per hour
    3 Welding Seam ≤2mm
    4 Recommendation Gas CO2 or Mixed gas (20% CO2 and 80% Argon gas better )
    5 Power 60 kw
    6 voltage 480V 50HZ 3 phase
    7 Size of the machine 5.6m*1.2m*1.85m



    Believe Industry Company offers full series machines for storage racking system. We have storage racking and shelving machines as below:



    * Upright Rack Roll Forming Machine

    * Box Beam Rollformer and Seaming Machine (C section type box beam and self-seamed type box beam)

    * Cross Bar Roll Forming Machine / C Bracing Roll Forming Machine

    * Step Beam / P Beam Production Line (spot welding type and continuous welding type)



    Related Machine or Tools

    * Continous Laser Welding Machine

    * Double Workstation Beam & Clip Welding Machine

    * Robot For Welding Beam & Clips



    If you need more information, please contact us directly.
