Place of Origin: | CHINA |
Brand Name: | BELIEVE INDUSTRY COMPANY |
Certification: | CE |
Model Number: | BELI-RACK |
Minimum Order Quantity: | 1 set |
---|---|
Packaging Details: | Covered with plastic film and fastened inside of the container |
Delivery Time: | 50 to 60 days |
Payment Terms: | 30% TT in advance; 70% TT after machine check and accept before shipment |
Supply Ability: | 45 sets per quarter |
Function: | Capable For Producing Diagonal Bracing For Rack System | Control System: | PLC Control System |
---|---|---|---|
Drive System: | Gear Box Drive | Cutting System: | Flying Shear; No Need To Stop To Cut |
Line Speed: | 20m/min | Production Capacity: | 2000 Pcs / 8 Hours, According To 2m Cutting Length |

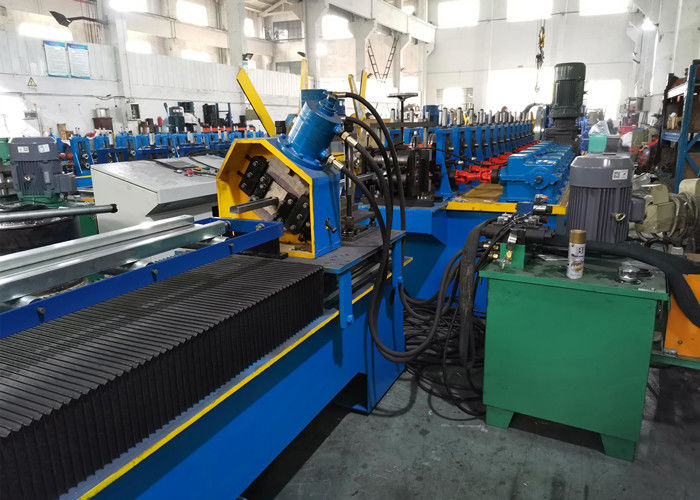

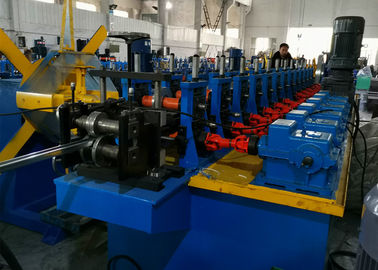

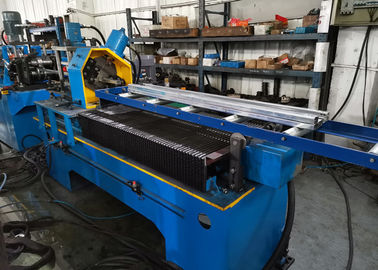

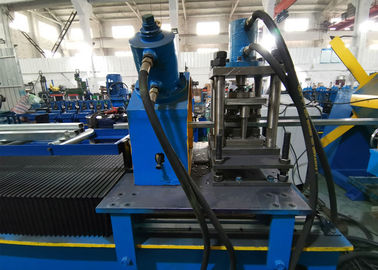

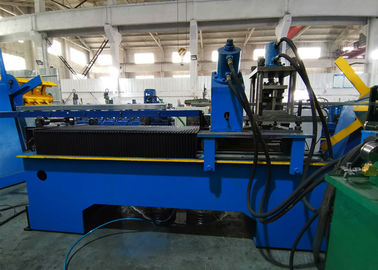

Diagonal Bracing Section Roll Forming Machine; Warehouse Rack C Bracing Rollformer
Brief Description
Storage racking system is constructed by vertical uprights, horizontal beams, diagonal bracing sections, shelf panels, protectors and backstops, etc. Bracing is used to increase the racks' load capacity and to ensure rack stability. BELIEVE INDUSTRY COMPANY makes bracing machines for producing bracing sections with variable dimensions according to clients' requirement.
BELI Bracing Rollformer Is Engineered To Make
1. Bracing Width: 20-50mm as customized 2. Bracing Height: 30-50mm as customized 3. Punching Holes: depend on drawing 4. Material Thickness: 1.6-2.0mm as customized 5. Material Type: galvanized steel coils |
![]() |
The Systems Essentially For A Bracing Production Line
|
![]() |
Our Advantages
Main Technical Parameters For Bracing Machine
1. Decoiler: manual expansion and tensioning 2. Decoiler Capacity: 3000kgs max load capacity 3. Leveller: 7-roller levelling unit, top layer 3 rollers while bottom layer 4 rollers for levelling the material before roll forming 4. Forming Steps/Roller Stations: 14 steps 5. Main Motor Power: 11kw 6. Drive System: gear box with universal joint 7. Roll Material: Cr12 Mov 8. Shaft Material: 40Cr, 90mm in diameter; solid shafts 9. Punching Unit: flying punching unit, hydraulic punching 10. Punching Blade: Cr12 Mov 11. Cutting Unit: flying cutting, hydraulic cutting 12. Cutting Blade Material: Cr12 MOv 13. Hydraulic Power: 5.5KW 14. Length Tolerance: +/-1.0mm |
![]() |
