Place of Origin: | CHINA |
Brand Name: | BELIEVE INDUSTRY |
Certification: | CE |
Model Number: | BELI-RACK |
Minimum Order Quantity: | 1 set |
---|---|
Price: | According to customers' requirement |
Packaging Details: | Nude packing and fastened inside of the container, wrapped with plastic film |
Delivery Time: | 60 to 75 days |
Payment Terms: | 30% TT as down payment, 70% TT after machine check and accept before shipment |
Supply Ability: | 30 sets per quarter |
Machine Type: | Cold Roll Forming Machine | Control System: | Automatic PLC Control System |
---|---|---|---|
Drive System: | Electric Motor Drive Via Gear Box | Application: | Used For Producing 1.5mm To 2.5mm Thickness Racks |
Cutting System: | Servo Flying Cutting | Line Speed: | 0-15m/min |

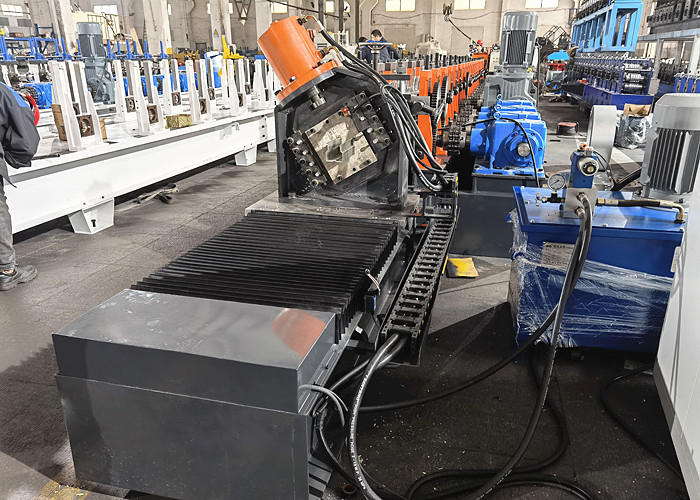

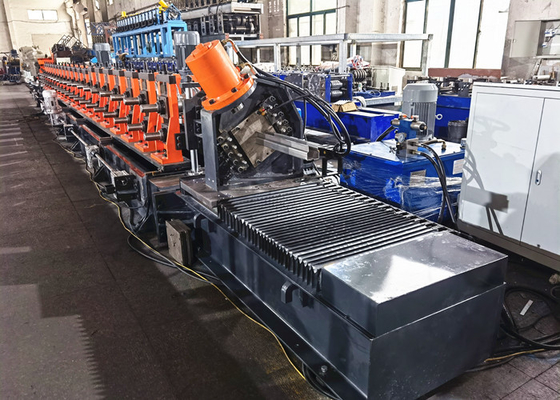

Automatic Size Adjustment Logistics Warehouse Upright Rack Pallet Roll Forming Machine
BELIEVE INDUSTRY COMPANY has rich experience in designing and making warehouse & supermarket storage racking series products. This rack machine can produce rack upright post with 75-125mm width and 75-100mm height. Material applicable are cold rolled steel coils with 2.0mm to 3.0mm thickness.

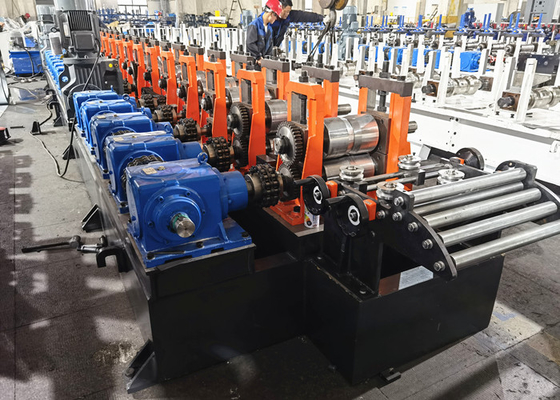

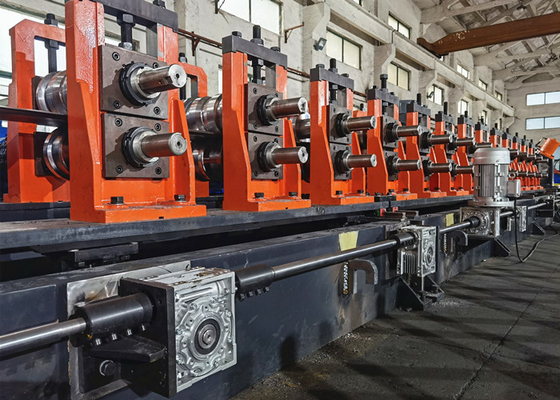

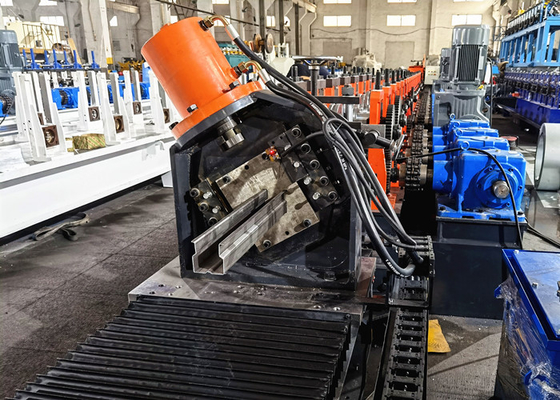

This roll forming line is consisted of decoiler, levelling unit, punching unit, roll forming machine, servo-flying cutting unit, electrical control system, gear box transmission system, hydraulic system, run out table, etc. With automatic size adjustment system, users only need to key in required data on the control panel, the roller stands will move in and out to adjust the distance between rollers for roll forming each size. With the servo-flying cutting system, whole line speed can be enhanced to 10-15m/min.
Work Flow And Layout of The Rack RollForming Line
1. Line Direction: from left to right
2. Work Flow Chart: decoiling ---> levelling ---> punching ---> roll forming ---> cutting ---> collecting
Main Technical Specifications
1. Decoiler: 3Ton hydraulic decoiler
2. Levelling unit: 7-roller leveller
3. Punching unit: high speed and high precision punch press or hydraulic punching unit are optional
4. Roll forming steps: 20-26 steps based on customers' profile drawing
5. Shaft material: 40Cr steel solid shafts
7. Main power for roll forming: 15kw*2
8. Width adjustment power: 2.2kw
9. Cutting power: 7.5kw
10. Servo tracking power: 2.9kw Yaskawa motor
11. Material of cutting blade: Cr12Mov, HRC58-62
12. Drive method: electric motor drive by gear box
13. Line speed: 0-15m/min
Final Products For Reference
If you need more machine information, please contact us directly.
Contact Person: Mr. Darren Mao
Tel: +86 186 16927760
Fax: 86-510-8827-9556
