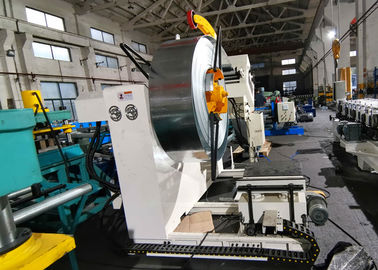

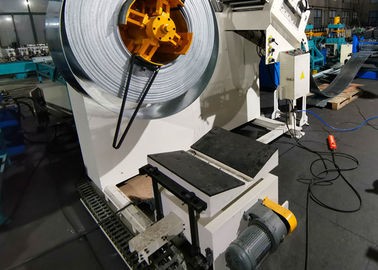

Integrated Design Of Decoiler And Leveller, Applied To Automatic Roll Forming Machine

Integrated Design Of Decoiler And Leveller, Applied To Automatic Roll Forming Machine

    • Integrated Design Of Decoiler And Leveller, Applied To Automatic Roll Forming Machine
    • Integrated Design Of Decoiler And Leveller, Applied To Automatic Roll Forming Machine
    • Integrated Design Of Decoiler And Leveller, Applied To Automatic Roll Forming Machine
    • Integrated Design Of Decoiler And Leveller, Applied To Automatic Roll Forming Machine
  • Integrated Design Of Decoiler And Leveller, Applied To Automatic Roll Forming Machine

    Product Details:

    Place of Origin: CHINA
    Brand Name: BELIEVE INDUSTRY
    Certification: CE
    Model Number: BELI-DECOILER

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Packaging Details: Wrapped with plastic film and fastened inside of the container.
    Delivery Time: 45 days
    Payment Terms: 30% TT in advance, 70% TT or LC after machine check and accept before shipment
    Supply Ability: 45 sets per quarter
    Contact Now
    Detailed Product Description
    Decoiler Capacity: 3000kgs Decoiler Expansion: Electrically Expansion
    Decoiler Car Capacity: 3000kgs Levelling Unit: 7-roller Levelling
    Levelling Power: 3KW Power Supply: 380V, 415V; 50Hz, 60Hz; 3Phase

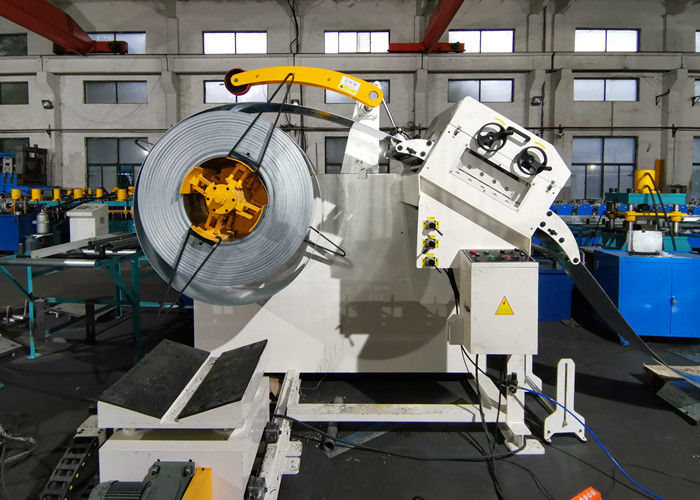

    Integrated Design Of Decoiler And Leveller, Applied To Automatic Roll Forming Machine



    Decoiler

    • Type: single mandrel type decoiler with press arm, brakes
    • Decoiler Loading Capacity: 3000kgs
    • Decoiler Mandrel Expansion And Tension: hydraulic decoiler inside expansion and tension
    • Coil Unwinding: no motor drive
    • Decoiler Mandrel Length: 500mm
    • Coil Inner Diameter: 508mm
    • Max Coil Outer Diameter: 1200mm



    Coil Car

    • Function: easy to carry the coil to the decoiler
    • Type: steel welded structure with 4-wheel for horizontally moving, 2 cylinders for lifting up and down
    • Coil Car Surface: V-shape table for loading the coils, surface is layed with rubber to reduce material wear and tear
    • Coil Car Horizontal Moving: electrically moving in and out through the guide track
    • Loading Capacity: 3000kgs

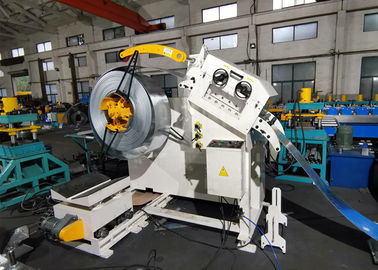

    Integrated Design Of Decoiler And Leveller, Applied To Automatic Roll Forming Machine

    Integrated Decoiler And Leveller Applied To A Scaffold Plank Rollforming Line

    Leveller

    • Type: 7 rollers for levelling the material; up layer 3 rollers and bottom layers 4 layers
    • Upper rollers and bottom rollers pressing: pneumatic pressing the material
    • Levelling Material Thickness: 0.3-3.2mm
    • Levelling Power: 3kw electrically levelling
    • Material Guiding: vertical rollers which can be adjusted according to material width





    What is the advantage of this integrated decoiler and leveller?

    A full metal roll forming line ususally consists of decoiler, levelling unit, punching unit, roll forming mill, cutting unit, exit receiving tables, etc. Some small lines such as stud and track machines is at least 10 meters long, while some lines such as rack and beam rollforming lines, cable tray production lines is more than 30 meters long. For customers who have limited factory space, Believe Industry Company optimizes the machine solution with integrated design of decoiler and leveller, loop pit, etc.





    This integrated decoiler and leveller is applied to:

    • Steel Door Frame Rollforming Line
    • Storage Rack Upright Rollformer
    • Cable Tray Roll Forming Machine
    • Strut Channel Roll Forming Line
    • Scaffold Plank Production Line



    For more information, please contact Believe Industry Company now.
