Place of Origin: | CHINA |
Brand Name: | Believe Industry Company |
Certification: | CE |
Model Number: | 3Ton Manual Decoiler |
Minimum Order Quantity: | 1 set |
---|---|
Packaging Details: | Wrapped With Plastic Film |
Delivery Time: | 15 to 20 days |
Supply Ability: | 50 sets per month |
Capacity: | 3000kg | Decoiler Mandrel Expansion: | Manual Adjust |
---|---|---|---|
Decoiling: | Non Power Offered | Motor Power: | 3kw |
High Light: | roll former parts,roll former accessories |

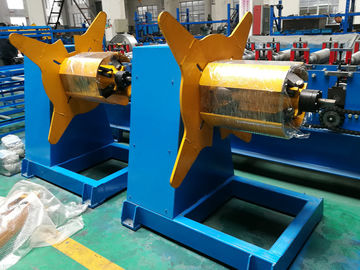

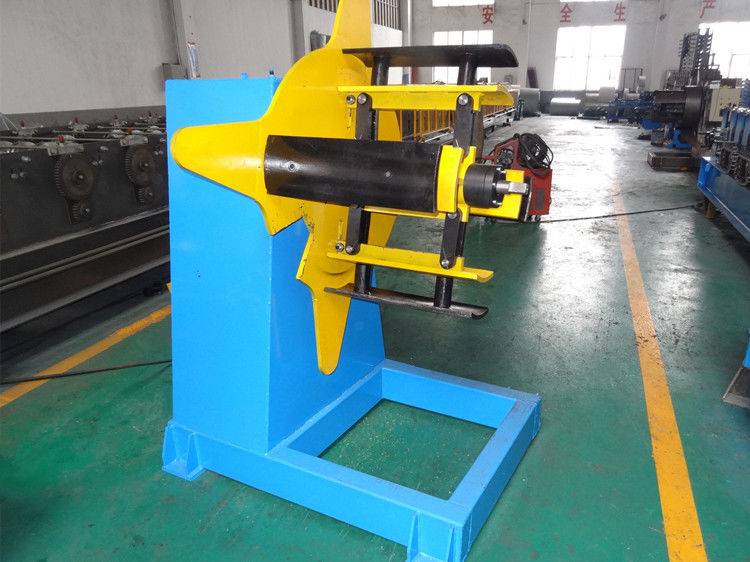

3Ton decoiler is used to hold and fasten steel coils(cardon steel coils, galvanized steel coils, ppgi coils, etc). It is always designed as an important part for light steel structure roll forming machine, roller shutter slat roll forming line, downpipe and gutter forming machine and so on.
Manual decoiler is an economical choice for many clients with limit budget. Manual type means no power supply to decoiler mandrel expansion and tension, and also no motor power supply to decoiling. However, when clients need high production speed and easy operation, we have 3Ton Electric Decoiler and 3Ton Hydraulic Decoiler as an option.
^ Single Arm Decoiler ^ Coil Weight Less Than 3000KG ^ Normal Machine Speed ^ Economical Choice |
Main Component ^ U-beam steel and steel plate welded structure ^ Shaft ^ Expansion And Tension Drum(Device) |
1 | Decoiler Mandrel Expansion And Tension | Manual expansion and tension |
2 | Decoiling Type | Unpowered |
3 | Expansion Range | 480-520mm |
4 | Coil I.D | 508mm |
5 | Coil O.D | Max 1200mm according to coil width |
6 | Coil Width | Max 500mm |
7 | Capacity | 3000kg |
