150-600mm Supermarket Shelf Panel Roll Forming Machine

150-600mm Supermarket Shelf Panel Roll Forming Machine

Description

Believe Industry Company is dedicated to supplying roll forming solutions for various industries to meet the need of production. For storage industries, we design and build machines for producing upright racks, horizontal beams, c channel brackets, supermarket shelf panels, etc.

According to users' production requirement, we have different machine designs. Such as machine for producing only one size and machine which can be adjusted automatically or manually for roll forming different sizes. For clients who are going to start their enterprise or clients who want to enlarge their production, we will offer them with best machine solutions such as economical machine design and high speed machine design.

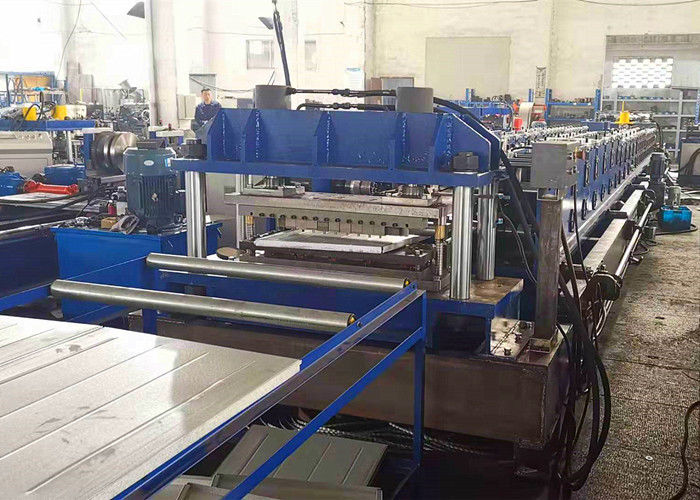

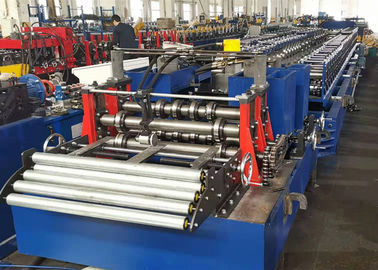

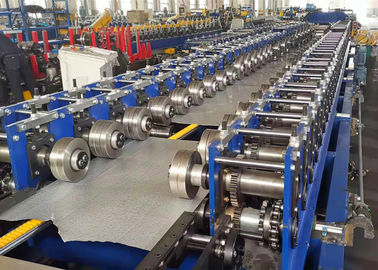

This 150-600mm supermarket shelf panel roll forming line consists of 5ton hydraulic decoiler, levelling unit, punching unit with servo feeder, roll forming unit, cutting and bending unit, electric control system and hydraulic system, etc. Only one rollforming line can meet most of the production need for supermarket rack industry.

Machine Features

• With automatic PLC control system, whole line is easy to operate with .
• Both sides of the rollers can be automatically adjusted for producing each shelf panel size.
• Great strength and stability with H beam steel welded machine base and double-wall-panel roller stands.
• Famous brand electric and hydraulic elements make the machine work well.
• Good quality of the finished products and exact cutting length
