Horizontal C Section Box Beam Roll Forming Line With Beam Seaming Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	BELIEVE INDUSTRY
Certification:	CE
Model Number:	BELI-STORAGE

Payment & Shipping Terms:

Packaging Details:	Nude packing
Delivery Time:	60 to 75 days
Payment Terms:	30% TT in advance, 70% TT before shipment
Supply Ability:	45 sets per quarter

Contact Now

Detailed Product Description

Function:	Be Capable For Producing Beams With Various Dimensions	Control System:	PLC Control System
Drive System:	Electrically Chain Drive	Cutting System:	Hydraulically Powered Cutting
Machine Speed:	15-20m/min	Power Supply:	380V/50Hz/3Ph

Horizontal C Section Box Beam Roll Forming Line With Beam Seaming Machine

Brief Description

Believe Industry Company has a series of roll forming machines for producing products used for warehouse storage industry. This beam roll forming line can produce horizontal box beams with widths from 80mm to 160mm.

BELI Beam Production Line Is Capable Of Making

Beam Height (mm)	Beam Width (mm)	Material Thickness (mm)	Beam Profile
50/Customized	80/100//120/140/160/Customized	1.5-1.8/Customized

Most Important Parts Included In A Beam Production Line

Decoiler

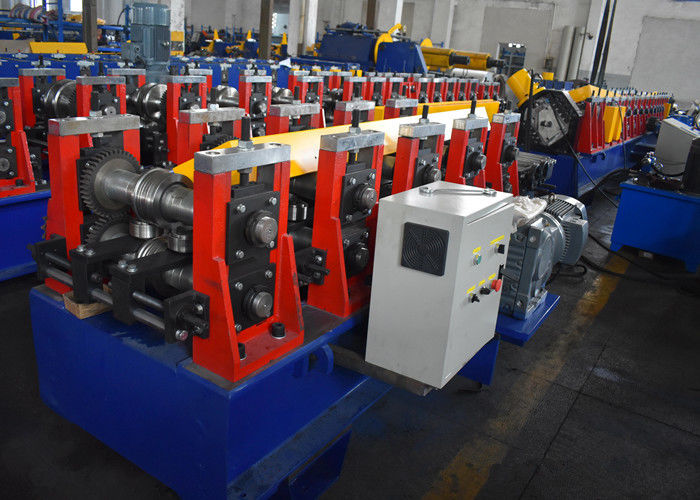

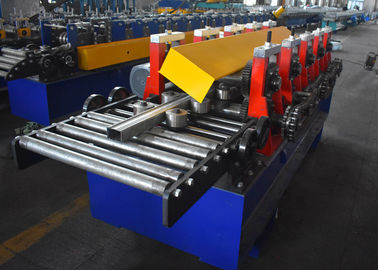

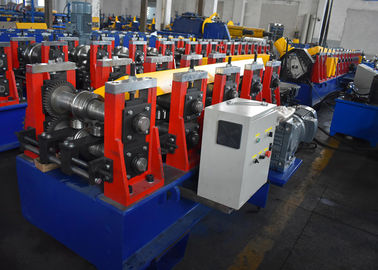

Roll Forming Machine
Receiving Table

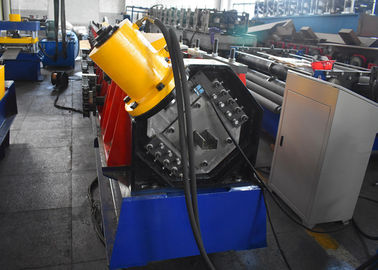

Seaming Machine
Control Cabinet
Hydraulic Station

Working Process: coil unwinding-->feeding and guiding-->roll forming-->cutting-->seaming

Machine Features

H beam steel welded machine base with cast iron roller stands bolted on to form main machine structure
Roll forming speed reaches up to max 20 meters per minute
Electrically driven by chain and sprocket
Hydraulic cutoff, stop to cut type, whole line stops when cutting
Semi-automatic production line, users need to put 2 c sections as a box profile manually, then feed it in the seaming machine
Be capable of producing beams with various dimensions by manually adjust the spacers between rollers

Final Product For Reference

Horizontal C Section Box Beam Roll Forming Line With Beam Seaming Machine
